KRB 11 Radius Bender - Manual Revisions

#11 Radius Bender
#11 Radius Bender
www.krbmachinery.com
54
V1.12.09.21

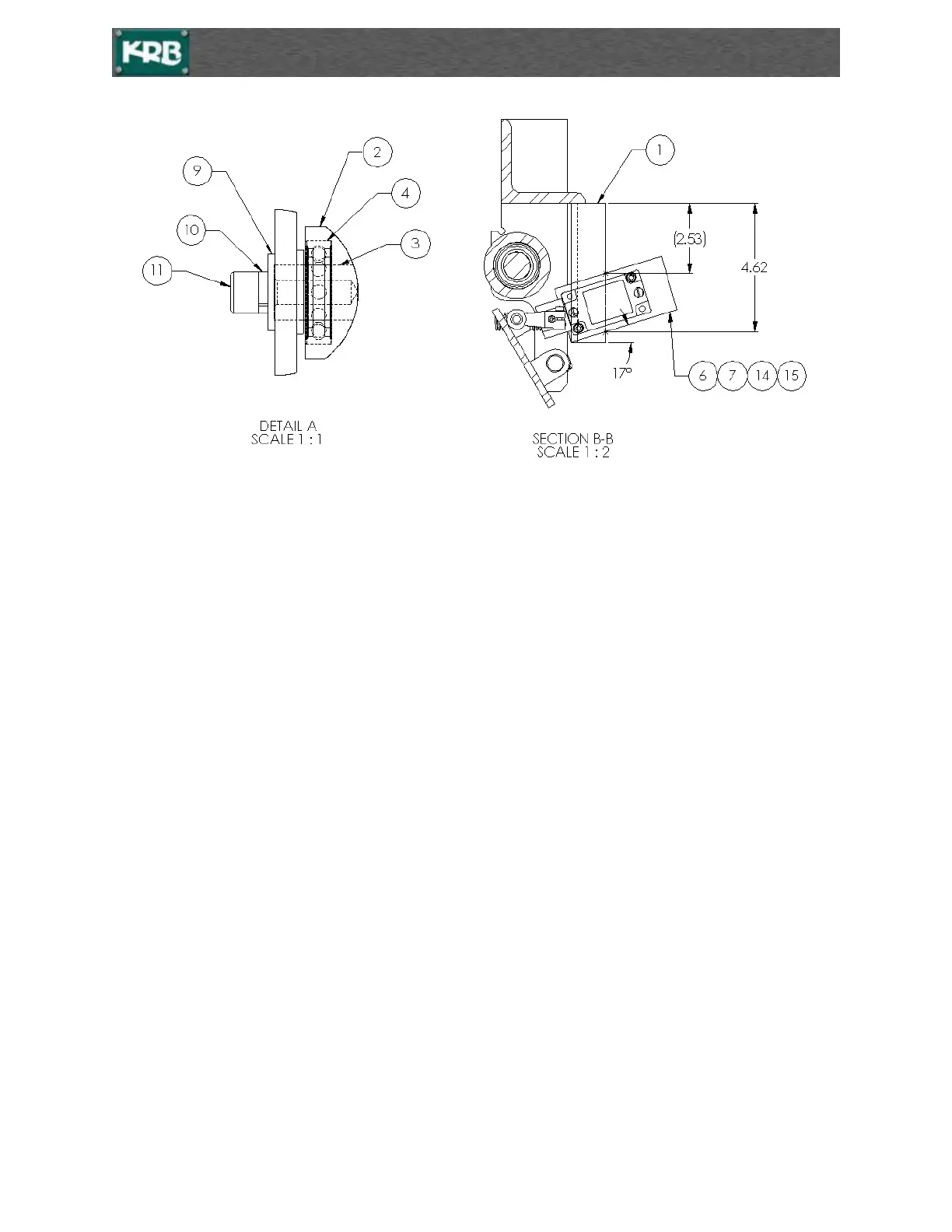

16705-0069 Parts List
ITEM NO.
QTY.
PART NUMBER
DESCRIPTION
1
1
16705-0070
ROLLER RAMP MOUNTING WELDMENT
2
1
16705-0077
SINGLE ROLLER
3
1
16705-0078
SINGLE ROLLER SHAFT
4
2
P-1020-273
BEARING
5
1
16705-0074
ROLLER RAMP WELDMENT
6
1
D-16752-03
LIMIT SWITCH MOUNTING PLATE
7
1
P-3003-146
SAFETY LIMIT SWITCH W/ ROLLER
8
2
P-1028-382
COMPRESSION SPRING
9
2
P-1035-560
WAS,FLAT,0.5 INCH,USS,BZ,G8
10
2
P-1035-563
HI COLLAR LOCK WASHER 1/2"
11
2
P-1035-594
SOC HD C.S. 1/2-13 X 1 LG.
12
3
P-1026-362
CLEVIS PIN, 1/2" DIA. X 1"
13
3
P-1034-021
COTTER PIN 1/8" X 1" LG
14
2
P-1035-040
SOC HD C.S. #10-32 X 1-1/2" LG.
15
2
P-1035-184
FLAT WASHER #10 STAINLESS STEEL
16
3
P-1035-561
FLAT WASHER 1/2" SAE GR 8
