Kreg Jig HD - Pocket-Hole Placement Guide

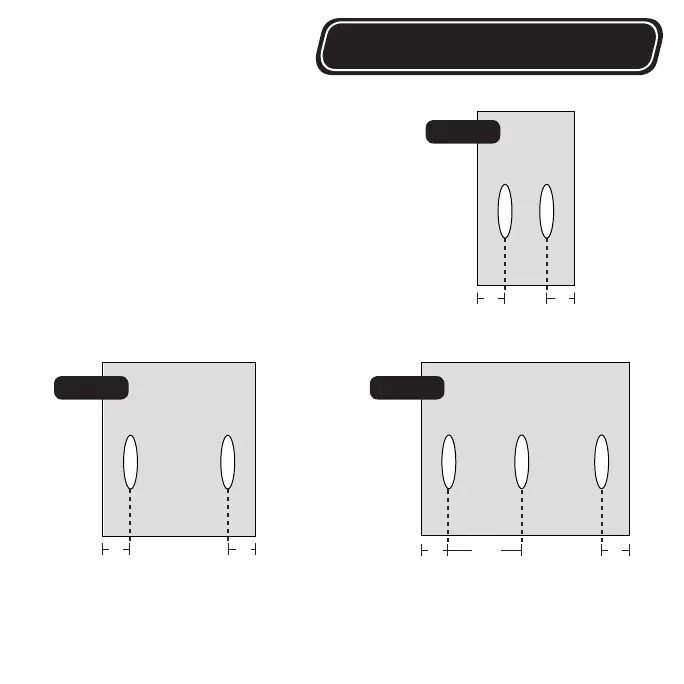

Pocket-Hole Placement
3½" [89mm]-wide material
1" 1"
1"1"
2-5/8"
1" 1"
For strong joints, space your pocket holes
evenly across the workpiece.
7¼" [184mm]-wide material
5½" [140mm]-wide material
2x4
2x6 2x8
