Kreg Jig K5 User Manual

www.kregtool.com

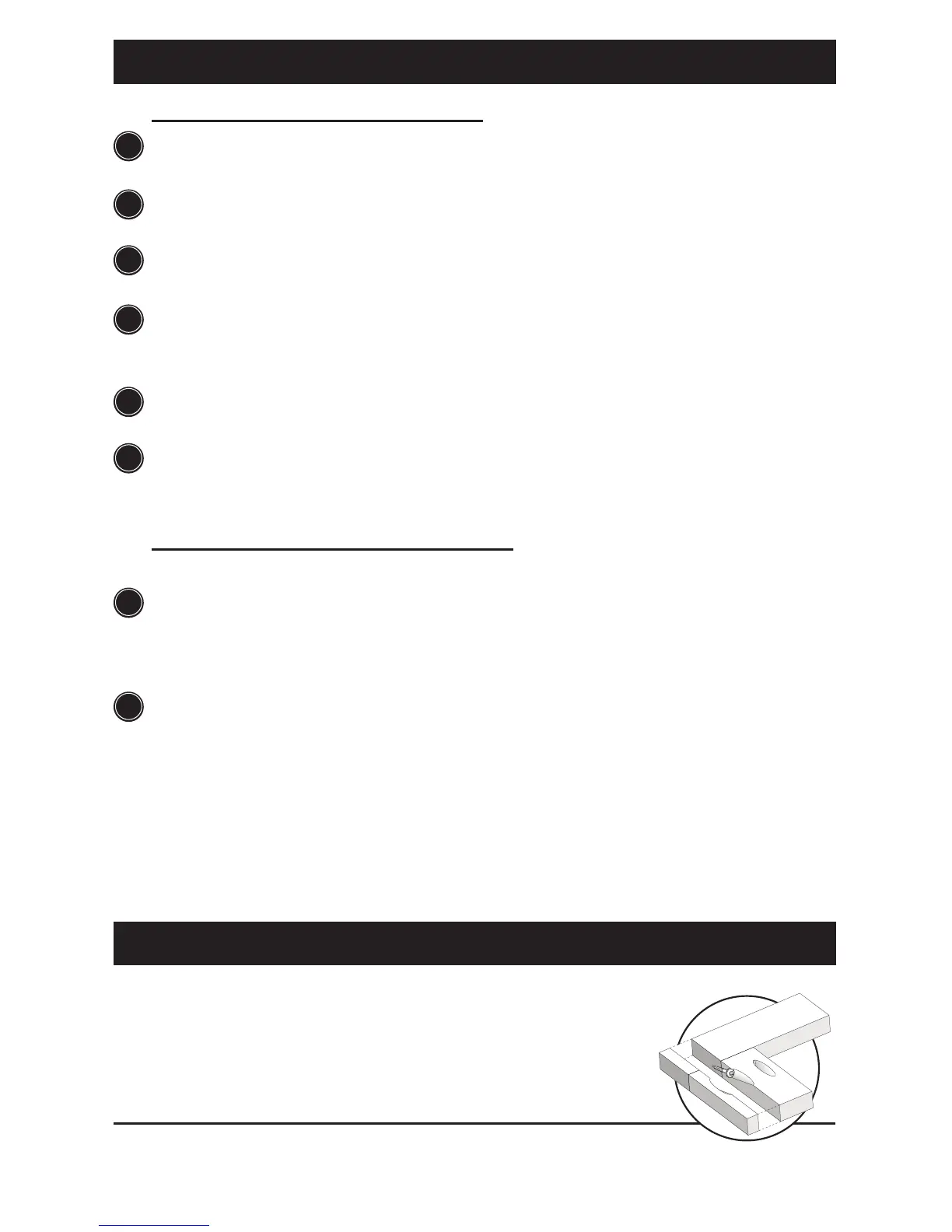

K5 and K5 Master System Parts
Vacuum port
 Acceptsa1¼"(32mm)shopvacuumhoseforefcientchipremoval,swivelssidetoside
Extension Wings
Provide support for wide workpieces and storage for bits and accessories
Screw-length selection guide
Apply this self-adhesive label to the inside of an extension lid for easy reference
Spacer block
In repair applications, positions the drill guide for drilling pocket holes in
¾" (19 mm)-thick material
Pocket-screw sample pack
 Contains10eachofthevemostoftenusedscrews
Pocket-hole plug sample pack
 Containsvepaint-gradewoodplugs
Additional Master System Parts
The K5 Master System includes the following parts
Portable base
Accepts Micro, Standard, and HD drill guide blocks. Useful for large panels or
 assembliesthatwouldbedifculttoclampintoabench-mountedjig.Built-incams 
secure the portable base to your Kreg clamp.
 3"WoodProjectClampwithAutomaxx
®
Provides fast and secure clamping when assembling a pocket-screwed joint. Set
the desired pressure and this 3"-reach clamp automatically adjusts to any
material thickness up to 3" (76mm).
Parts
R
S
T
U
V
W
X
Y
Tocreatestrongjoints,you’llsetyourjigtomatchthe
thickness of the workpiece and the length of the screw.
The Kreg Jig
®
makesthiseasy,injustfoursimplesteps:
Using the Kreg Jig
®
K5 and K5 Master System
4

Kreg Jig K5 Specifications

General

Product Name	Kreg Jig K5
Category	Power Tool
Type	Pocket Hole Jig
Material Support	Yes
Dust Collection	Yes
Storage	Yes, with storage wings
Material	Nylon, steel, glass-filled nylon
Thickness Settings	1/2" to 1-1/2"
Drill Guide Compatibility	Kreg drill bits
Included Components	drill bit
Clamping Method	Over-center toggle clamp
Clamp Type	Over-center toggle clamp
