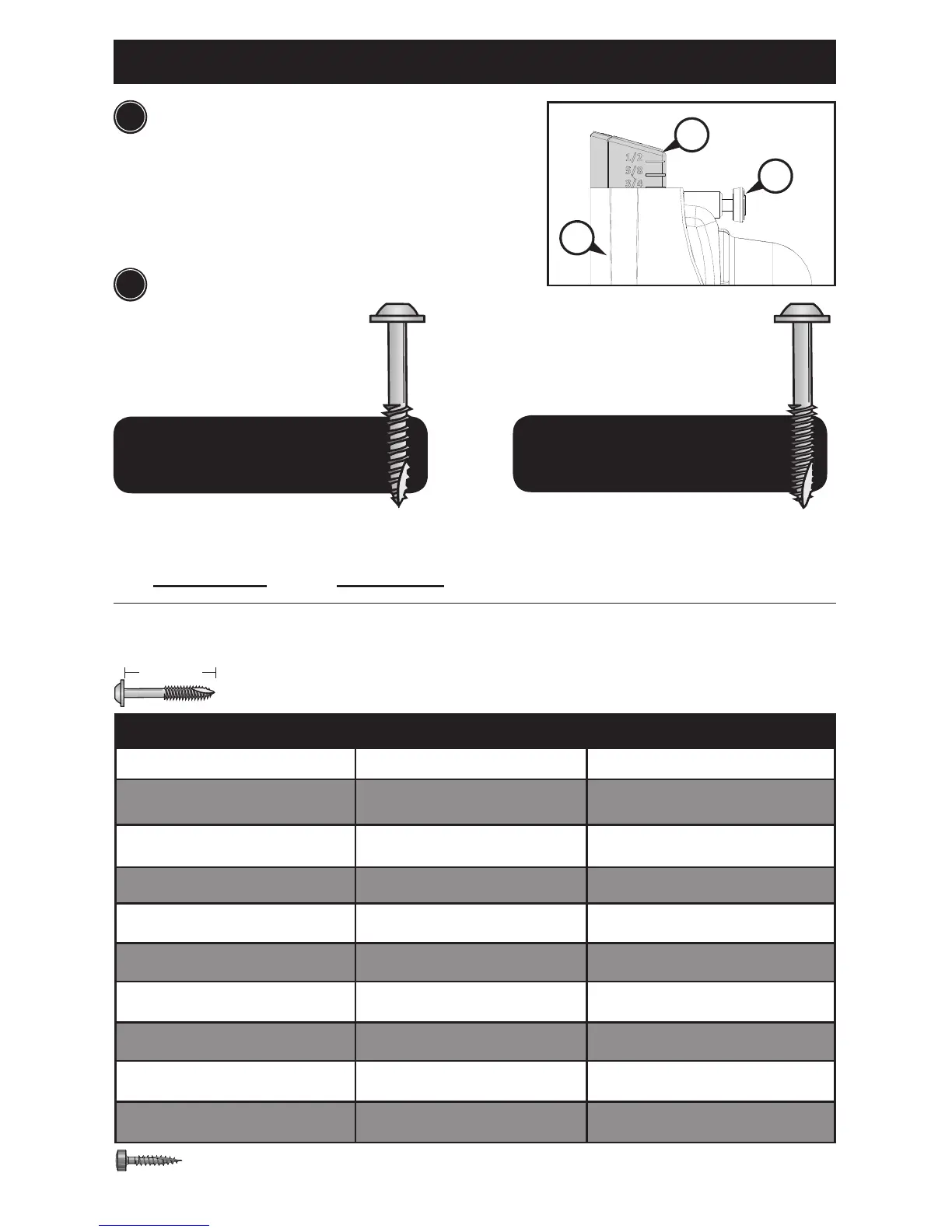

Using the Kreg Jig
®
K5 and K5 Master System
Set the Drill Guide
For a strong joint, the screw should exit close to the center of
the workpiece. To adjust the pocket-hole position, retract the
spring-loaded drill-guide locking pin (H). Then raise or lower
the drill guide (G) until the mark on the side of the guide that
matches the thickness of the workpiece is even with the top
oftheguidesocket(B).Releasethelockingpin.
1
G
B
H
Fine Thread
Because the smaller diameter and thread
pitch of our #7 ne-thread screws reduce
the chance of splitting the material, we
recommend them for hardwoods.
Use in woods such as:
• Ash • Oak • Maple • Walnut • Hickory
• Cherry • Mahogany • Birch
2
All Kreg pocket screws feature a deep square drive that improves driver engagement and reduces the
possibility of cam-out. The self-tapping auger point eliminates the need to drill a pilot hole.
Coarse Thread
Due to the large diameter and thread pitch,
our #8 coarse-thread screws offer a strong
hold in softwoods and composite materials.
Use in woods such as:
• Pine • Cedar • Basswood • Poplar
• Plywood • Melamine • Particle Board
Screw Selection / Kreg Jig
®
Setting Chart
Material Thickness Screw Length Kreg Jig
®
Setting
1
⁄2" [13 mm]*
1" [25 mm]**
1
⁄2" Mark
5
⁄8" [16 mm] 1" [25 mm]
5
⁄8" Mark
3
⁄4" [19 mm] 1
1
⁄4" [32 mm]
3
⁄4” Mark
7
⁄8" [22 mm] 1
1
⁄2" [38 mm]
7
⁄8" Mark
1" [25 mm] 1
1
⁄2" [38 mm] 1” Mark
1
1
⁄8" [29 mm] 1
1
⁄2" [38 mm] 1
1
⁄8” Mark
1
1
⁄4" [32 mm] 2" [51 mm] 1
1
⁄4" Mark
1
3
⁄8" [35 mm] 2" [51 mm] 1
3
⁄8" Mark
1
1
⁄2" [38 mm] 2
1
⁄2" [64 mm] 1
1
⁄2" Mark
Kreg offers a complete line of pocket screws for every workpiece thickness and type. Use this chart to select the
correct screw length. All Kreg pocket screws are available at your Kreg dealer or online at kregtool.com.
Choose a Screw
Your KREGprojects demand KREG Screws. Learn why at kregtool.com/kregscrews
5
Note: Screw length is measured from bottom of the head to the tip of the screw.
1
1
⁄4" (32mm)
**When using optional Micro-Pocket™ Drill Guide,
3
⁄4″ screws
are recommended for
1
⁄2″ material. See Micro Owner’s manual
*Panhead pocket screw recommended.
