Features

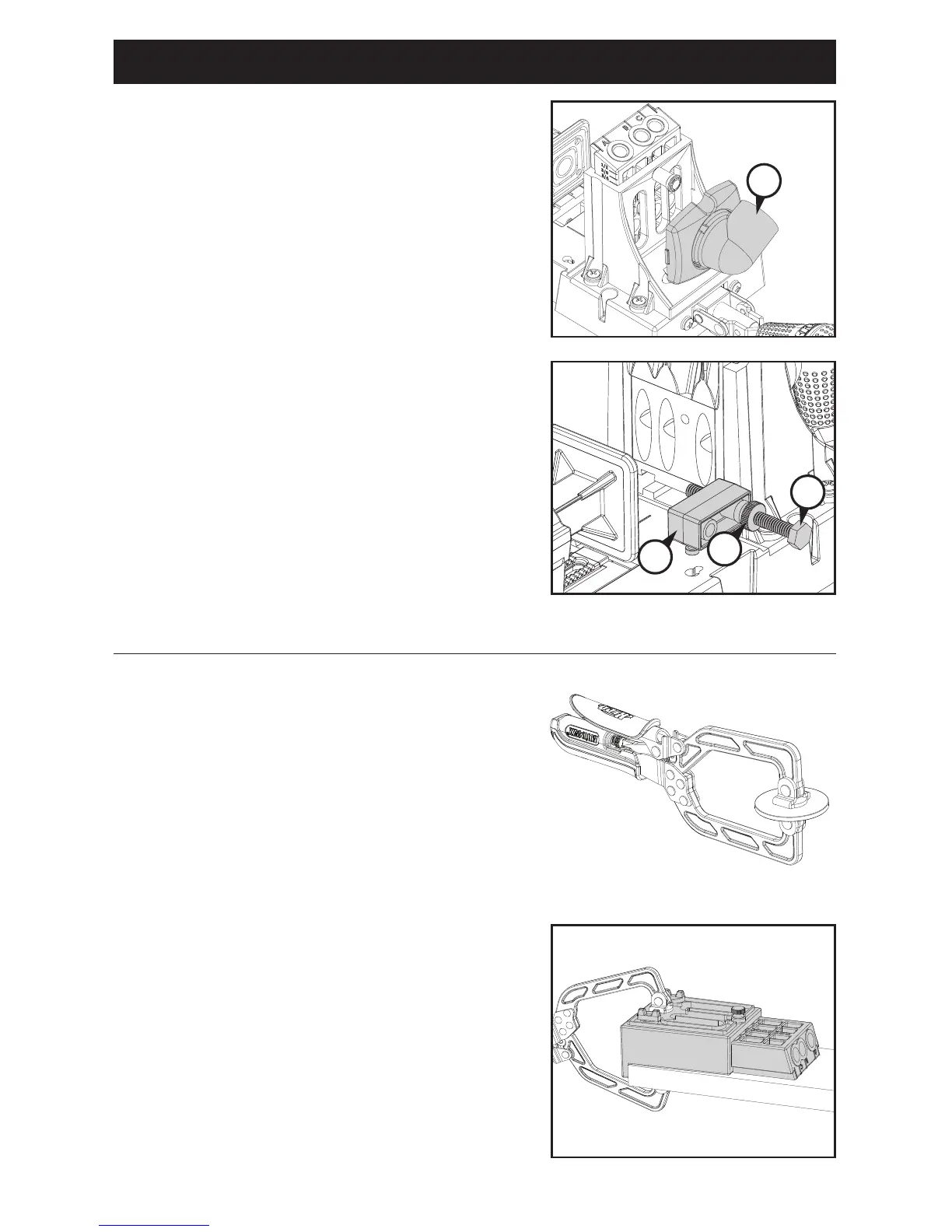

Vacuum Port
Thischip-collectionattachment(R)snapsintoplaceon
the back of the drill guide socket. The port accepts any
standard 1¼" (32mm) vacuum hose and conveniently
swivels from side to side. In addition to helping keep your
workareaclean,efcientchipremovalspeedsdrillingtime
and reduces heat build-up, extending the life of your drill bit.
R
Q
N
P
Kreg Jig
®
K5 Master System Additional Features
Workpiece Stop
For repetitive pocket-hole drilling operations, the stop (N)
snaps into keyhole slots in the base. To install, drop the
pegs on the bottom of the stop into the large end of the
keyhole slots and slide the stop toward the front of the jig.
For precise pocket-hole placement, press the steel nut (O)
into one of the hexagonal recesses in the stop. Thread
the knurled nut (P) onto the nylon bolt (Q) and thread the
bolt into the nut from the opposite side of the stop. The nut
and bolt work together to provide easy adjustment and the
knurled nut locks the bolt in position.
3" Wood Project Clamp with Automaxx
®
These 3" (76mm)-reach clamps automatically adjust
to workpiece thickness up to 3" (76mm). To keep joints
perfectly aligned when driving pocket screws, clamp the
workpiecestoaflatsurface,centeringtheclamppadover
the joint line. Adjust the clamp to apply enough pressure to
keeptheworkpiecesflushandstablebutnotsotightthat
clampingandunclampingaredifcult.
Portable Base
Use this base for large panels or assemblies that would
bedifculttoclampintoabench-mountedjig.Remove
the drill guide from the drill-guide socket and slide it
into the portable base. Align the mark on the side of the
drill guide that matches the thickness of the workpiece
with the top edge of the portable base. Screw in the
locking pin. The base also accepts Micro and HD drill
guideblocks.Built-incamssecuretheportablebaseto
a Kreg clamp.
7
