22

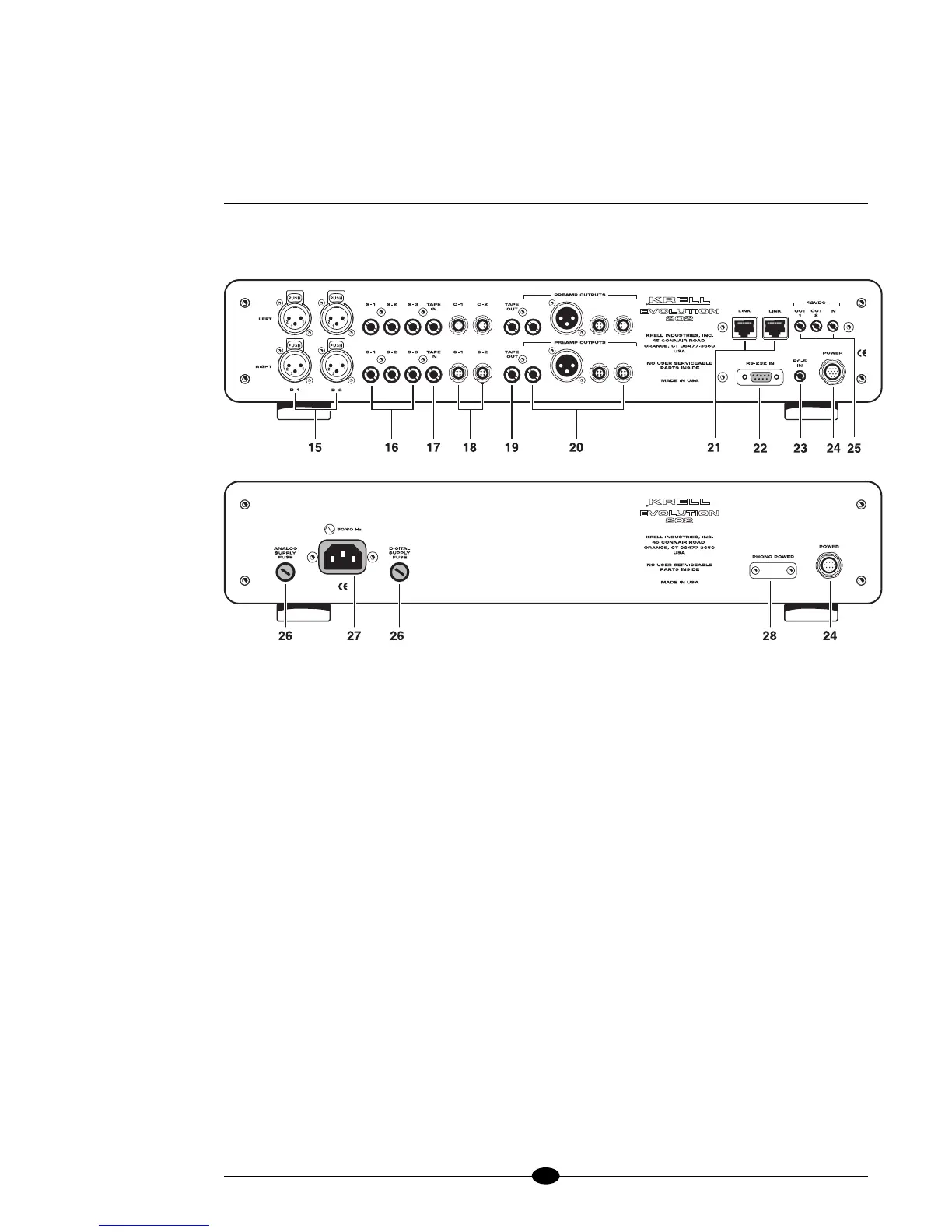

Figure 3 Evolution 202 Preamplifier and Power Supply Back Panels
15 Balanced Inputs: B-1, B-2
16 Single-ended Inputs: S-1, S-2, S-3
17 Tape Input
18 CAST Inputs: C-1, C-2
19 T
ape Output
20 Main Outputs:
Single-ended Main Output
Balanced Main Output
CAST Outputs
21 CAN Link In/Out
22 RS-232 Port
23 RC-5 In
24
DC Power Connector
25 12 VDC In/Out
26 Analog and Digital Supply Fuses
27
IEC Power Cor
d Receptacle
28 Phono Power Port
(
SECTION FOUR: Anatomy of an Evolution 202 continued)
Inputs
Outputs
Remote
Configurations
Phono
Power
