Status September 2018 Page 5 © Krick Modelltechnik, Knittlingen, Germany

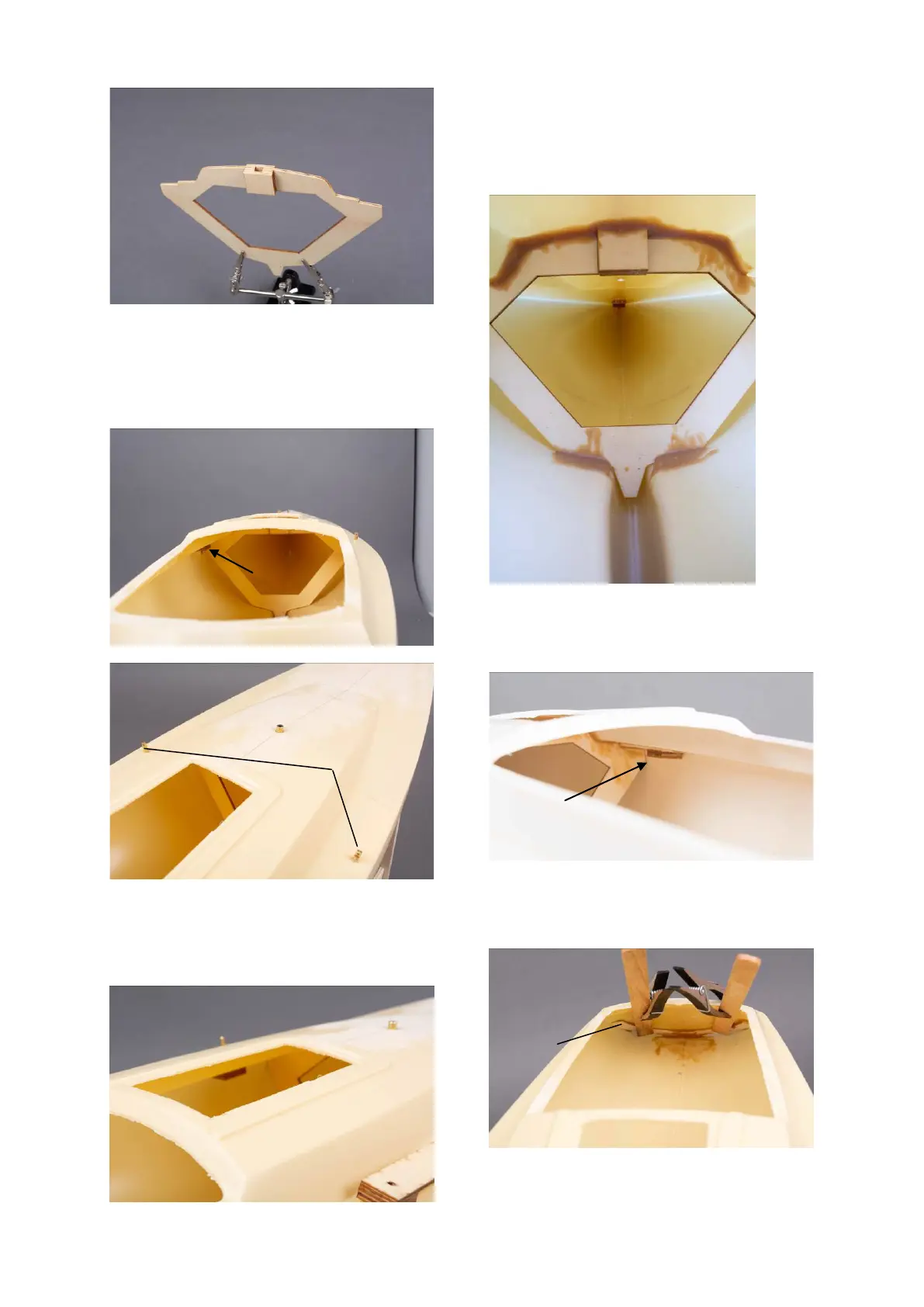

Fig. main bulkhead glued
Now the bulkhead can be fitted into the hull.
Push the bulkhead into the hull until it is verti-
cally under the hole for the mast foot. To
check, insert the mast foot through the hole.
Fig. reinforcement boards
Now push the reinforcement plates for the
shroud fastening into the slots in the frame and
check the position by screwing in the eyebolts,
part 1.14.
If everything fits, fix the frame with super glue
in some places. Then glue the frame with Sta-
bilit Express. Make sure that no glue gets into
the side trays for the reinforcement boards of
the walls.
Fig. frame glued in
In the next step glue in the two reinforcement
boards for the shrouds.
Fig. reinforcement boards
Fit the rear hull reinforcement 1.15 and glue
with Stabilit Express.
Fig. rear hull reinforcement
To press on the hull reinforcement, wooden
strips can extend the clamps.
