Optional, installation of the drive set
If you would like to have an electric drive in
your Comtesse, here are the installation in-
structions for the optional drive set, which is
not included in the kit.

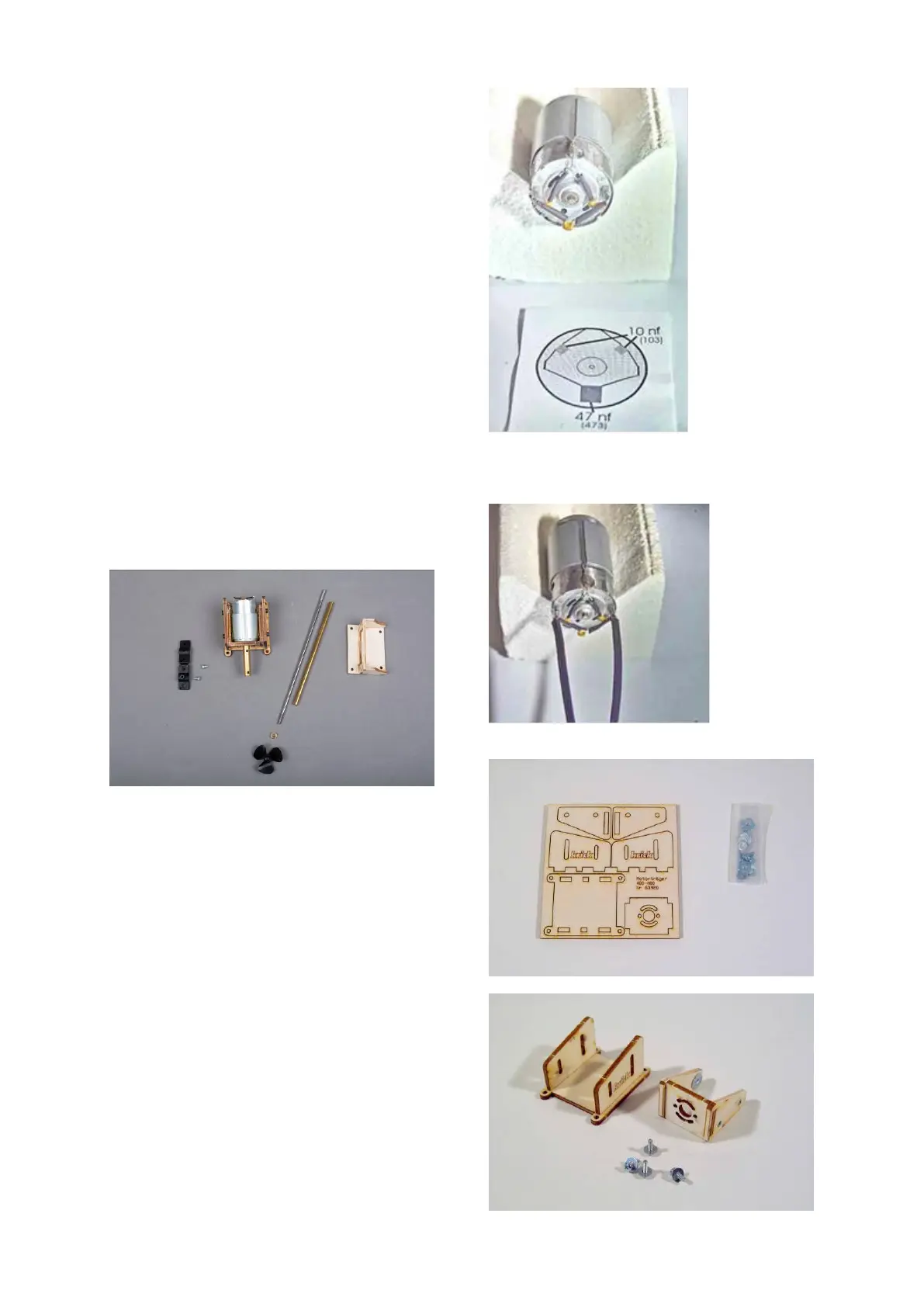

Fig. Components of the drive set
First solder the interference suppression
capacitors to the motor so that both capacitors
103 (value 10 nf) run from the terminal lug to
the motor housing. Grind the motor housing
very well at the soldering point. Solder the third
capacitor 473 (value 47 nf) between the two
terminal lugs. Insulate the capacitor legs with
shrink tubing.
Fig. Motor interference suppression
Next solder on the connecting cables.
Assemble the engine mount.
Fig. engine mount kit
Fig. Motor mount glued
