Status September 2018 Page 23 © Krick Modelltechnik, Knittlingen, Germany

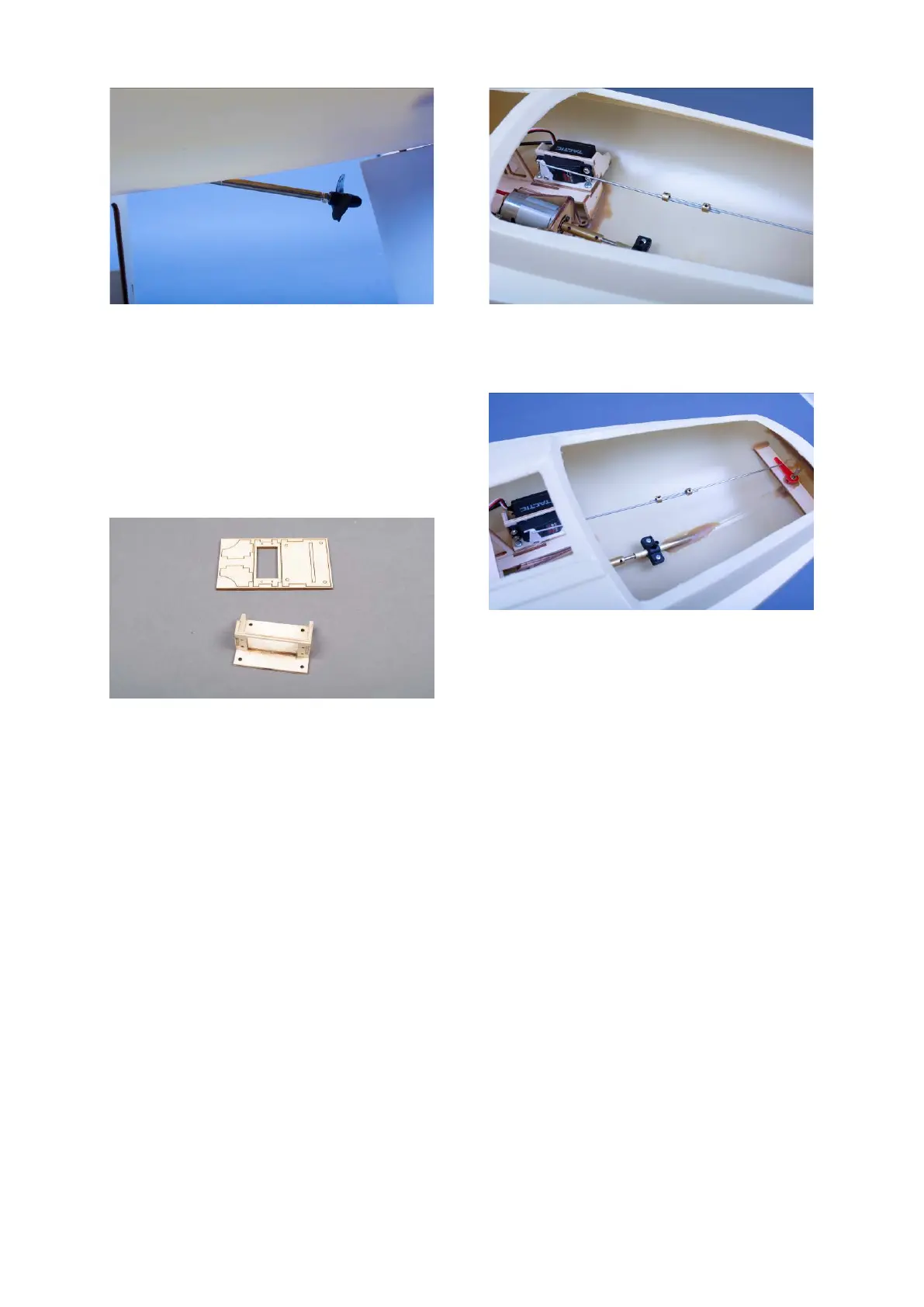

Fig. drive
Finally glue in the RC board.
At the position of the motor the servo was re-
moved before. Therefore now a new mounting
for the servo must be placed.
Now the installation of the drive is finished.
Now the bracket and the rudder servo can be
installed.
Fig. laser board and finished servo mount
Place the servo in the bracket and position
both on the side of the RC board. Fasten the
bracket to the RC board with 2 screws A-16.
Fig. servo mount with servo
Hook in parts 2.7 and 3.12 and connect them
with the two set collars.
Fig. connection servo and rudder
