Operation
38
Pos: 20.16 /BA/Be dienung /Eas yCut/Weiste-Dreie ck/Abbau Weist e-Dreieck Bild EC 28/32 @ 1 0\mod_12217 36766364_78.doc x @ 136752 @ @ 1
4
3
2
1

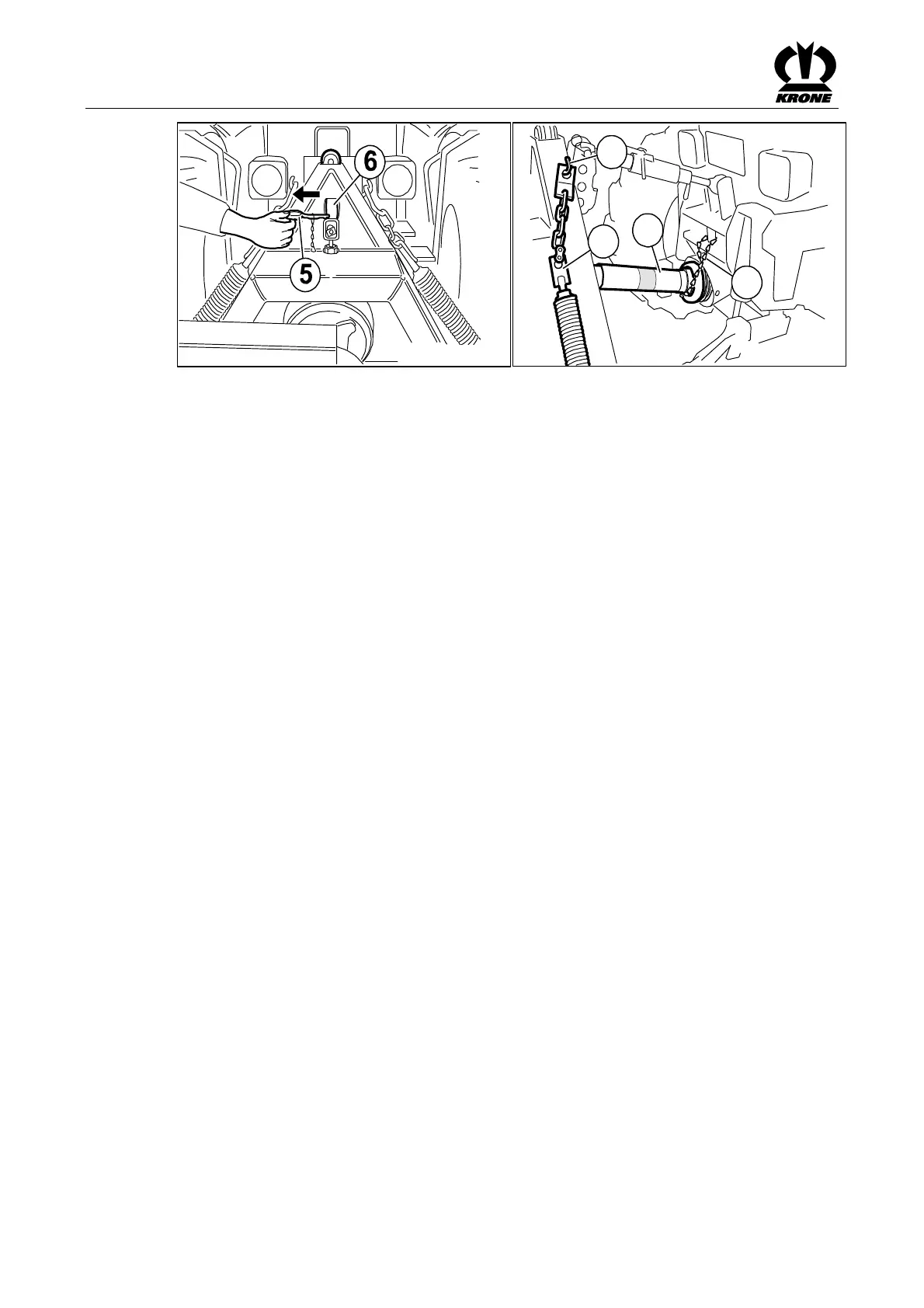

Fig. 17
Pos: 20.17 /BA/Be dienung /Eas yCut/Weiste-Dreie ck/Abbau Weist e-Dreieck Te xtEC 28/32 28/3 2CV @ 10\m od_122173670517 6_78.docx @ 136733 @ 1 @ 1
• Bring the front mowing unit into the transport position.
• Remove compensation spring (2) and hang it on hook (1).
• Lower front-mounted disc mower.
• Pull spring cotter pin (5) out of the Weiste triangle.
• Release the interlock of the holding triangle.
• Loosen the guard cloth.
• Remove the retaining chain (4) of the PTO shaft (3).
• Remove the PTO shaft (3) from the tractor side and place on the PTO shaft bracket
• Carefully lower the front hydraulics.
• Drive carefully out of the holder of the front-mounted disc mower.
