Maintenance
54
Pos: 24.52.1 /Üb erschriften/Üb erschriften 2/K-O/ Kontrolle der Mä hklingen un dM esserhalterung @ 0\mod_11972 65641329_78. docx @ 16323 @ 32 @ 1
10.11 Checking the Cutter Blades and Blade Holder
Pos: 24.52.2 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- F ehlende u nd beschädigt eMä hklingen un dM ähklingenhalt erungen @ 0\ mod_11972657 22813_78.doc x@ 16342 @ @ 1
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and check retaining bolts every time you
change the blades or after contact with foreign objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 24.52.3 /Üb erschriften/Üb erschriften 3/K-O/M ähklingen @ 0\mod_1197265 959110_78.d ocx @ 16361 @ 3 @ 1
10.11.1 Cutter Blades
Pos: 24.52.4 /B A/Wartung/Mäh werke/Die Bohrung derM ähklingen kann sich durc h Verschleiß auf weiten. @ 10\m od_122104898 2715_78.docx @ 131675 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 24.52.5 /B A/Sicherheit/Gefa hrenhinweise/Mä hwerke/Gef ahr- Z ug eringe M aterialstärke and en Mähklinge n_neu @ 3\mod _12047271678 98_78.docx @ 72588 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.
• The cutter blades must be replaced at the latest when the wear limit is reached (see
mark (1) on the cutter blade; dimension a less than or equal to 7 mm).
Pos: 24.52.6 /B A/Wartung/Mäh werke/Mähklingen beidseitig verwe nbar_neu @ 3\ mod_120472 8012601_78.doc x@ 72608 @ 3 @ 1
a
EC 253 0
1

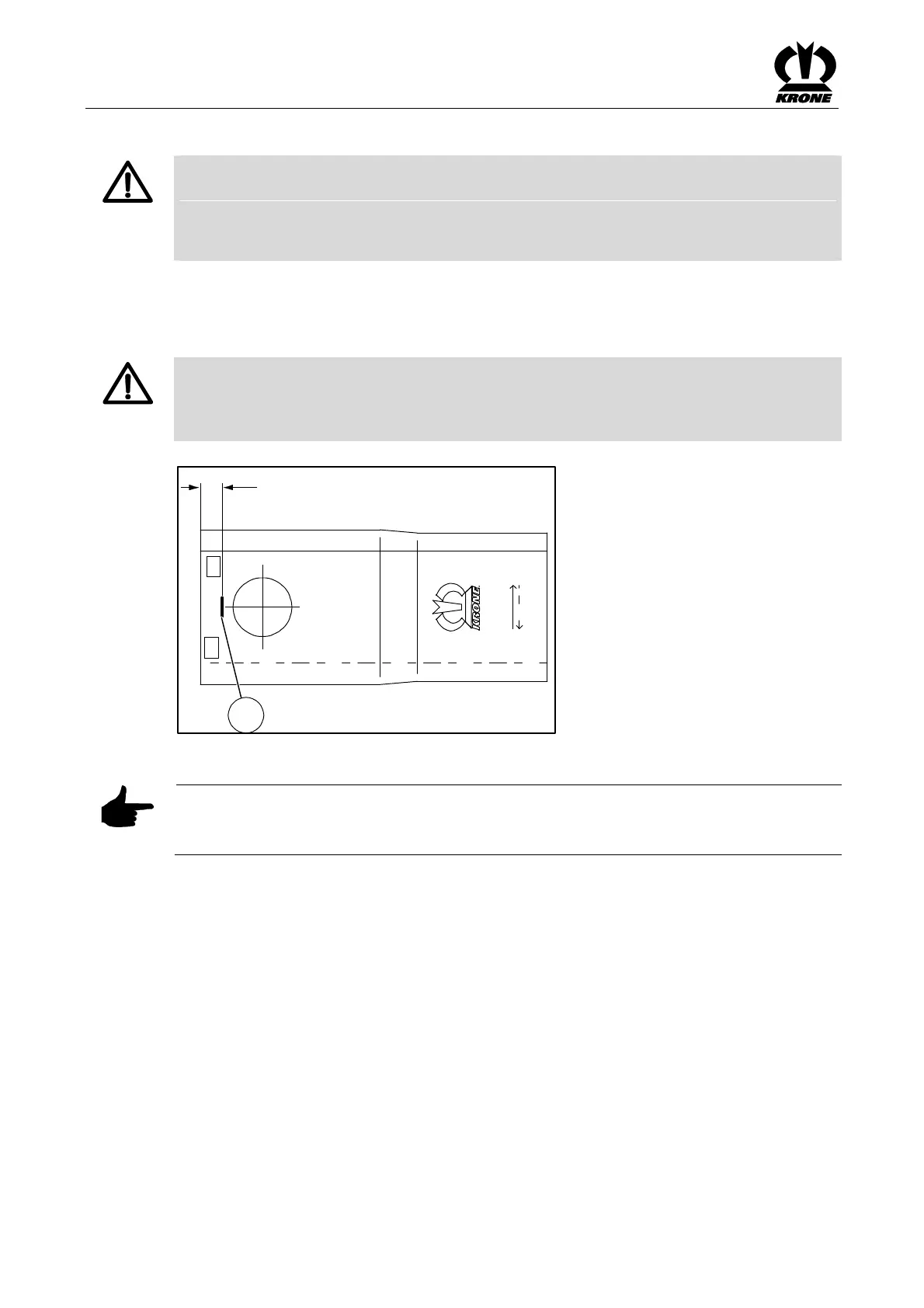

Fig. 29
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
