Maintenance
49
Pos: 24.32.1 /Üb erschriften/Üb erschriften 2/U-Z/ Winkelgetriebe @ 0\mod_1197 005918299_7 8.docx @ 15435 @ 2 @ 1
10.7 Angular gearbox
Pos: 24.32.2 /A bkürzungen /Abkürz ungen sprac hneutral/Eas yCut/EasyCut F 2 80 M / EasyCut F 3 20 M / EasyC ut F 360 M @ 103\mod_1332 236742140_0.d ocx @ 941066 @ @ 1
(EasyCut F 280 M / EasyCut F 320 M/ EasyCut F 360 M)
Pos: 24.32.3 /B A/Wartung/Ölkontr olle_Wechsel/M ähwerke/Bild Winkelgetrieb eEC F 280 M / 320 M / 360 M @ 103\ mod_1332236 600707_78.doc x @ 941037 @ @1
EC-436-0
1
2

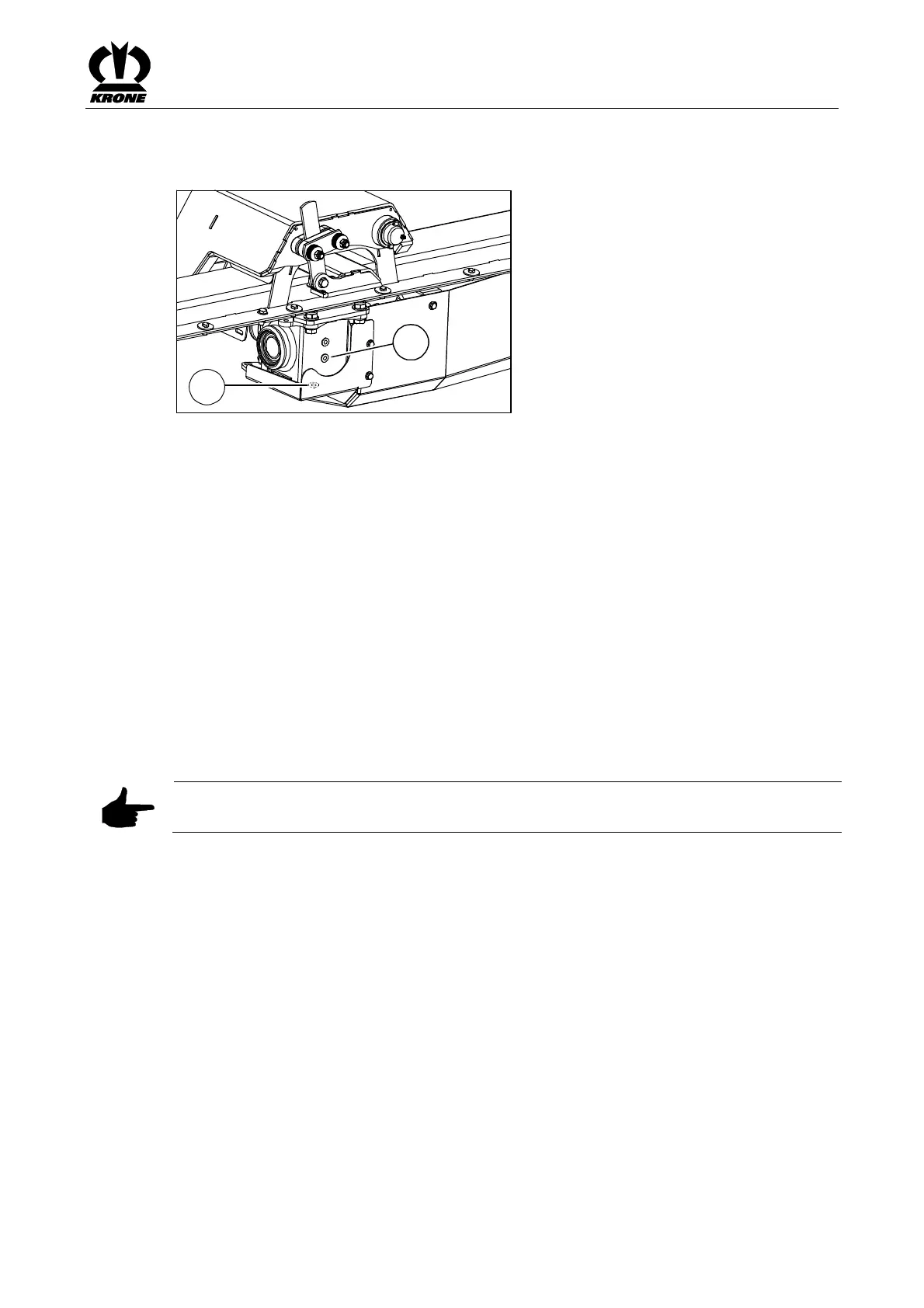

Fig. 24
Pos: 24.32.4 /B A/Wartung/Ölkontr olle_Wechsel/Öl kontrolle_ALT Ölkontrolle K ontrollschraube ( 2) @ 34\mod_ 12560431749 71_78.docx @ 32 5520 @ @ 1
Oil level check:
For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
Unscrew the inspection screw (2).
The oil level must reach up to the control hole.
If necessary, top up the oil (SAE 90)
Pos: 24.32.5 /B A/Wartung/Ölkontr olle_Wechsel/Öl wechsel_A LTÖlwechsel Versi on5 @ 9\mo d_122104705204 3_78.docx @ 1 31562 @ @ 1
Oil change:
For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".
Screw out the oil drain plug (1)
Collect the used oil in a suitable drip pan
Screw in the oil drain plug (1)
Top up the oil (2) (oil level up to hole (1))
Pos: 24.32.6 /B A/Wartung/Ölkontr olle_Wechsel/Öl kontrolle_ALT Kontrollschraub e( 2) eindrehe n@ 75\mod_130 9426413971_ 78.docx @ 66318 0 @ @ 1
Screw in the inspection screw (2)
Pos: 24.32.7 /B A/Wartung/Ölkontr olle_Wechsel/Ölq ualität /Öl menge: siehe Ka pitel @ 0\mod_11 97007859486 _78.docx @ 15 531 @ 2 @ 1
Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for
Gearboxes"
Pos: 24.32.8 /B A/Wartung/Ölkontr olle_Wechsel/Alt öl ordnungsg emäß entsorge n @ 0\mod_ 1197008117002_7 8.docx @ 155 50 @ @ 1
Note
The used oil must be disposed of correctly
