Maintenance

(EasyCut F 280 / EasyCut F 320 / EasyCut F 360)

Pos: 24.30.3 /B A/Wartung/Ölkontr olle_Wechsel/M ähwerke/Bild Winkelgetrieb eEC 2 8/32 @ 10\ mod_122174 0931598_78.doc x@ 137129 @ @ 1

AFA-0-016

Fig. 23

Pos: 24.30.4 /B A/Wartung/Ölkontr olle_Wechsel/Öl kontrolle_ALT Ölkontrolle SAE 90@ 0\mod_119 7008973815_7 8.docx @ 15 649 @ @ 1

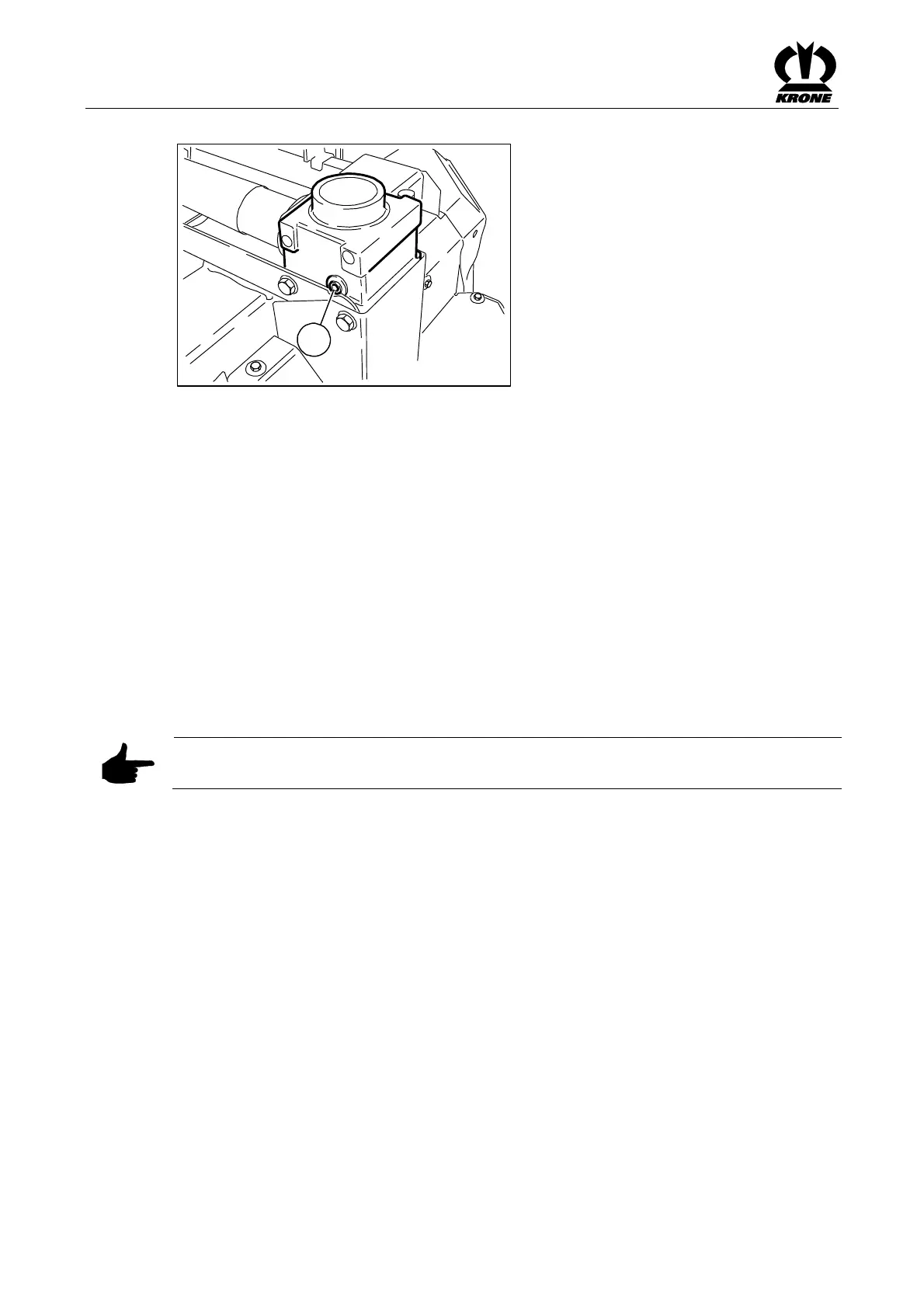

Oil level check:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Unscrew the inspection screw (1)

• Oil level up to bore hole (1)

• If necessary, top up the oil (SAE 90)

• Screw the check screw (1) back in.

Pos: 24.30.5 /B A/Wartung/Ölkontr olle_Wechsel/Öl wechsel_A LTÖlwechsel Versi on absaugen @ 1 0\mod_1 221740650161_ 78.docx @ 1370 85 @ @ 1

Oil change:

• For time intervals, see Chapter "Oil Level Check and Oil Change Intervals (Gearboxes)".

• Unscrew the inspection screw (1)

• Extract oil

• Top up oil (oil level up to hole (1))

• Screw the inspection screw (1) back in.

Pos: 24.30.6 /B A/Wartung/Ölkontr olle_Wechsel/Ölq ualität /Öl menge: siehe Ka pitel @ 0\mod_11 97007859486 _78.docx @ 15 531 @ @ 1

Oil quality / oil quantity: see Chapter "Filling Quantities and Lubricant Designations for

Gearboxes"

Pos: 24.30.7 /B A/Wartung/Ölkontr olle_Wechsel/Alt öl ordnungsg emäß entsorge n @ 0\mod_ 1197008117002_7 8.docx @ 155 50 @ 2 @ 1

Note

The used oil must be disposed of correctly
