9.1 Compensation Spring(s)
Pos: 22.5 /BA/Sich erheit/Gefahr enhinweise/M ähwerke/Gefahr - Ei nstellung and en Entlastungs federn @ 0\mod _1196751594 562_78.docx @ 12575 @ @ 1
Danger! - Setting on the compensation springs
Effect: Danger to life or serious injuries
• The compensation springs must only be removed in transport position. In the working
position the compensation springs are subject to high tensile stress.
• Severe injury can be caused if the compensation springs are removed while in the
working position.
• The lower threaded blocks on the compensation springs must be fully screwed in.

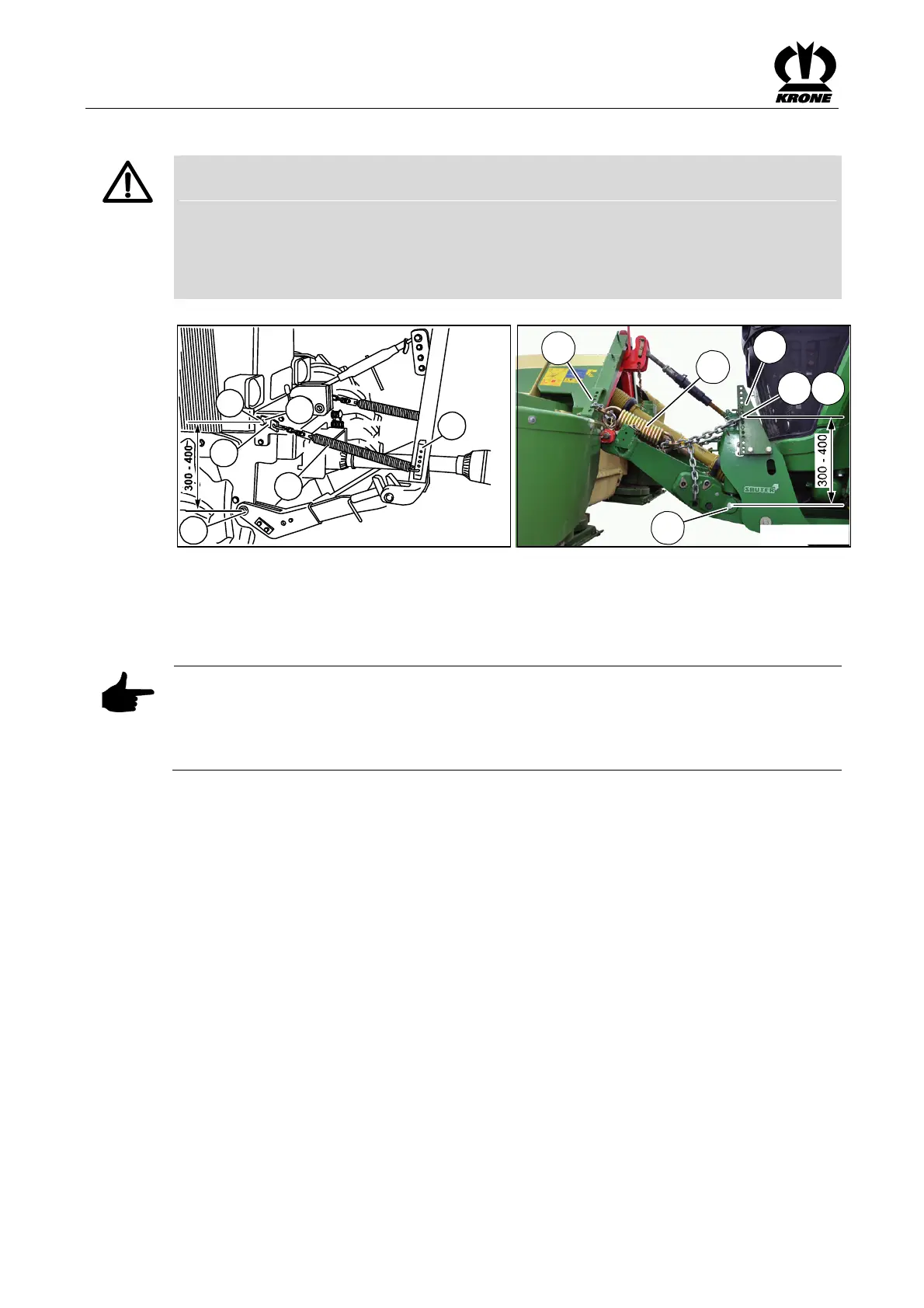

Pos: 22.6 /BA/Eins tellungen/Mä hwerke/Eas yCut/Entlastungsf eder(n)/Entlastungsf edern am Tra ktor einstelle nBil d EC F 280/3 20/Entlastung sfedern am Tra ktor einstellen Bild EC F 280/320/3 60 @ 136\ mod_135287887269 1_78.docx @ 1 211577 @ @ 1
AFA-1-007
4
3
1
2
a
5
EC-443-0
4
3
a
2 1
5
Fig. 18
Pos: 22.7 /BA/Eins tellungen/Mä hwerke/Eas yCut/Entlastungsf eder(n)/Entlastungsf edern am Tra ktor einstelle nT ext EC 28/ 322 8/32 CV @ 1 0\mod_12217 37190442_78.doc x @ 136798 @ 2 @ 1
• Bring the front mowing unit into the transport position
• Hook compensation spring (3) onto perforated bar (4).
• Attach with holder (2) on support point "a" and secure with hinged cotter pin (1)
Pos: 22.8 /BA/Eins tellungen/Mä hwerke/Eas yCut/Entlastungsf eder(n)/Einstellen d er Entlastungsf edern am Tra ktorM aß 300-40 0H inweis @ 1 0\mod_12217 37438036_78.doc x @ 136841 @ @ 1
Note
Setting dimension of the compensation springs
Effect: Proper use of the machine.
The distance between support point "a" of the compensation spring (3) and the pivot point of
the tractor's lower suspension arms (5) should be between 300 – 400 mm.
