Maintenance
61
Pos: 24.52.22 berschriften/Ü berschriften 3/K- O/Messerschr aubverschluß @ 0\mod_11972709 41296_78.doc x @ 16578 @ 3 @ 1
10.12.1 Blade Screw Connection
Pos: 24.52.23 / BA/Wartung/Mä hwerke/Messerschr aub / Mess erschnellverschlus s/Beschreib ungM esser wechselM esserschr aubverschluss @ 47\mod_12856 61949953_78.d ocx @ 456898 @ 3@ 1

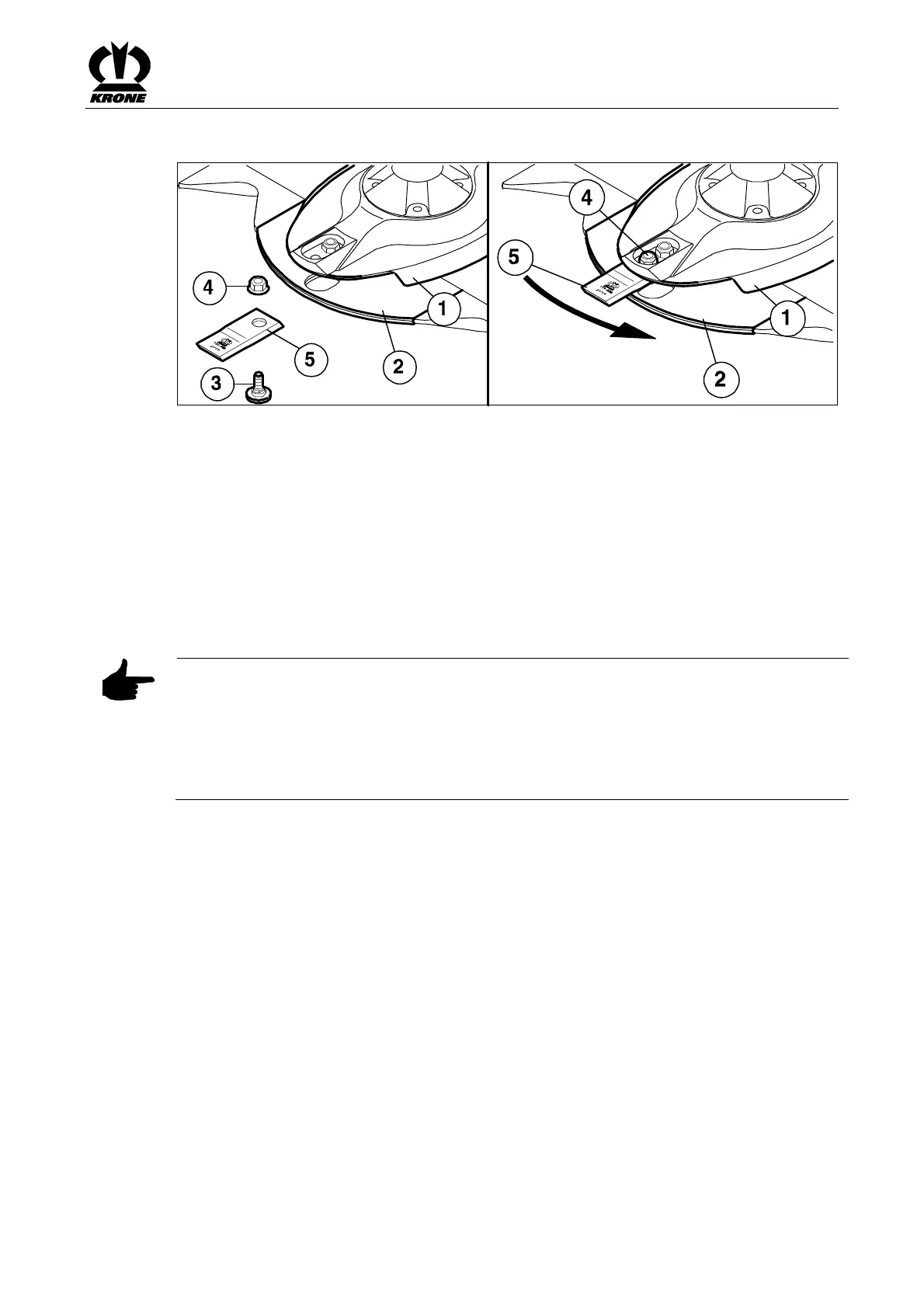

EC-0-250
Pic. 35
Fold up safety device
Clean the area
Remove damaged or worn blades
To fit the blades, insert the blade (5) between the wear skid (2) and the cutting disc (1)
Insert the retaining bolt (3) from below through the wear skid, the blade and the cutting
disc
Place the locknut (4) on the retaining bolt from above and tighten it firmly (tightening
torque refer to chapter “Torques”)
Repeat the process for all blades
After fitting the blades, fold the safety device down again
Note
The cutter blades of anticlockwise rotating cutting discs / blade drums are different to
those of clockwise rotating ones. Make certain the direction of rotation is correct when
installing!
The arrow on the cutter blades must match the direction of rotation of the corresponding
cutting discs / blade drums
The locknut (4) used to secure the retaining bolts must not be used more than once
Order No. for clockwise rotating blade: 139-889
Order No. for anticlockwise rotating blade: 139-888
