RUNNING GEAR OPERATION
24
Operating instructions • Load Carrier • 505410638-02 • 07/2019
B
A
1
2

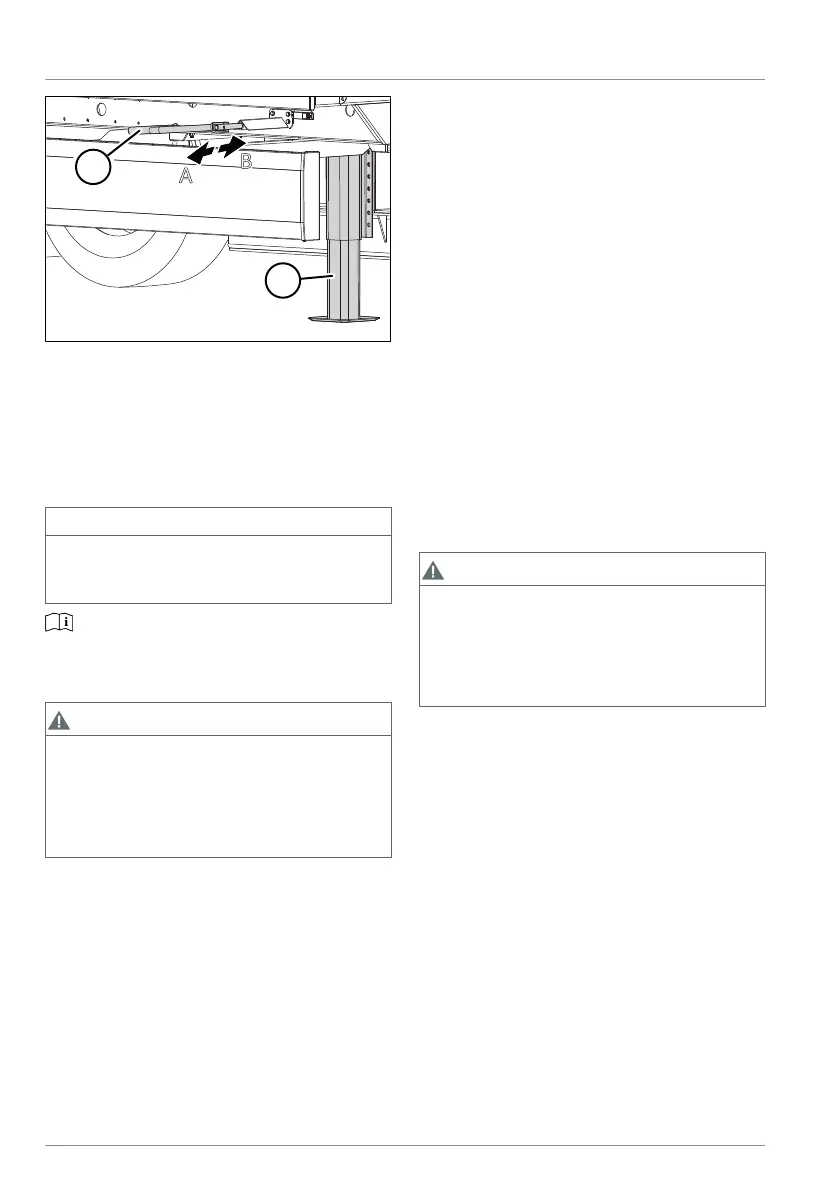

Fig.5-2: Load speed and rapid speed of
the landing leg winch
1 Hand crank
2 Landing leg
A High speed
B Load speed
INFO
Cranking clockwise moves the landing leg
downwards. Cranking counter-clockwise
moves the landing leg upwards.
Also observe the enclosed supplier
documentation.
Extending the landing leg winch
CAUTION
Risk of injury due to crank recoil!
A hand crank recoil can cause injuries
when releasing the hand crank.
► Slowly ease the load off the hand
crank at the end of the rotation.
► Apply the parking brake (see "5.9.2
Parking brake", pg.37).
► Ensure that the ground is load-bearing
and level.
► Use wheel chocks to prevent the trailer
from rolling away (see "5.1 Using wheel
chocks", pg.22).
► Lift the hand crank from the bracket.
► Engage the hand crank on the crank
drive shaft until it locks into place.
► Switch on rapid speed by pulling out
the hand crank (see "Fig. 5-2: Load
speed and rapid speed of the landing leg
winch", pg.24).
► Wind down the landing leg winch until
it touches the ground.
► Switch on load speed by pushing in
the hand crank (see "Fig. 5-2: Load
speed and rapid speed of the landing leg
winch", pg.24).
► Use the hand crank to wind to the de-
sired support height. Do not fully un-
load the wheels while doing so.
► Use the rear braces, if available (see
"5.3 Rear braces", pg.25).
► Secure the hand crank in the bracket.
ü The landing leg winch is extended and
the trailer is supported.
Retracting the landing leg winch
CAUTION
Risk of injury due to crank recoil!
A hand crank recoil can cause injuries
when releasing the hand crank.
► Slowly ease the load off the hand
crank at the end of the rotation.
► Check the parking brake and apply if
necessary (see "5.9.2 Parking brake",
pg.37).
► Hitch the trailer (see "7.2 Hitching and un-
hitching the trailer", pg.88).
► Retract the rear braces, if available
(see "5.3 Rear braces", pg.25).
► Take the hand crank from the bracket.
► Engage the hand crank on the crank
drive shaft until it locks into place.
► Set to load speed by pushing in the
hand crank (see "Fig. 5-2: Load speed
and rapid speed of the landing leg winch",
pg.24).
► Crank up the landing leg winch until it
is unloaded.
