RUNNING GEAR OPERATION
Operating instructions • Load Carrier • 505410638-02 • 07/2019
33
Connect the power supply (vehicle
lighting) and the brake power supply
(EBS).
ü The supply and control connections
are now connected.
Disconnecting the standard coupling
þ The parking brake on the tractor unit is
applied.
þ The parking brake on the trailer is ap-
plied (see "5.9.2 Parking brake", pg.37).
Always disconnect the supply com-
pressed air coupling (red) first.
Disconnect the brake compressed air
coupling (yellow).
Disconnect the power supply (vehicle
lighting) and the brake power supply
(EBS).
Close the disconnected coupling
heads and plugs with the protective
caps.
ü The supply and control connections
are disconnected.
Connecting the Duo-Matic coupling
1
2

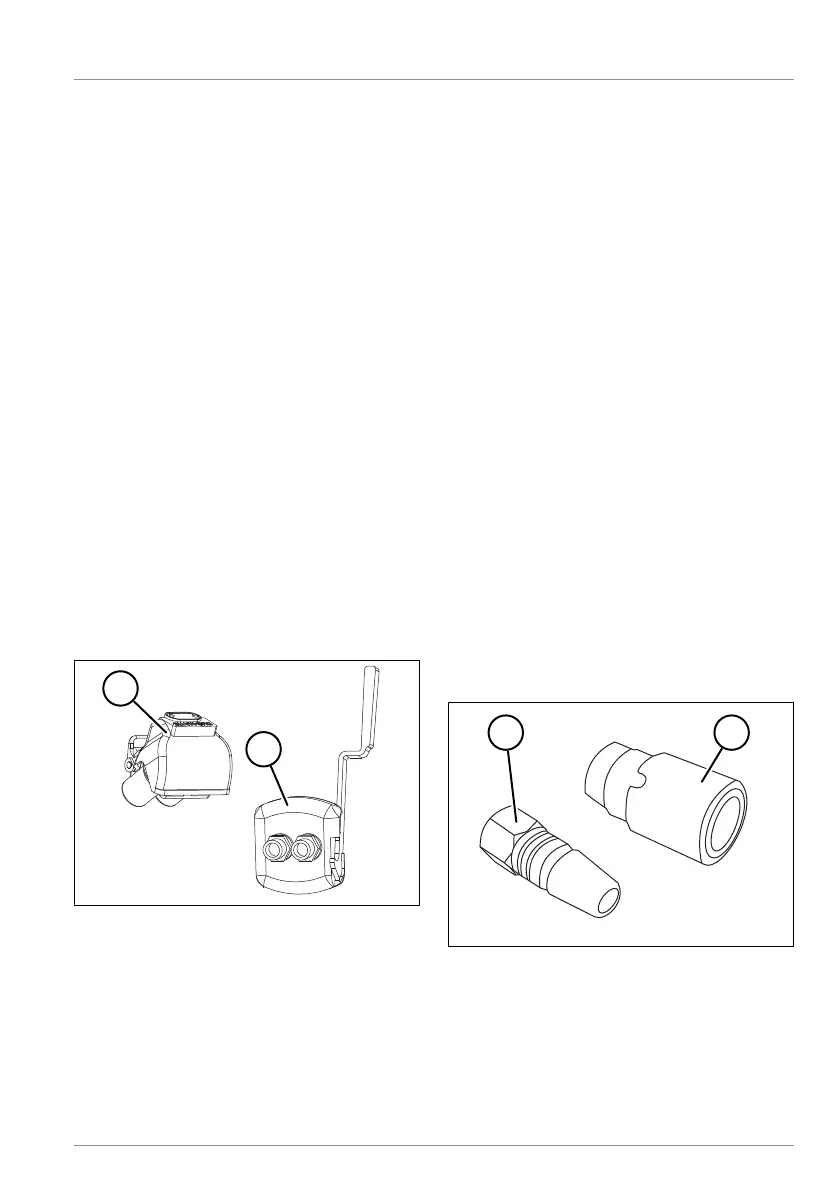

Fig.5-15: Duo-Matic coupling
1 Compressed air coupling (tractor unit
part)
2 Compressed air coupling (trailer part)
þ The parking brake on the tractor unit is
applied.
þ The parking brake on the trailer is ap-
plied (see "5.9.2 Parking brake", pg.37).
Check the cleanliness and integrity of
the sealing surfaces on the coupling
heads. Clean if necessary.
Pull down the compressed air coupling
(trailer part) lever and insert the coup-
ling head (tractor unit part).
Connect the power supply (vehicle
lighting) and the brake power supply
(EBS).
ü The supply and control connections
are now connected.
Disconnecting the Duo-Matic coupling
þ The parking brake on the tractor unit is
applied.
þ The parking brake on the trailer is ap-
plied (see "5.9.2 Parking brake", pg.37).
Pull down the coupling head (trailer
part) lever and remove the coupling
head (tractor unit part).
Disconnect the power supply (vehicle
lighting) and the brake power supply
(EBS).
ü The supply and control connections
are disconnected.
Connecting C-coupling heads
1 2
Fig.5-16: C-coupling heads (trailer)
1 Supply compressed air coupling
2 Brake compressed air coupling
þ The parking brake on the tractor unit is
applied.
þ The parking brake on the trailer is ap-
plied (see "5.9.2 Parking brake", pg.37).
