SUPERSTRUCTURE OPERATION
60
Operating instructions • Load Carrier • 505410638-02 • 07/2019
1
2

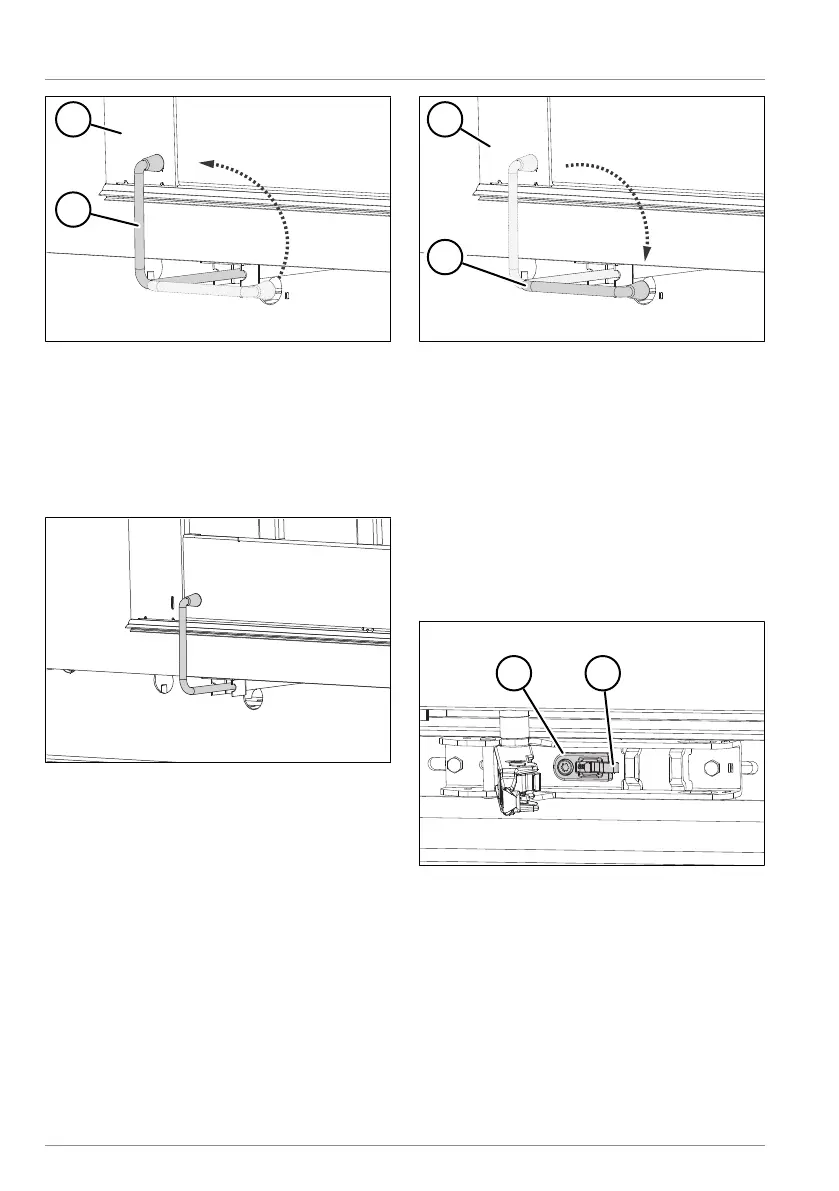

Fig.6-6: Swivelling the door stop upwards
1 Door leaf swung open
3 Door stop
► Swivel the door stop upwards.
► Move the door stop against the swung-
open door.
Fig.6-7: Door leaf locked with the door
stop
ü The door is locked with the door stop.
Release the door from the door stop
► Move the door stop outwards from the
swivelled open door.
1
2
Fig.6-8: Swivelling the door stop down-
wards
1 Door leaf swung open
2 Door stop
► Swivel the door stop downwards.
► Turn in the door stop with the spring
force.
ü The door is released from the door
stop.
Engaging the Door Fix
1 2
Fig.6-9: Door Fix
1 Door Fix
2 Lever for Door Fix
þ The door leaf is open.
