3.6 Cutter Module Installation (Option)
1. Pull the top cover open levers to open the top cover.
2. Remove the front panel from the lower cover.

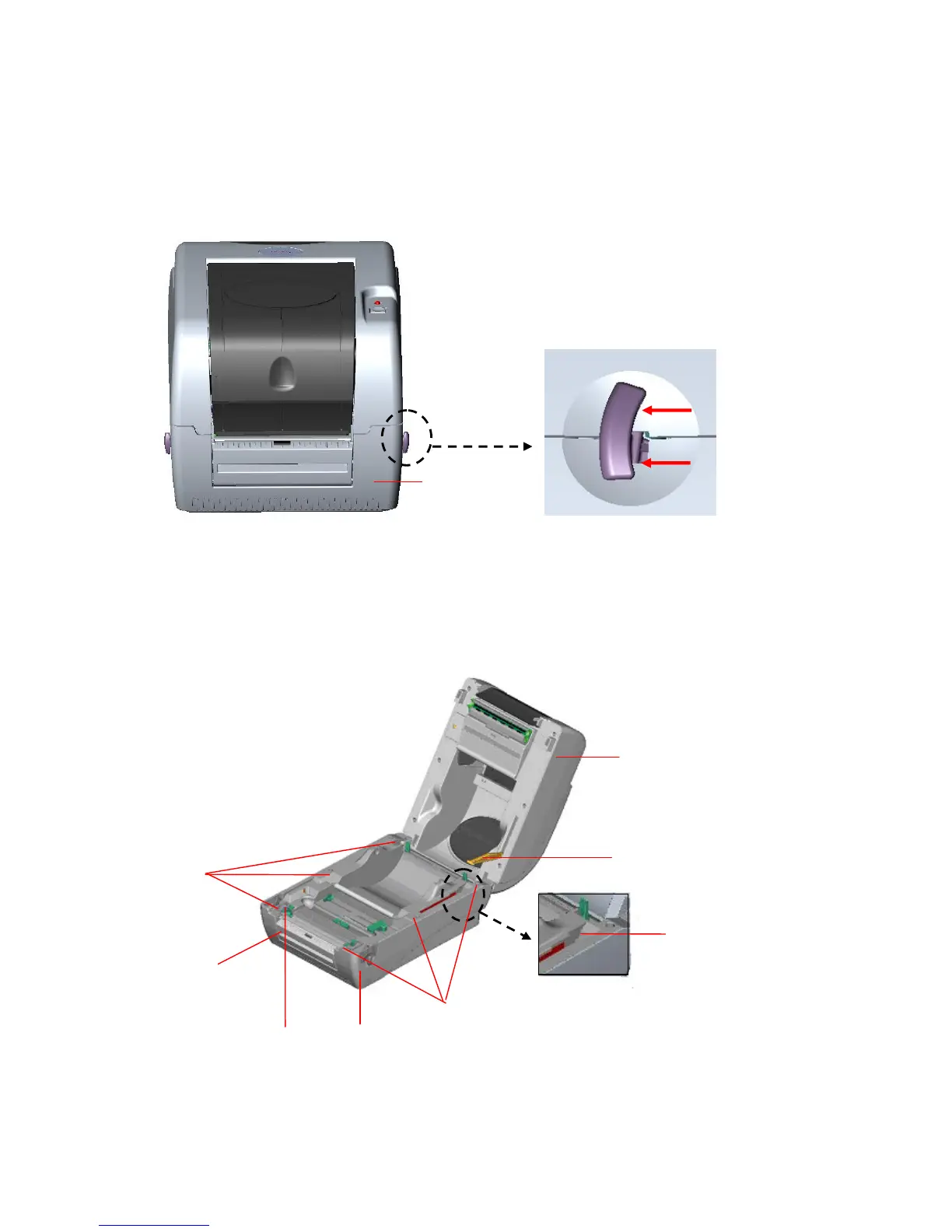

Fig. 22 Pull the lever to open the cover
3. Open the top cover and hold it and push down and push backward the top cover
support then push backward the top cover.
4. Use a screwdriver to screw off 6 screws on the lower inner cover.
Fig. 23 Remove 6 screws from lower inner cover
Lower Cover
Screws
Top Cover
Screws
Top Cover Support
