5 Valve Description
17 of 60
▪ Exterior coating: blue,RAL5002
▪ The valves satisfy the safety requirements of AnnexI of the European Pressure
Equipment Directive 2014/68/EU(PED) for fluids in Group2.
▪ Type-tested to the specifications of Germanischer Lloyd and Bureau Veritas.
Variants
▪ Lead-sealable cap (prevents unauthorised actuation) as assembly set
▪ Electric actuators
5.3.1.4 Pressure/temperature ratings
Table6: Test pressure and operating pressure
PN DN Shell test Leak test (seat) Permissible operating pressure
5)
With water
Tests P10 and P11 to
DINEN12266-1
Test P12, leakage rateA to
DINEN12266-1
-10 to 120 °C
[bar] [bar] [bar]
16 20/25-200 24 17,6 16

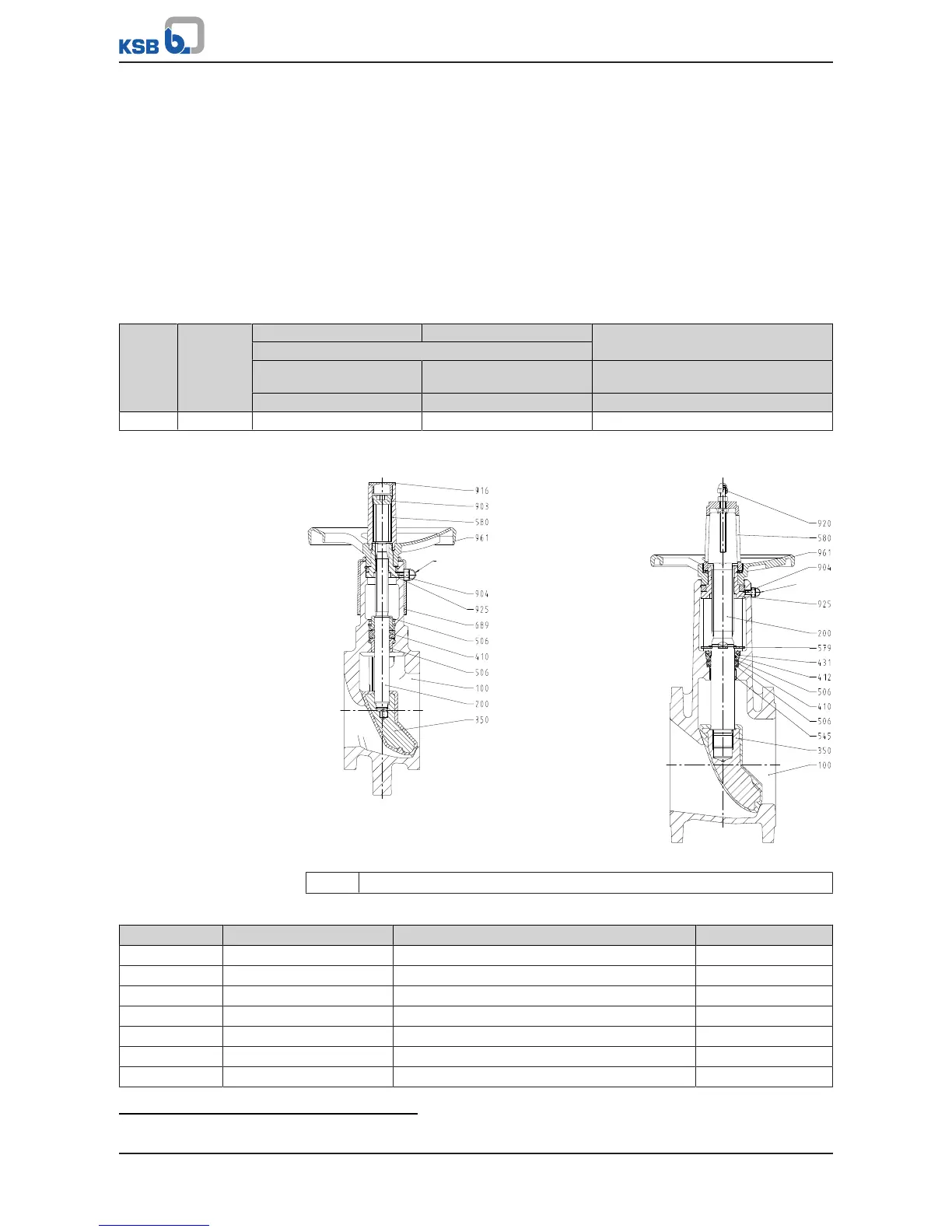

5.3.1.5 Materials
*)
*)
DN 20-150 DN 200
*) shown offset by 90°
Table7: Parts list
Part No. Description Material Note
100 Body EN-GJL-250 (5.1301) -
200 Stem Stainless steel, min. 13% chrome (Cr) -
350 Valve disc Grey cast iron/EPDM -
410 Profile seal Elastomer EPDM -
412 O-ring Elastomer EPDM DN 200
431 Gland packing Galvanised steel DN 200
506 Retaining ring Plastic -
5) Static load
