7 Operation
42 of 68
Calio
1157.821/04-EN

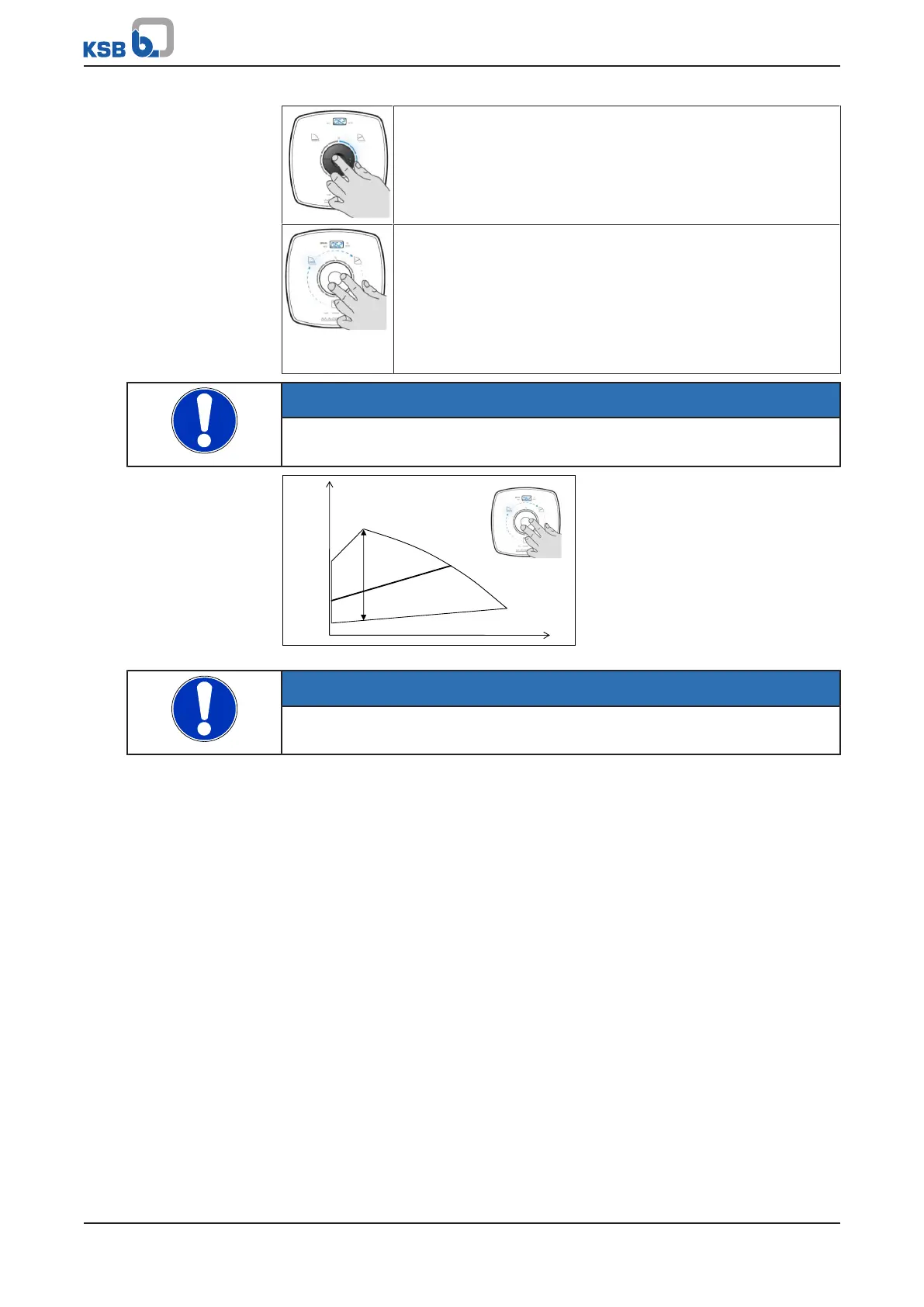

Step 4 a: Confirming the current setpoint
▪ Press the control element.
Step 4b: Changing the setpoint
▪ Turn the control element and set the required setpoint in
increments of 1% within the range from 0% to 100%.
– Turning it clockwise increases the setpoint; turning it anti-
clockwise decreases the setpoint.
– The LED segments will light up in increments of 10%.
▪ Press the control element to save the setpoint.
NOTE
If 10seconds pass without any settings being made or saved, the control unit will
revert to the previous settings.
H
H
max
H
S
H
min
Q
Fig.22: Proportional-pressure Control settings
NOTE
To start the pump the “RUN” terminal pair must be bridged (factory setting) or the
terminal pair must receive the START signal.
