KSB Calio User Manual

7 Operation
47 of 68
Calio
1157.821/04-EN

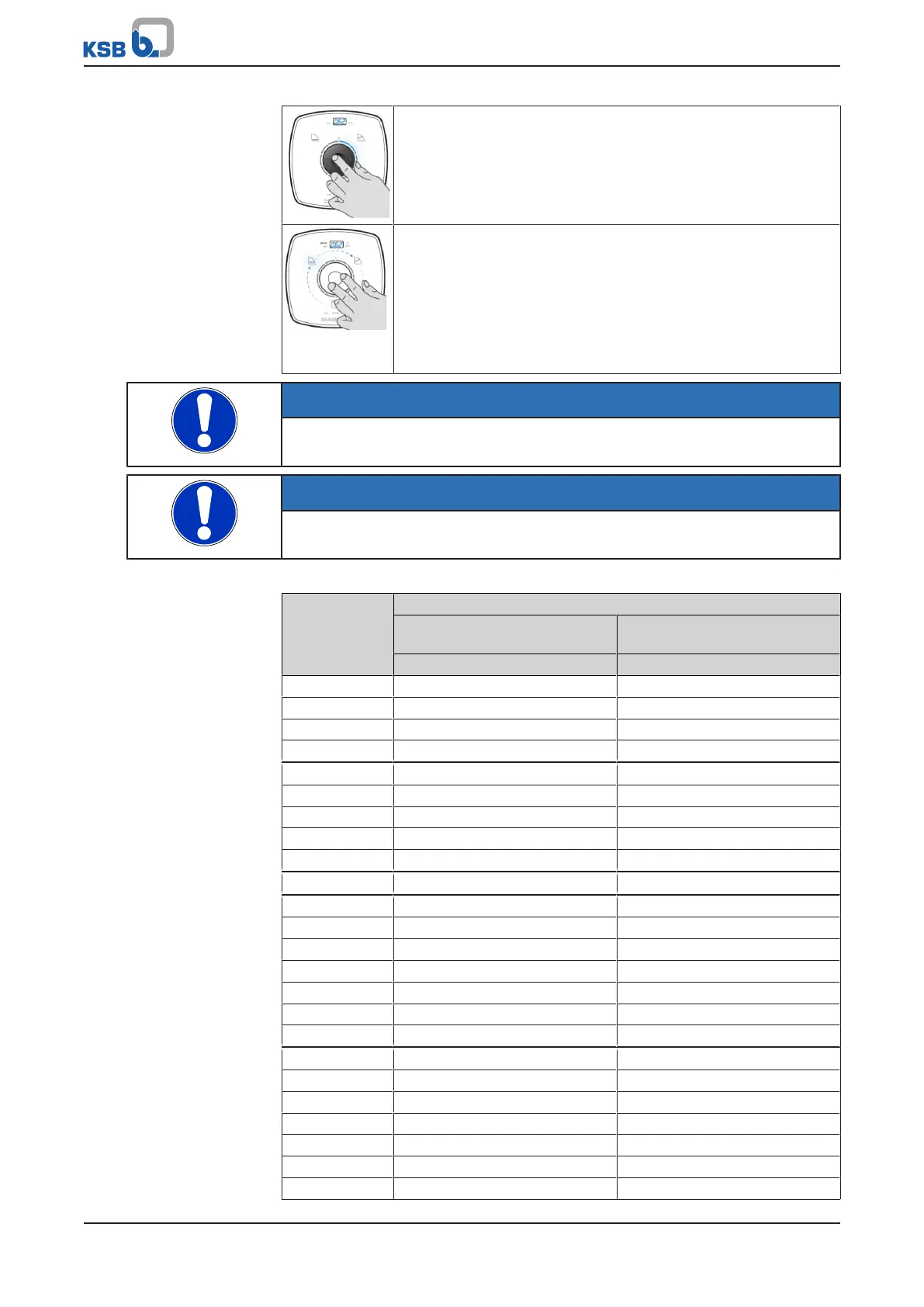

Step 4 a: Confirming the current setpoint
▪ Press the control element.
Step 4b: Changing the setpoint
▪ Turn the control element and set the required setpoint in
increments of 1% within the range from 0% to 100%.
– Turning it clockwise increases the setpoint; turning it anti-
clockwise decreases the setpoint.
– The LED segments will light up in increments of 10%.
▪ Press the control element to save the setpoint.
NOTE
If 10seconds pass without any settings being made or saved, the control unit will
revert to the previous settings.
NOTE
To start the pump the “RUN” terminal pair must be bridged (factory setting) or the
terminal pair must receive the START signal.
Table20: Speeds
Size Speed
Minimum speed
Setpoint input 0%
Maximum speed
Setpoint input 100%
[rpm] [rpm]
25-40 1000 2900
25-60 1000 3500
25-80 1000 4000
25-100 1000 4500
30-40 1000 2900
30-60 1000 3500
30-80 1000 4000
30-100 1000 4500
30-120 1000 4000
32-120 1000 4000
40-60 1000 3700
40-70 1000 3900
40-80 1000 3600
40-90 1000 4500
40-100 1000 4000
40-120 1000 2900
40-180 1000 3500
50-40 1000 3200
50-60 1000 3300
50-80 1000 3500
50-90 1000 4500
50-100 1000 2750
50-120 1000 2930
50-150 1000 3260

KSB Calio Specifications

General

Max Operating Pressure	10 bar
Connection Size	DN 32
Material	Stainless steel
Applications	heating, cooling, industrial processes
Connection Type	Flanged
Power Supply	1~230 V, 50/60 Hz / 3~400 V, 50/60 Hz
