4 Description of the Pump (Set)
4.1 General description
▪ Standardised chemical pump with shaft seal
Pump for handling aggressive liquids in the chemical and petrochemical industries.
4.2 Designation
Example: MCPK 50-32-160 CDhix
Table 5: Key to the designation
Code Description
MCPK Type series (full name: MegaCPK)
50 Nominal suction nozzle diameter [mm]
32 Nominal discharge nozzle diameter [mm]
160 Nominal impeller diameter [mm]
C Casing material, e.g. C = stainless steel
D Impeller material if different from casing material, e.g. D =
duplex
hix Additional description, e.g. h = heatable, i = inducer, x =
special version
4.3 Name plate
MCPK 50-32-160 CD
P-No. 997125086300550001
Q 20 m
3
/h H 25 m
n 2955 1/min
KSB Aktiengesellschaft
67227 Frankenthal
Mat-No. 01 109 223 ZN 3804 - D 52 x 74
2011
0520-5-P-10000-31
1
2
5
4
3
6
7
8

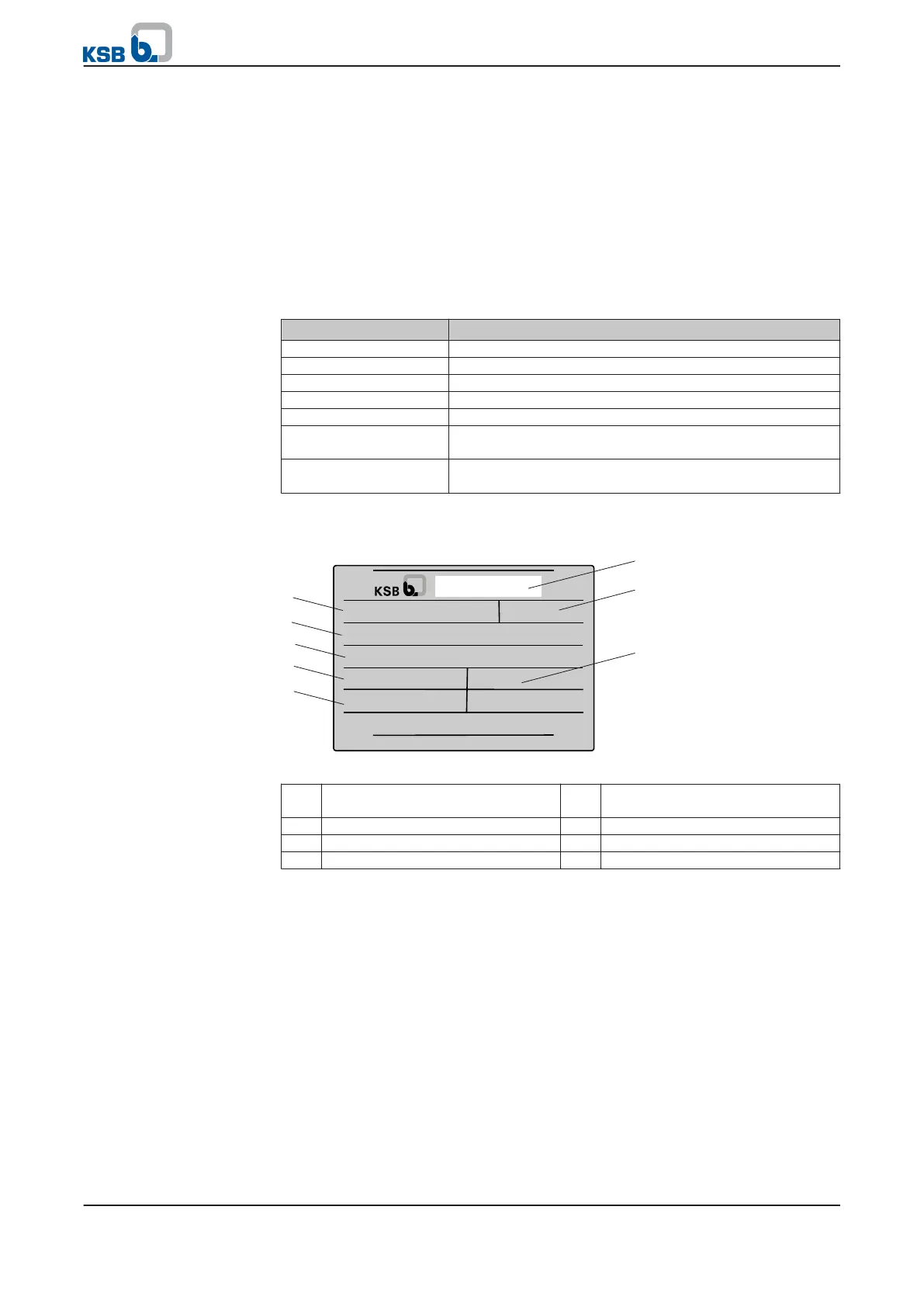

Fig. 5: Name plate (example)
1
Type series, size, material 2 Customer-specific information
(optional)
3 KSB order and order item number 4 Flow rate
5 Speed 6 Manufacturer's name and address
7 Year of construction 8 Head
4.4 Design details
Design
▪ Volute casing pump
▪ Horizontal installation
▪ Back pull-out design
▪ Single-stage
▪ Meets the technical requirements to ISO 5199
▪ Dimensions and ratings to ISO 2858
complemented by pumps of nominal diameters DN 25, DN 200 and above
Pump casing
▪ Single or double volute, depending on the pump size
4 Description of the Pump (Set)
16 of 74
MegaCPK
