The sealing surfaces have been cleaned.
For back pull-out units without coupling, fit the coupling in accordance with
the manufacturer's instructions.
1. If required, suspend or support the back pull-out unit to prevent it from tipping
over. Then slide it into volute casing 102 with a new gasket 411.10.
2. Tighten nut 920.01 at the volute casing.
3. Bolt support foot 183 to the baseplate.
4. Only for heated version: Fit by-pass pipe 710.02 with pipe union 731.01/.02.
7.5.6 Mounting the motor
NOTE
Steps 1 and 2 do not apply to versions with spacer-type coupling.
1. Shift the motor to connect it to the pump via the coupling.
2. Fasten the motor to the baseplate.
3. Align pump and motor. (Section 5.7 Page 28)
4. Connect the motor to the power supply (refer to manufacturer's product
literature).
7.6 Tightening torques
7.6.1 Tightening torques for the pump
a)
b)
A
B
A
C C
D
XX
X
A

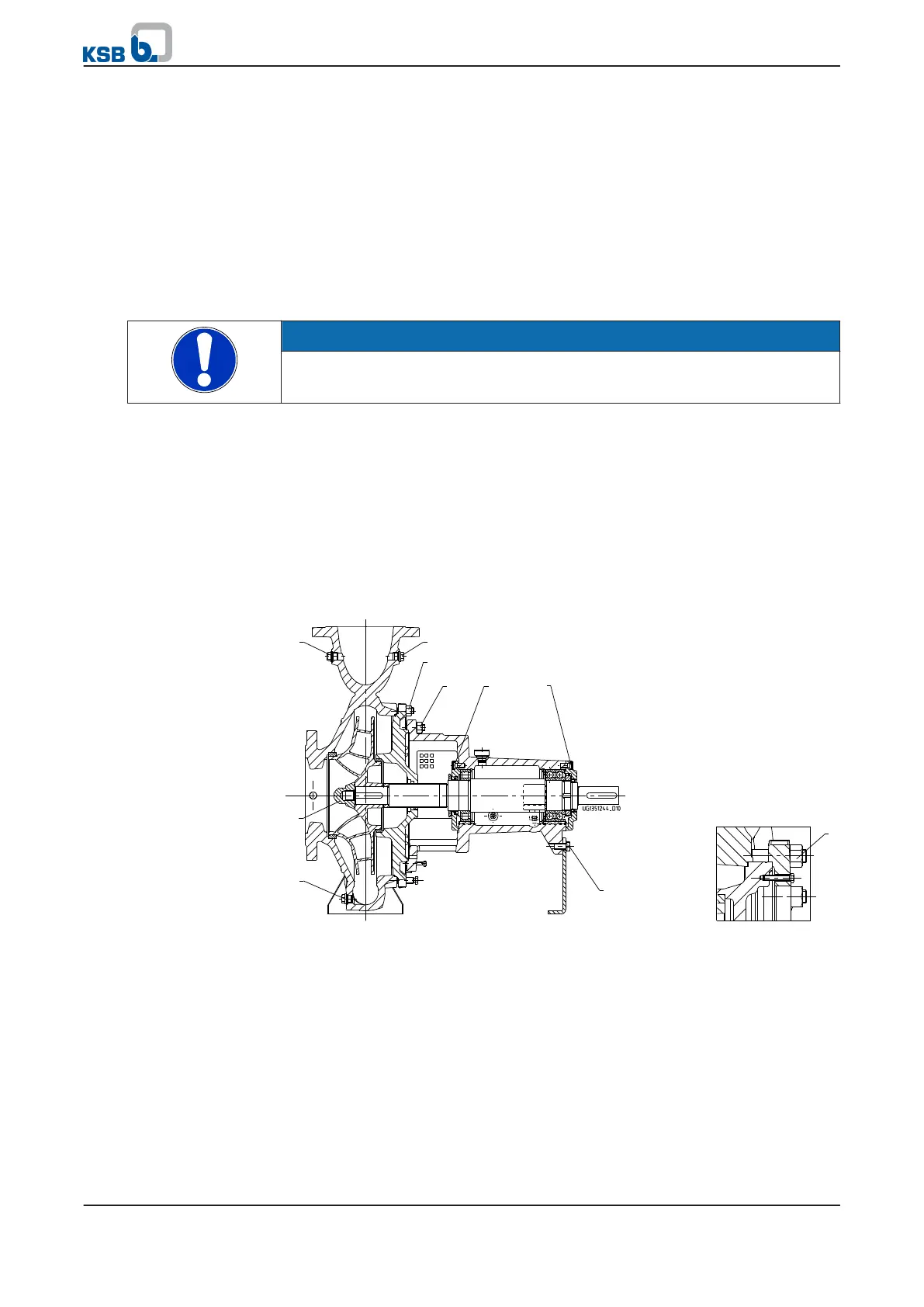

Fig. 20:
a) Tightening points at the pump, b) Model with clamped casing cover
Use a torque wrench to tighten the bolted connections (902.01/920.01) between the
volute casing and the bearing bracket.
7 Servicing/Maintenance
58 of 74
MegaCPK
