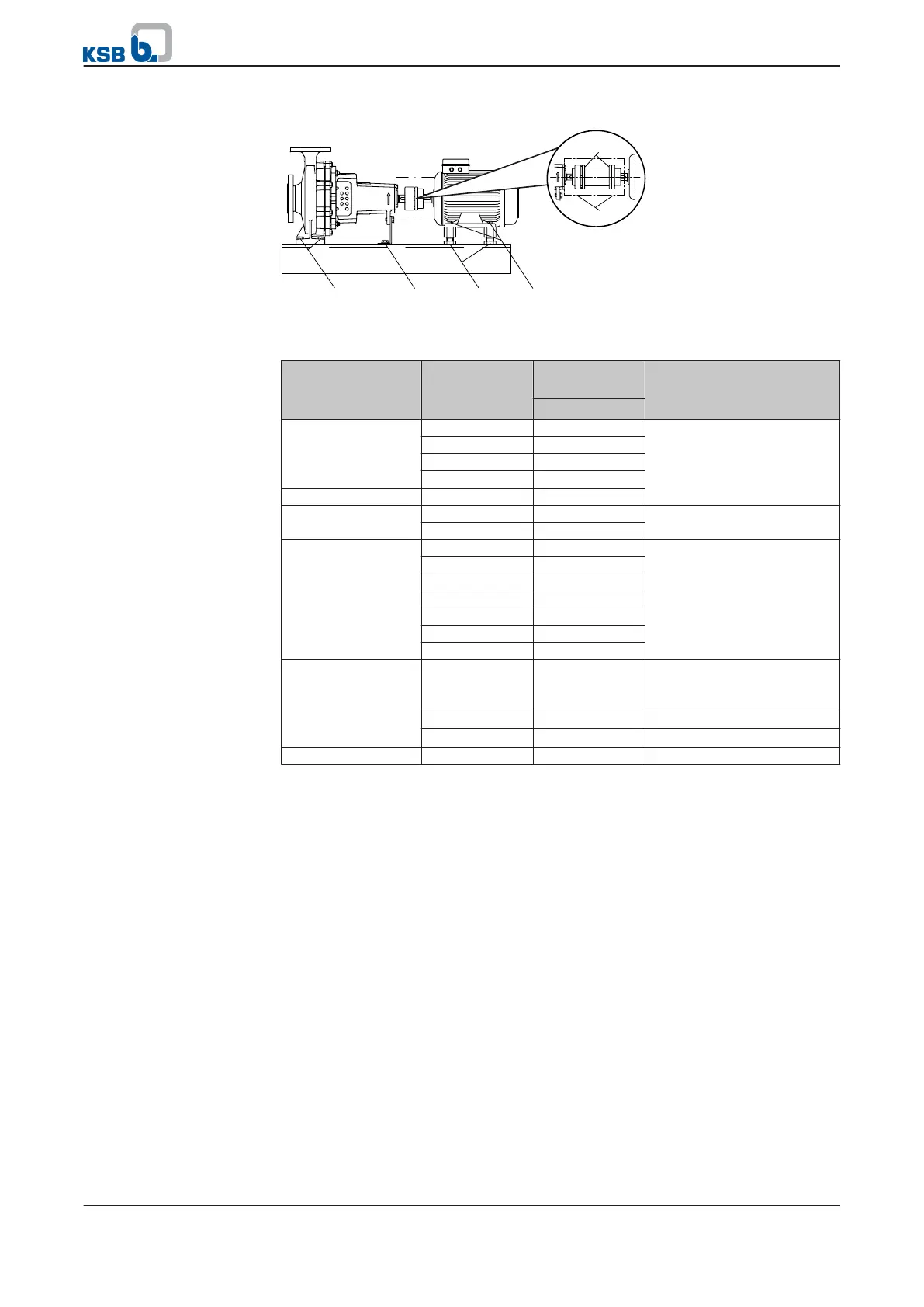

7.6.3 Tightening torques for the pump set
6
5
1
2
3 4
Fig. 22: Tightening points at the pump set
Table 26: Tightening torques
Position
Thread Tightening
torque
Comment
[Nm]
1 M12 30 Pump on baseplate
M16 75
M20 75
M24 140
2 M12 30
3 M24 × 1.5 140 Adjusting screws in
baseplate
M36 × 1.5 140
4 M6 10 Motor on adjusting screws or
bases
M8 10
M10 15
M12 30
M16 75
M20 140
M24 140
5 M6 13 Coupling (only for spacer-
type coupling made by
Flender)
M8 18
M10 44
6 M6 10 Coupling guard
7.7 Spare parts stock
7.7.1 Ordering spare parts
Always quote the following data when ordering replacement or spare parts:
Order number
Order item number
Type series
Size
Material variant
Year of construction
Refer to the name plate for all data.
Also specify the following data:
Part number and description
Quantity of spare parts
Shipping address
Mode of dispatch (freight, mail, express freight, air freight)
7 Servicing/Maintenance
