KSB RDL - Sectional Drawing

RDL
33

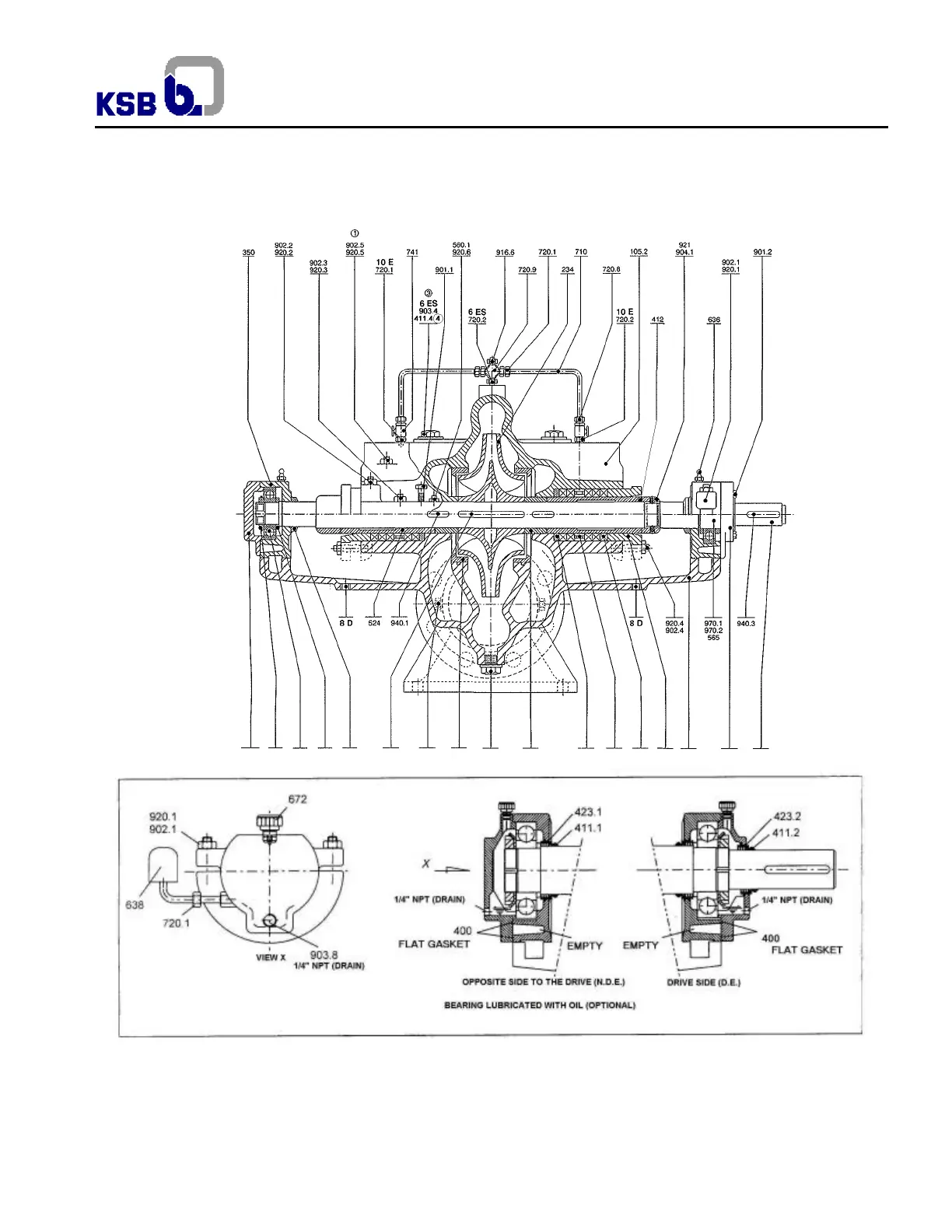

9. Sectional Drawing
9.1 Sizes 125 up to 300
Figure 29
Note:
• Not used at pump sizes 125-250/310, 150-430, 200-340/620, 300-340/400.
‚ Not used at pump sizes 200-500/620, 250-340/400.
ƒ Only for pump size 300-400.
„ Not used for pumps with ANSI flanges.
