CAUTION!
The output contacts numbers for a second relay board installed will be 1 to 7.
Contacts are NO (normally open) type.
available at no charge in any of

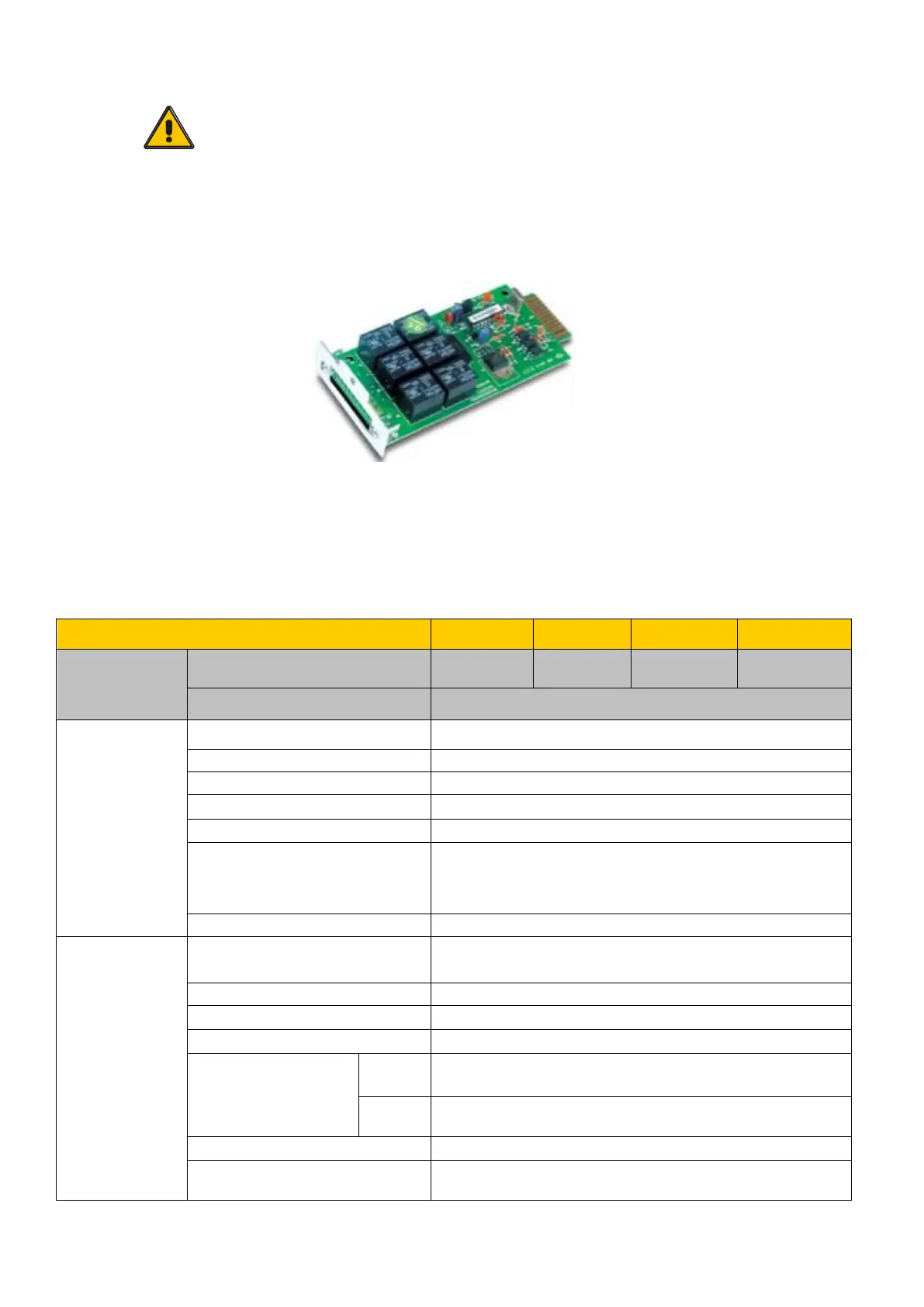

Overview of the relay card
Appendix 1 Specifications
UPS Cabinet
20KVA
30KVA
50KVA
100KVA
Capacity
(VA/W)
Model
4KVA
/3.2~16KW
4~6KVA
/3.2~24KW
4~10KVA
/3.2~40KW
4~10KVA
/3.2~80KW
UPS Module
4KVA/3.2KW, 6KVA/4.8KW, 10KVA/8KW
Input
Phase
3Phase/4Wires + Ground or 1Phase 2 Wires + Ground
Rated Voltage
380/400Vac or 220/230VAC
Voltage Range
208~478Vac or 120VAC-276VAC
Frequency Range
40~70Hz
Power Factor
≥0.99
Bypass Voltage Range
Max.voltage: +15%(optional +5%、+10%、+25% )
Min. voltage: -45% (optional -20%、-30%)
Frequency protection range: ±10%
Current Harmonic
≤5%(100％ non-linear load)
Output
Phase
Single phase & Ground
Rated Voltage
220/230VAC
Power Factor
0.8
Voltage Precision
±2%
Output Frequency
Utility
Mode
±1%、±2%、±4%、±5%、±10% of the rated
frequency(optional)
Battery
Mode
(50/60±0.2%)Hz
Crest Factor
3:1
Transfer Time
Utility to Battery : 0ms Utility to bypass : 0ms
(following)
