KStar YMK3300 Series User Manual

24
INPUT Primary input Line OUTPUT
Vout-L1: Output Phase L1
Vin-L1: Primary input Phase L1 Vout -L2: Output Phase L2
Vin-L2: Primary input Phase L2 Vout -L3: Output Phase L3
Vin-L3: Primary input Phase L3 Vout -N: Output Neutral
V
in-N: Input Neutral for primary and
secondary input
PE: Grounding
BAT+: Positive terminal of the batteries string
BATN: Neutral terminal of the batteries string
BAT-: Negative terminal of the batteries string

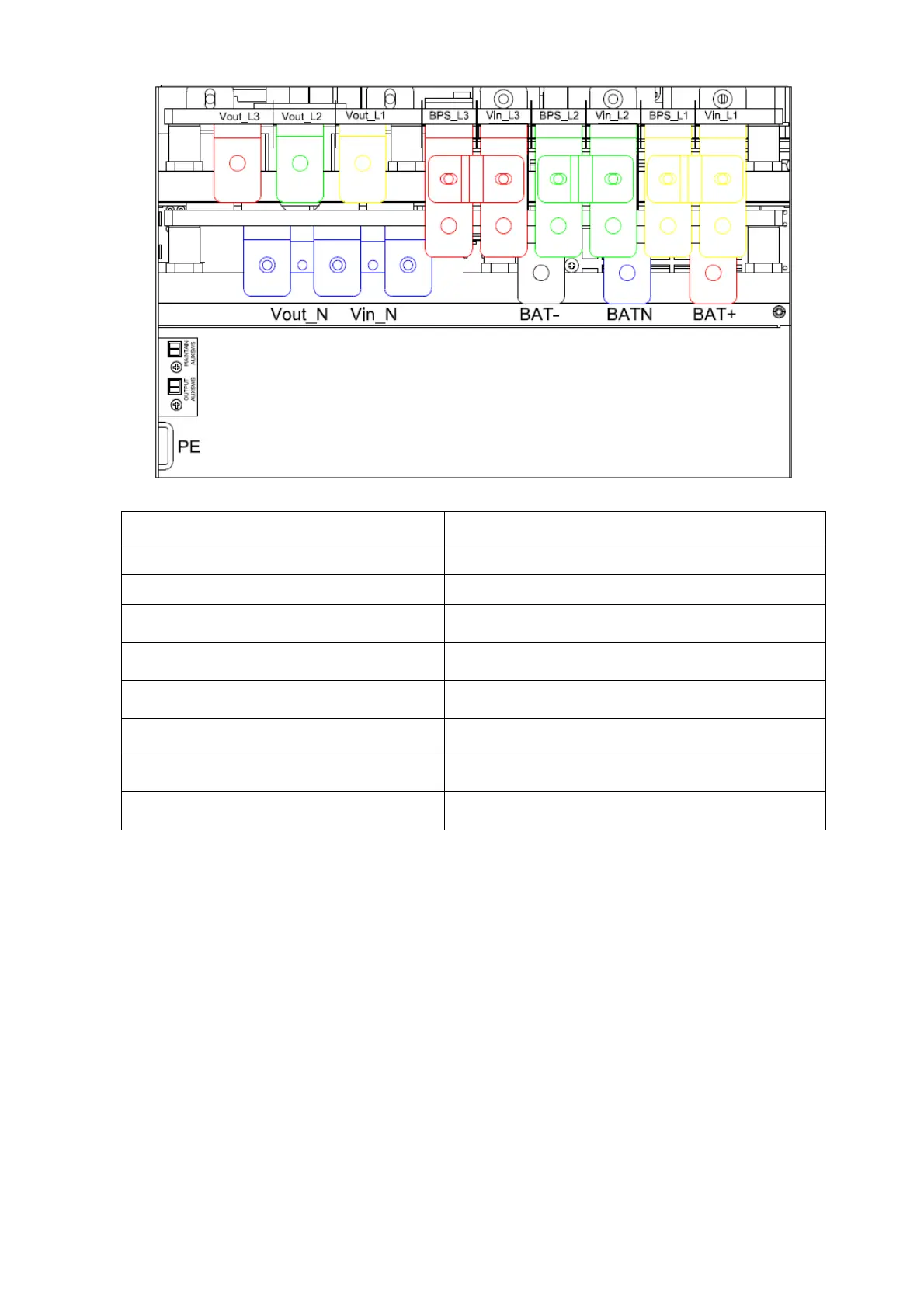

3.8.2 Dual input connection
60kVA-90kVA
