67

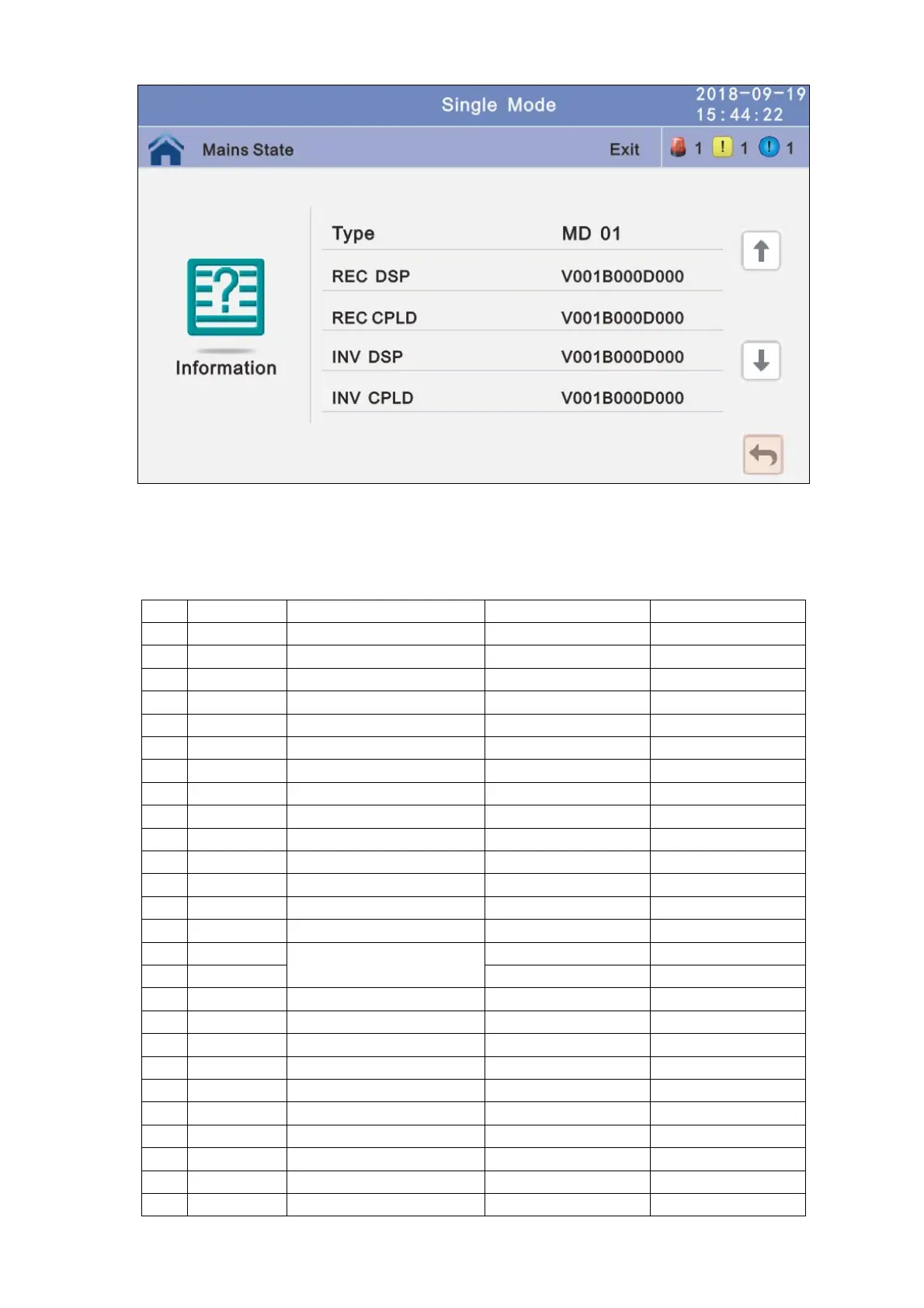

4.4 Display Messages/Troubleshooting
This section lists the event and alarm messages that the UPS might display. The messages
are listed in alphabetical order. This section is listed with each alarm message to help you
troubleshoot problems.
Fault Information
No Fault Cord UPS Alarm Warning Buzzer LED
1 002 REC Over Temperature Twice per second Fault LED lit
2 003 REC par. cable Fault Twice per second Fault LED lit
3 004 REC Over Current Beep continuously Fault LED lit
4 005 REC Power Fault Beep continuously Fault LED lit
5 007 Input SCR Fault Beep continuously Fault LED lit
6 00A Battery SCR Fault Beep continuously Fault LED lit
7 00C Charge SCR Fault Beep continuously Fault LED lit
8 00E Fan Fault Beep continuously Fault LED lit
9 011 Fan Power fault Beep continuously Fault LED lit
10 012 Charger Over Temp. Beep continuously Fault LED lit
11 013 Soft Start Failed Beep continuously Fault LED lit
12 014 BAT Charger Fault Beep continuously Fault LED lit
13 016 REC Comm. Fault Once per 2 seconds Fault LED blinking
14 019 REC Initializes Fault Beep continuously Fault LED lit
15 01D
Unit insert fault
Once per 2 seconds Fault LED lit
16 063 Once per 2 seconds Fault LED lit
17 01E Rectifier Fault Beep continuously Fault LED lit
18 041 Inverter Fault Beep continuously Fault LED lit
19 044 INV IGBT SHORT Beep continuously Fault LED lit
20 047 Inverter relay Short Beep continuously Fault LED lit
21 04A Inverter relay Broken Beep continuously Fault LED lit
22 04D INV par. cable Fault Twice per second Fault LED lit
23 051 Output Short Circuit Once per second Fault LED blinking
24 054 INV Comm. Fault Once per 2 seconds Fault LED blinking
25 057 INV Initializes Fault Beep continuously Fault LED lit
26 05A INV self-test Fault Beep continuously Fault LED lit
To Next Page
