KTE KT-PPC - Terminal Input 01 Specifications

Instruction Manual of
Programmable Power Controller (KT-PPC)
REV
1.6E
PAGE : 14 OF 25
Doc No: TIR9402-30-D01
210*297(mm) KTE CO., LTD TI-06(R0)

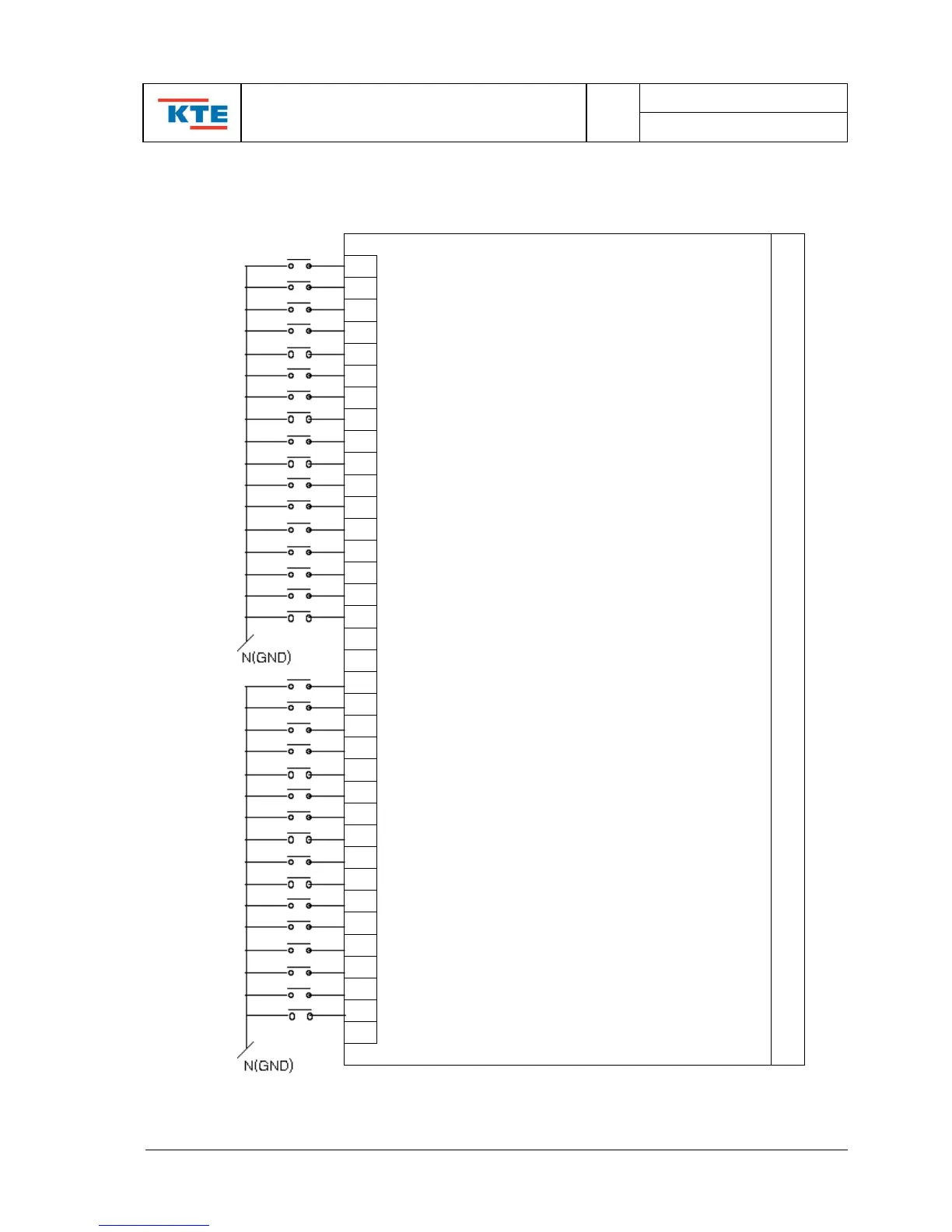

4.2. TERMINAL INPUT 01
I
N
P
U
T
0
1
01
No.1 GEN (ACB OPEN SW.)
02
No.2 GEN (ACB OPEN SW.)
03
No.3 GEN (ACB OPEN SW.)
04
Auto Load Sharing
05
No.1 GEN Ready to Start
06
No.2 GEN Ready to Start
07
No.3 GEN Ready to Start
08
No.1 GEN Run
09
No.2 GEN Run
10
No.3 GEN Run
11
No.1 GEN Stop
12
No.2 GEN Stop
13
No.3 GEN Stop
14
No.1 GEN ACB Close
15
No.2 GEN ACB Close
16
No.3 GEN ACB Close
17
GEN. Voltage build up
18
Unused
19
Unused
20
PPC Run
21
No.1 GEN ACB Trip (OCP, RPR)
22
No.2 GEN ACB Trip (OCP, RPR)
23
No.3 GEN ACB Trip (OCP, RPR)
24
Heavy Load (PWC)
25
Light Load (PWC)
26
High Power (PWC)
27
ACB Open Command (PWC)
28
Bus Abnormal (PWC)
29
ACB non Close (ASD)
30
Auto Synchro Fail (ASD)
31
PREF. Trip
32
Bus No Volt
33
REQU.1
34
REQU.2
35
REQU.3
36
Unused
