KTE KT-PPC - Diagram of Power Management Control System

Instruction Manual of
Programmable Power Controller (KT-PPC)
REV
1.6E
PAGE : 6 OF 25
Doc No: TIR9402-30-D01
210*297(mm) KTE CO., LTD TI-06(R0)

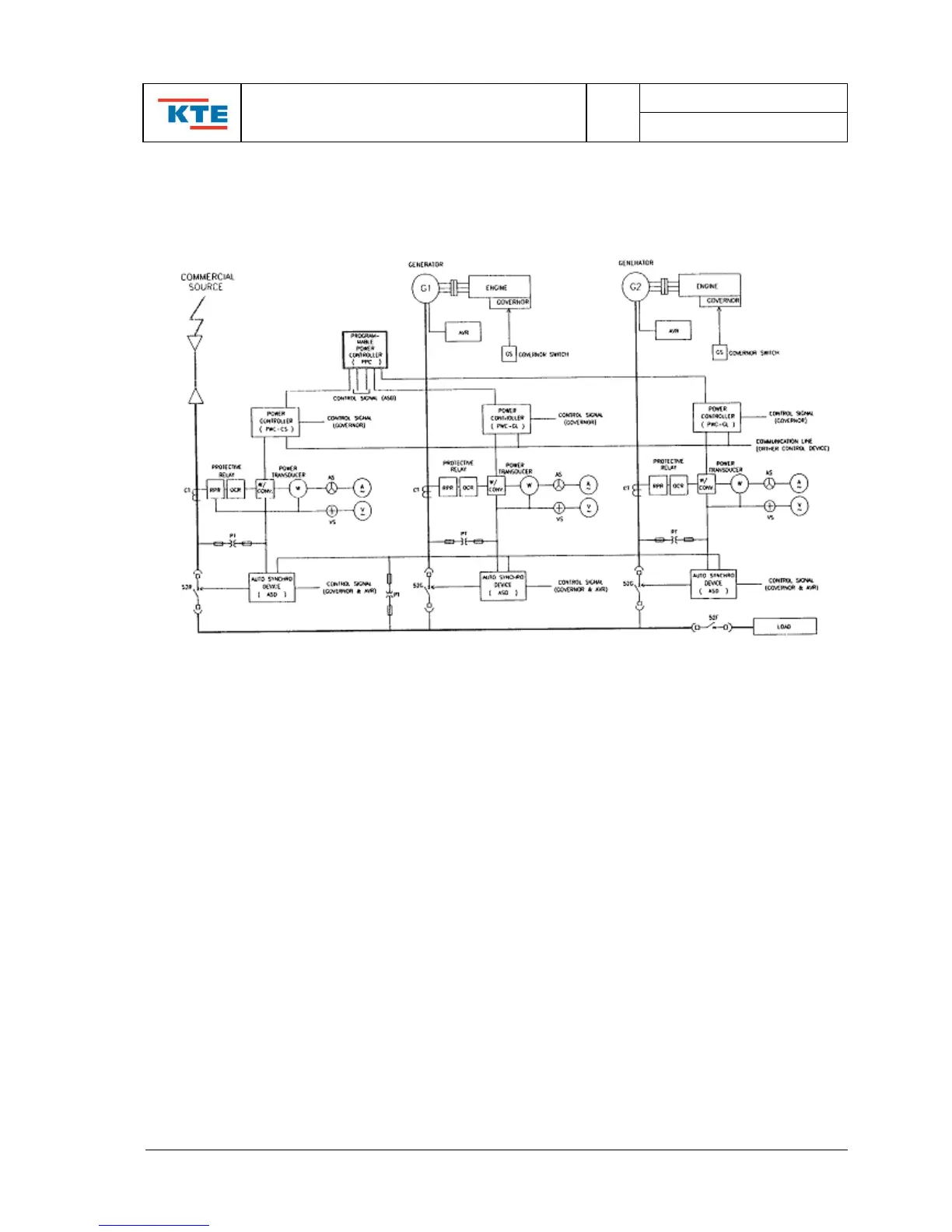

2.2. DIAGRAM OF POWER MANAGEMENT CONTROL SYSTEM
(WITH INCOMING POWER)
<REMARK>
One unit of PWC used for each generator.
(Maximum of 15 units can be used)
