2. SYSTEM CONSTRUCTION

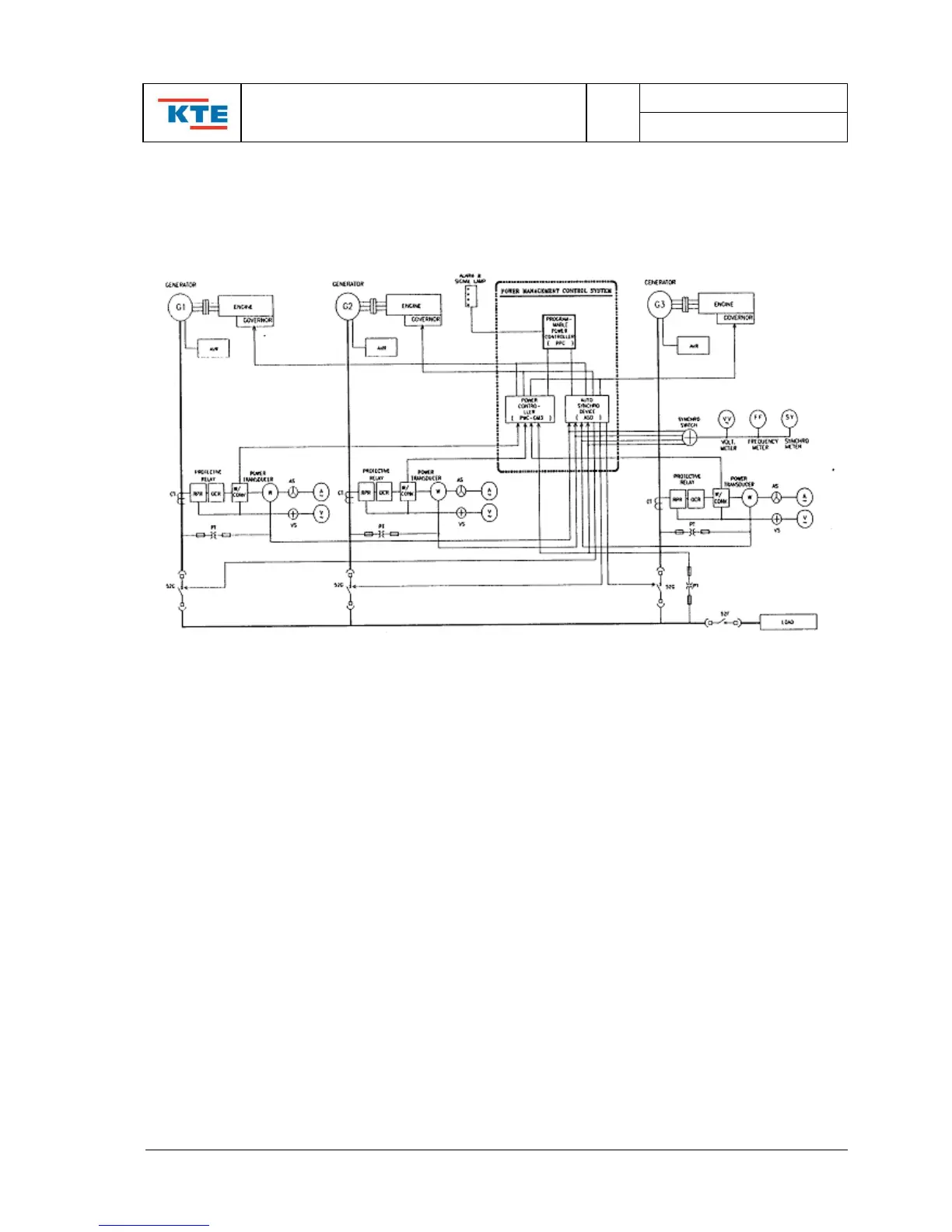

2.1. DIAGRAM OF POWER MANAGEMENT CONTROL SYSTEM (FOR SHIP)
<REMARK>
1. PWC : Generator power controller for ship.
2. Each PWC is used for controlling up to 3 generators
3. PWC can be connected up to max. 5 units by communication line.
