WORK 5
3WORK

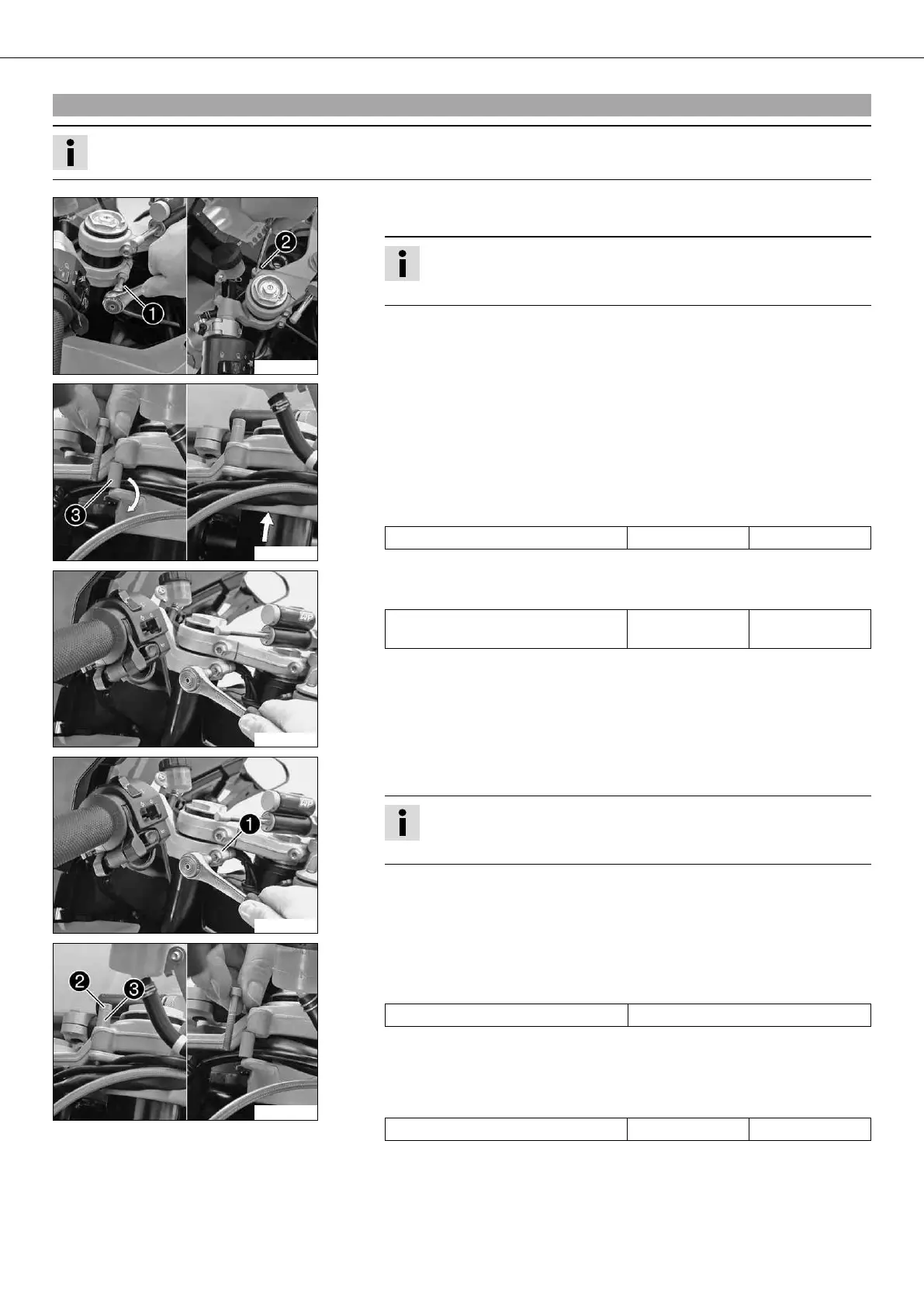

3.1Adjusting the handlebar height
Info
The handlebar stub position must be identical on the left and right of the vehicle.
700318-01
Adjusting the high position of the handlebar stubs:
– Loosen screw .
Info
Loosen the screw several turns to prevent damage to the fork lacquer
when moving the handlebar stub.
– Remove screw .
700319-01
– Remove distance sleeve .
– All cables routed under the upper triple clamp must now be routed under the
handlebar stub.
– Push the handlebar stub carefully up to the upper triple clamp.
– Position the distance sleeve above the triple clamp.
– Mount and tighten the screw.
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)
700320-01
– Tighten the screw.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
– Correct the cable routing.
700320-11
Adjusting the low position of the handlebar stubs:
– Loosen screw .
Info
Loosen the screw several turns to prevent damage to the fork lacquer
when moving the handlebar stub.
700319-11
– Remove screw with distance sleeve .
– Carefully shift the handlebar stub by the length of the distance sleeve.
Guideline
Long distance sleeve 15 mm (0.59 in)
– Lay all cables between the upper triple clamp and the handlebar stub.
– Position the distance sleeves.
– Mount and tighten the screw.
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)
