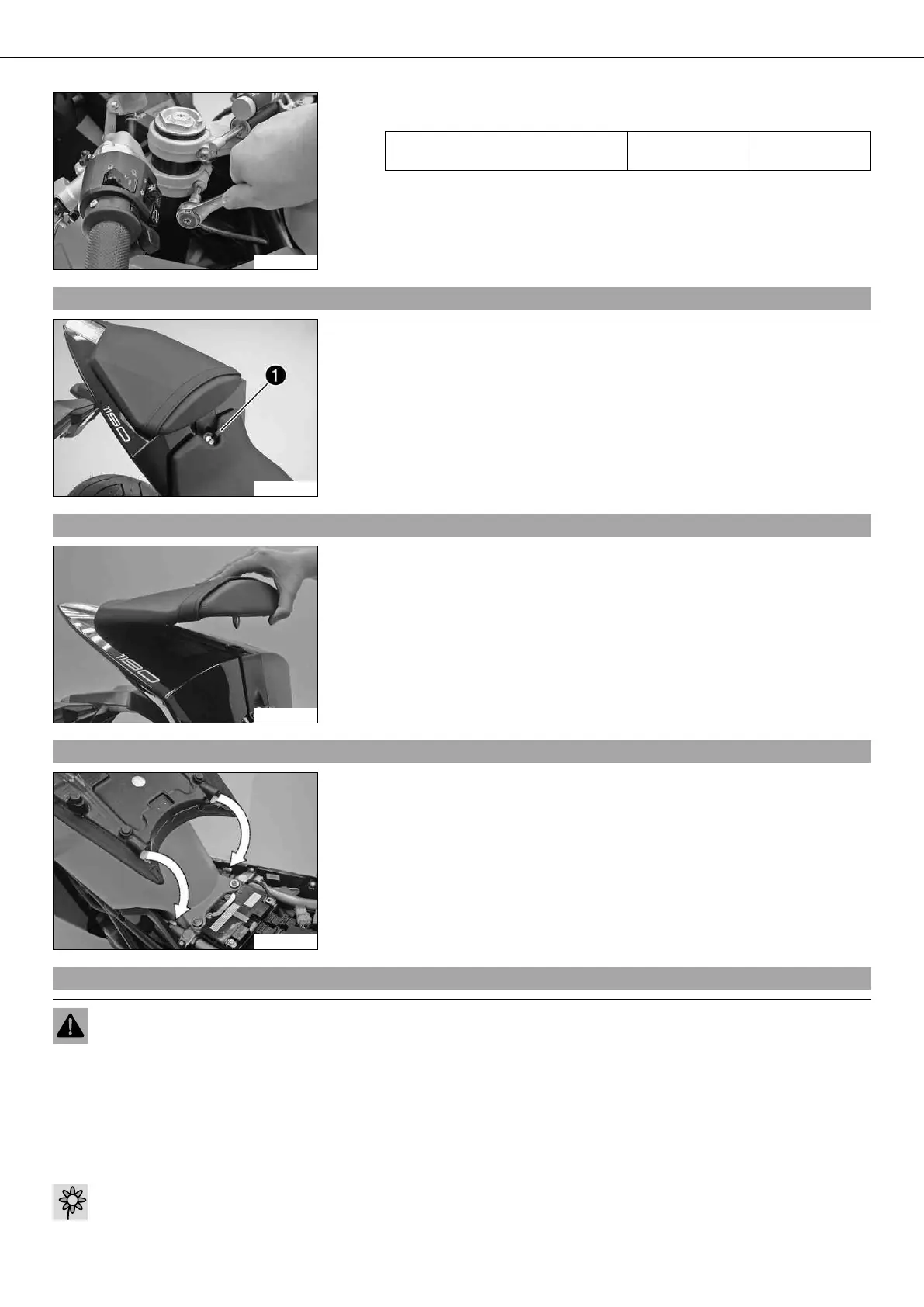

WORK 6
700362-01
– Tighten the screw.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
– Correct the cable routing.
3.2Removing the seat
700245-01
– Insert the ignition key in the seat lock and turn it anticlockwise.
– Raise the rear of the seat, push it towards the rear, and remove it upwards.
3.3Fitting the passenger seat
700275-01
– Position the passenger seat in the space provided.
– Press down the passenger seat until it clicks into place.
– Finally, check that the passenger seat is correctly mounted.
3.4Fitting the seat
700269-01
– Position the recesses of the seat to the lugs on the frame, lower the rear end and
simultaneously push it forward.
– Lock the seat by turning the ignition key in the seat lock.
– Remove the ignition key from the seat lock.
– Finally, check that the seat is correctly mounted.
3.5Recharging the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep the battery away from sparks or open fire. Charge only in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard Components and battery acid are a danger to the environment.
– Do not dispose of batteries in normal household waste. Take defective or used batteries to a battery recycling operator.
