3 WORK
8

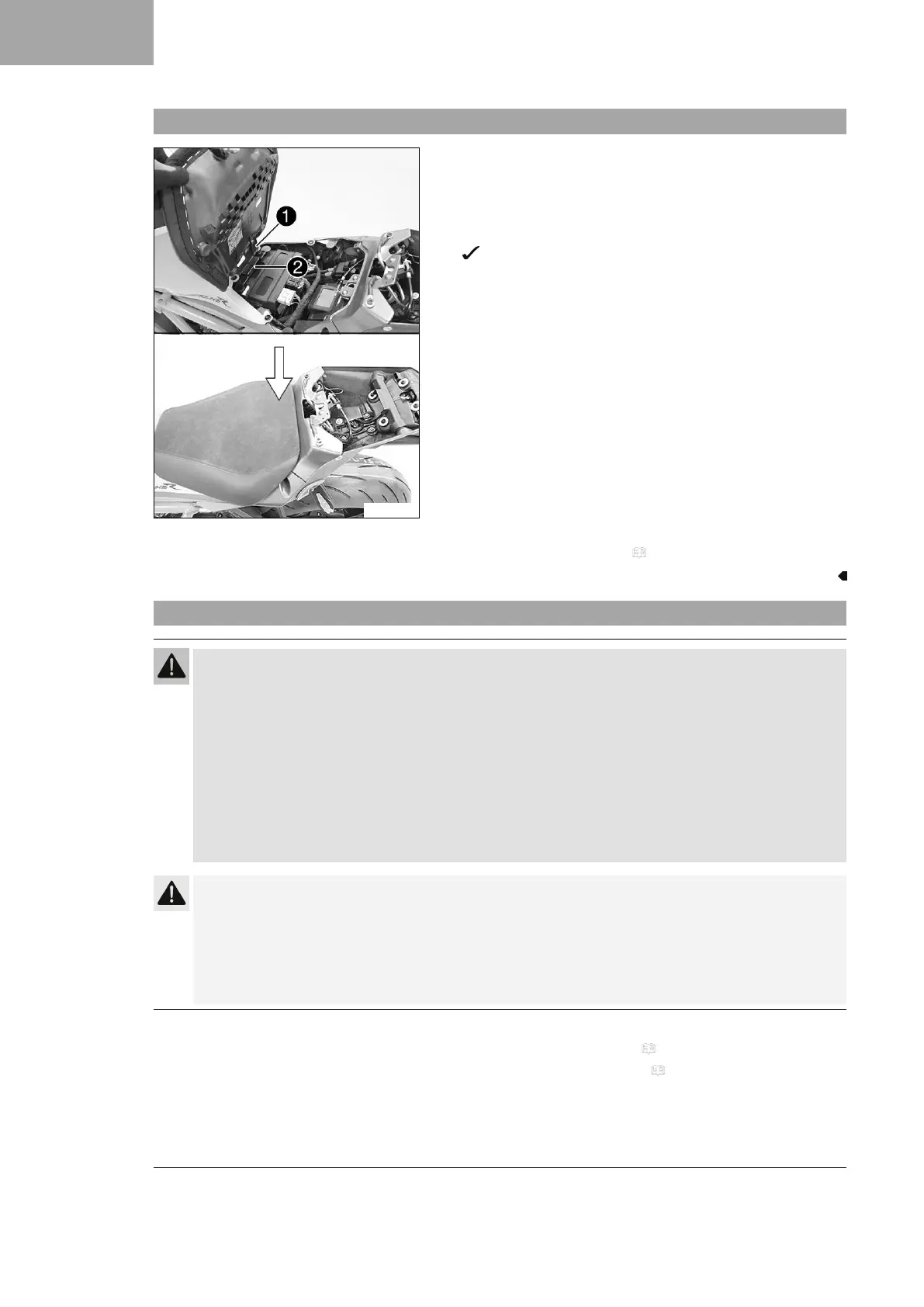

3.4 Mounting the front rider's seat
S03914-10
Main work
Hook recess
1
of the front rider's seat into guide
2
, lower it
at the rear and push it forward.
Position the locking pin in the lock housing and push the pas-
senger seat down at the front.
The locking pin engages with an audible click.
Check that the front rider's seat is mounted correctly.
Finishing work
Mount the passenger seat. ( p. 7)
3.5 Removing the 12-V battery
Warning
Risk of injuryBattery acid and battery gases cause serious chemical burns.
Keep 12 V batteries out of the reach of children.
Wear suitable protective clothing and safety glasses.
Avoid contact with battery acid and battery gases.
Keep sparks or open flames away from the 12 V battery.
Only charge 12 V batteries in well-ventilated rooms.
Rinse the affected area immediately with plenty of water in the event of contact with the skin.
Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Caution
Danger of accidentsElectronic components and safety devices will be damaged if the 12-V battery is dis-
charged or missing.
If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, espe-
cially when starting.
Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.
Preparatory work
Remove the passenger seat. ( p. 7)
Remove the front rider's seat. ( p. 7)
