KTM 1290 Super Duke R Setup Instructions

WORK 3
9
S03934-10

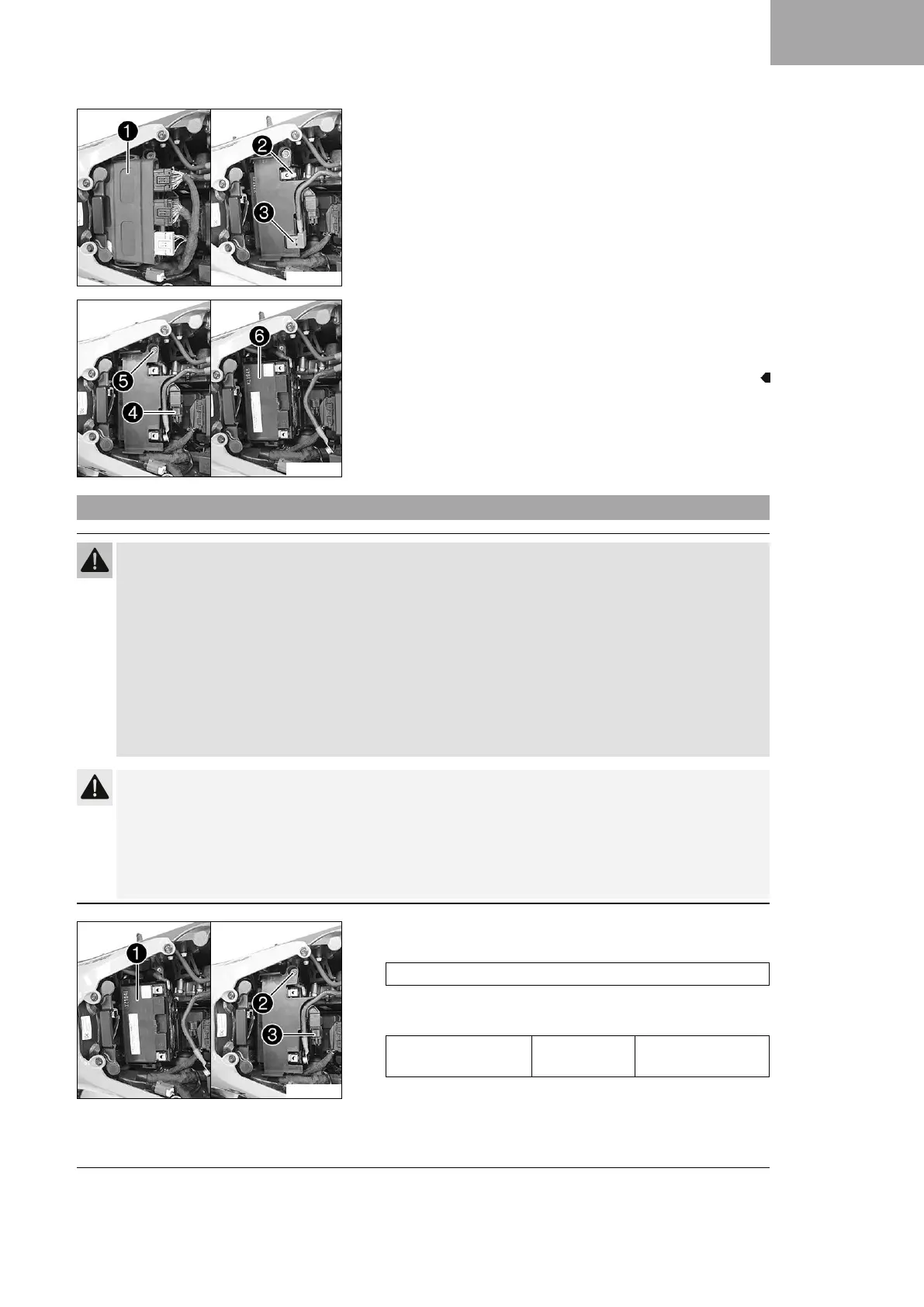

Main work
–
Remove control unit
1
and hang to the side.
–
Disconnect negative cable
2
from the 12-V battery.
–
Remove positive terminal cover
3
and disconnect the posi-
tive cable from the 12-V battery.
S03935-10
–
Disconnect connector
4
.
–
Remove screw
5
and take off the battery cover.
–
Take the 12-V battery
6
out of the battery compartment.
3.6 Installing the 12-V battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep 12 V batteries out of the reach of children.
– Wear suitable protective clothing and safety glasses.
– Avoid contact with battery acid and battery gases.
– Keep sparks or open flames away from the 12 V battery.
– Only charge 12 V batteries in well-ventilated rooms.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes with water for at least 15 minutes and consult a doctor immediately if battery acid and
battery gases get into the eyes.
Caution
Danger of accidents Electronic components and safety devices will be damaged if the 12-V battery is dis-
charged or missing.
If the 12-V battery is discharged or defective, malfunctions in the vehicle electronics can occur, espe-
cially when starting.
– Never operate the vehicle with a discharged 12-V battery or without a 12-V battery.
S03936-10
Main work
–
Insert 12-V battery
1
into the battery compartment.
12-V battery (YTX14-BS)
–
Position the battery cover, mount screw
2
, and tighten.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Join connector
3
.

KTM 1290 Super Duke R Specifications

General

Displacement	1301 cc
Transmission	6-speed
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Starter	Electric starter
Fuel System	Electronic fuel injection
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Wheelbase	1482 mm
Front Tire	120/70 ZR 17
Rear Tire	200/55 ZR 17
Engine Type	V-Twin, 4-stroke
Power	180 hp (132 kW) @ 9500 rpm
Torque	140 Nm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Rear Suspension	WP APEX monoshock
Rear Brake	Brembo two-piston caliper, 240 mm disc
Front Brake	Dual 320 mm discs, Brembo Stylema monobloc calipers
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
