KTM 620 - Maintenance Work on Chassis and Engine; Seat and Tool Kit Access

ENGLISH
13
4
2
3
1
1

WARNING

ALL MAINTENANCE AND ADJUSTEMENT OPERATIONS THAT ARE MARKED WITH A
*
REQUIRE SPECIALIST
KNOWLEDGE. FOR YOUR OWN SECURITY, LET THESE TASKS BE CARRIED OUT BY A KTM-DEALER
!
CAUTION
!
– W
HEN CLEANING THE MOTORCYCLE, DO NOT USE A HIGH PRESSURE CLEANING UNIT IF POSSIBLE, OTHERWISE WATER WILL PENETRATE THE BEARINGS,
CARBURETOR, ELECTRIC CONNECTORS ETC.
– W
HEN TRANSPORTING YOUR KTM, ENSURE THAT IT IS HELD UPRIGHT WITH RESTRAINING STRAPS OR OTHER MECHANICAL FASTENING DEVICES AND THAT
THE FUEL TAP IS IN THE
OFF POSITION - IF THE MOTORCYCLE SHOULD FALL OVER, BE AWARE OF ANY LEAKING FUEL FROM THE CARBURETOR OR
FUEL TANK
– DO NOT USE TOOTHED WASHERS OR SPRING RINGS WITH THE ENGINE FASTENING SCREWS, AS THESE WORK INTO THE FRAME PARTS AND KEEP WORKING
LOOSE
. INSTEAD, USE SELF-LOCKING NUTS.
– LET YOUR MOTORCYCLE COOL DOWN BEFORE BEGINNING ANY MAINTENANCE WORK IN ORDER TO AVOID GETTING BURNED
.
– R
EMOVE OILS, FATTY MATTERS, FILTERS, FUELS, WASHING DETERGENTS ETC. ORDERLY.
– U
NDER NO CIRCUMSTANCES MAY USED OIL BE DISPOSED OF IN THE SEWAGE SYSTEM OR IN THE OPEN COUNTRYSIZE. 1 LITER USED OIL CONTAMINATES
1.000.000 LITERS WATER.

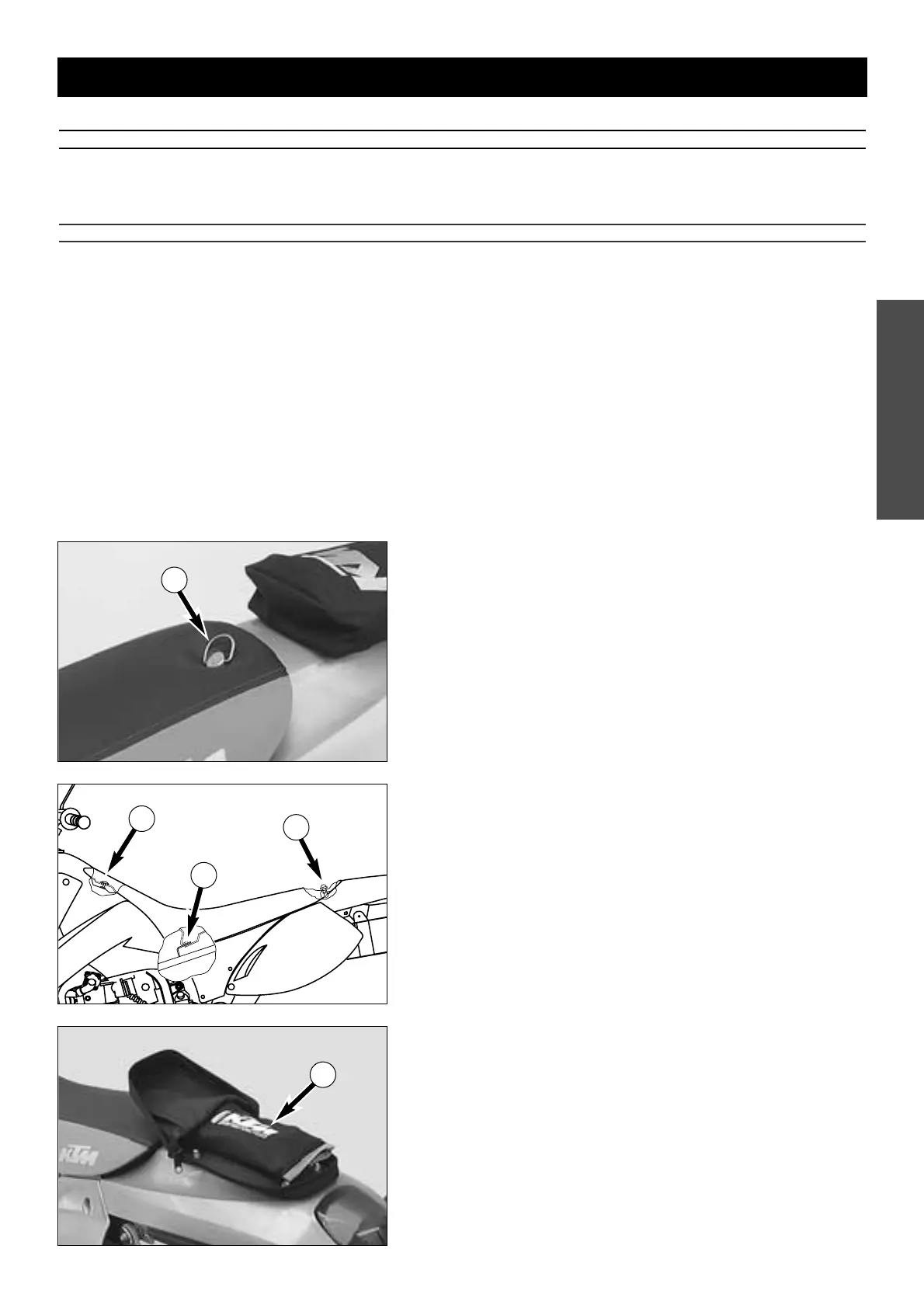

Removal of seat
By using the quick-release fastener 1, the seat can be removed without
using tools. Turn the quick-release fastener about 180° counter clockwise
and lift up the rear of the seat. Pull the seat backwards and unhook it from
the front fastener screw
2.
When installing the seat, be sure to insert the rear portion of the seat into
the metal clasp
3.
Tool set
The tool set 4 is accommodated in the tool compartment behind the seat.
MAINTENANCE WORK ON CHASSIS AND ENGINE
