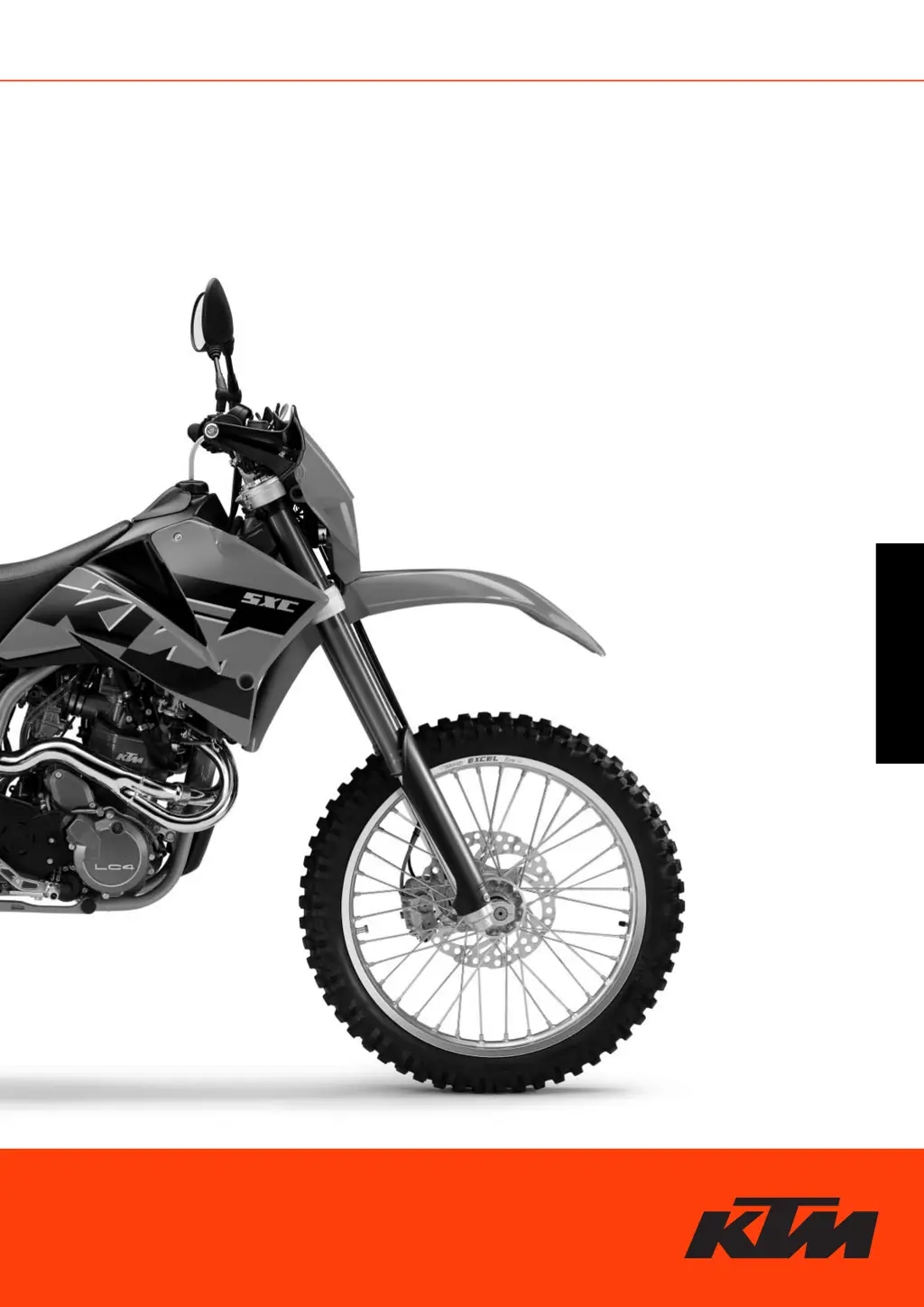

KTM 625 SXC - User Manual

Other manuals for KTM 625 SXC

Spare Parts Manual40 pages

Questions and Answers

S
Sonia MckenzieAug 18, 2025
What to do if my KTM 625 SXC engine doesn't crank?
- T
  Troy MendezAug 18, 2025
  If your KTM Motorcycle engine doesn't crank, first, ensure the ignition is turned on. If that's not the issue, the battery might be discharged, requiring a recharge. If the problem persists, check the ignition lock and emergency OFF switch, or examine the fuses for the safe-starting system (SXC: fuse (3), SMC: fuse (2)) and the main fuse. If the fuse blows again, it is recommended to contact a KTM dealer.
B
Brian ChungAug 21, 2025
What to do if my KTM Motorcycle engine overheats?
- D
  Debbie JonesAug 21, 2025
  If your KTM Motorcycle engine overheats, first check if there is sufficient cooling liquid and refill if necessary, also check the cooling system for leaks. Clean the radiator if the fins are dirty. If foam forms in the cooling system, replace the cooling liquid with a brand-name antifreeze. Check for bent radiator hoses and replace or shorten them. For SMC models, check the fan fuse and the thermoswitch. If problems persist, contact a KTM dealer.
X
xcrossAug 25, 2025
Why does my KTM 625 SXC Motorcycle battery keep discharging?
- B
  brian07Aug 25, 2025
  Your KTM Motorcycle battery might be discharging because the ignition was left on. Recharge the battery. Also, the battery might not be charging because of a problem with the generator. In this case, remove the seat and check the voltage regulator connections. It is recommended that a KTM dealer check the voltage regulator and generator.
V
vbellAug 27, 2025
Why KTM 625 SXC engine will not reach full power?
- B
  baileychristopherAug 27, 2025
  If your KTM Motorcycle engine will not reach full power, the fuel supply may be partially interrupted, or the carburetor may be dirty, so clean and check the fuel system and carburetor. If the float leaks, replace it. If the air filter is very dirty, clean or replace it. If the valve clearance is too small, have it adjusted. If there is loss of compression because the hand decompressor has no play, check the setting of the hand decompression cable. If the electronic ignition timing is faulty, have the ignition system checked.
R
Richard DavisAug 30, 2025
What causes high oil consumption in a KTM Motorcycle?
- P
  Paul JohnstonAug 30, 2025
  High oil consumption in your KTM Motorcycle can be caused by a buckling gear ventilation hose, which should be readjusted or replaced. Also, check the engine oil level when the engine is warm and correct it if it's too high. Finally, the engine oil might be too thin, so use a thicker engine oil.
P
Patricia MartinSep 2, 2025
What to do if KTM 625 SXC Motorcycle engine fails to idle?
- B
  Benjamin NewtonSep 2, 2025
  If your KTM Motorcycle engine fails to idle, the idling jet may be clogged. In this case, disassemble the carburetor and clean the jets. The adjusting screws on the carburetor may also be incorrectly adjusted, so have the carburetor adjusted. A defective spark plug can also cause this issue, so replace the spark plug. Finally, a defective ignition system can be the cause, so have the ignition system checked.
Q
qhoffmanSep 5, 2025
Why KTM 625 SXC engine does not rev high?
- R
  Robert ChurchSep 6, 2025
  If your KTM Motorcycle engine does not rev high, the carburetor fuel level might be too high because the float needle is dirty or worn out, so dismount the carburetor and check if it is worn out. If the float leaks, replace the float needle. If the carburetor jets are loose, tighten the jets. If the electronic ignition timing is faulty, have the ignition system checked.
A
Alicia RamirezSep 8, 2025
What to do if KTM Motorcycle headlight and parking light fail?
- W
  wleonardSep 8, 2025
  If the headlight and parking light fail on your KTM Motorcycle, replace the fuse. For SXC models, replace fuse (5); for SMC models, replace fuse (4).
D
david41Sep 12, 2025
What to do if KTM 625 SXC Motorcycle flasher lights, brake light and horn fail?
- C
  Curtis FowlerSep 12, 2025
  If the flasher lights, brake light, and horn fail on your KTM Motorcycle, replace the fuse. For SXC models, replace fuse (4); for SMC models, replace fuse (3).
C
Cynthia MillerNov 15, 2025
What to do if KTM 625 SXC engine cranks but doesn’t start?
- L
  Leah PayneNov 15, 2025
  If your KTM Motorcycle engine cranks but doesn’t start, make sure the fuel tap is open and that there is fuel in the tank. Ensure you are using the choke or warm start device correctly. If the motorcycle has been out of operation for more than a week, drain the old fuel from the float chamber. Check for fuel supply interruptions by removing the drain plug from the carburetor. If the engine is flooded, fully open the throttle when starting, or replace the spark plug. Clean or replace a sooty or wet spark plug. Adjust the spark plug electrode gap to 0.9 mm. Inspect the spark plug connector and spark plug for faults, ensuring a strong spark is produced. Clean the plug connections of the CDI-unit, pulse generator, and ignition coil with contact spray. Finally, check for water in the carburetor...

Summary

IMPORTANT INFORMATION

Intended Use and Manual Guidance

KTM motorcycles are designed for competition and road use; read manual for proper operation and maintenance.

Service and Warranty

Service work and records are required for warranty documentation; observe service schedules.

Operational Guidelines

Covers automotive fluids, spare parts, transport, and environmental considerations.

SERIAL NUMBER LOCATIONS

Chassis and Engine Identification

Locating the chassis and engine numbers stamped on the motorcycle.

OPERATION INSTRUMENTS

Handlebar Controls

Details on clutch lever, decompression lever, brake levers, and indicator lamps.

Electronic Speedometer Functions

Explains speedometer modes, wheel size, speed, ODO, LAP, MAX, TR1/TR2, A1/A2, S1/S2, clock, and units.

Ignition and Electrical Switches

Covers ignition lock, combination switch, flasher, emergency OFF button, and filler cap.

Engine Controls

Details on fuel tap, choke, hot start device, shift lever, and kickstarter.

Foot Controls and Locks

Information on the foot brake pedal and handlebar lock mechanism.

Suspension Adjustments

Guide to adjusting compression and rebound damping for fork and shock absorber.

STARTING AND DRIVING GUIDELINES

Initial Operation and Break-in

Instructions for initial operation and the break-in procedure for LC4 models.

General Riding Safety

Covers safety warnings, advice on accessories, payload, and general riding precautions.

Pre-Ride Checks

Essential checks to perform before each start to ensure safe operation.

Starting Procedures

Step-by-step guidance for starting the engine when cold, warm, or flooded.

Riding and Braking Techniques

Guidance on shifting, riding, braking, stopping, and parking the motorcycle safely.

Stopping, Parking, and Fuel

Covers side stand use, fuel requirements, and safety precautions.

PERIODIC MAINTENANCE SCHEDULE

MAINTENANCE WORK ON CHASSIS AND ENGINE

Chassis and Wheel Systems

Covers seat removal, tool kit, steering head bearing, wheels, tires, chain, and suspension.

Brake System Servicing

Details on brake fluid, pads, levers, discs, and related maintenance tasks.

Engine and Fuel System Maintenance

Includes air filter, exhaust, cooling system, fuel tap, and carburetor maintenance.

Lubrication and Oil System Service

Covers clutch system maintenance, engine oil checks, and oil filter replacement.

Electrical System Maintenance

Information on battery, fuses, bulbs, and headlight maintenance.

TROUBLE SHOOTING

CLEANING AND STORAGE

Motorcycle Cleaning Procedures

Guidelines for cleaning the motorcycle and using protective agents.

Winter Storage and Re-initiation

Instructions for storing the motorcycle and preparing it after storage.

TECHNICAL SPECIFICATIONS

Engine Specifications

Detailed specifications for the motorcycle's engine.

Chassis Specifications

Details on frame, suspension, brakes, wheels, tires, and electrical components.

Chassis Tightening Torques

List of chassis components and their specified tightening torques.

WIRING DIAGRAM AND CABLE COLORS

Wiring Diagram

Schematic representation of the motorcycle's electrical system.

Cable Color Identification

List of cable colors and their meanings in multiple languages.

KTM 625 SXC Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	625 cc
Bore x Stroke	101 mm x 78 mm
Cooling System	Liquid cooled
Transmission	5-speed
Front Suspension	WP USD 48 mm
Compression Ratio	11.5:1
Rear Suspension	WP shock absorber
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel System	Keihin carburetor
Starter	Electric
Ignition	Kokusan
