KTM 620 - Indicator Lamps and Speedometer; Handlebar Switches

ENGLISH
5
8
9
A
B
C
TRP
STP
DST
CLK
3
1
2

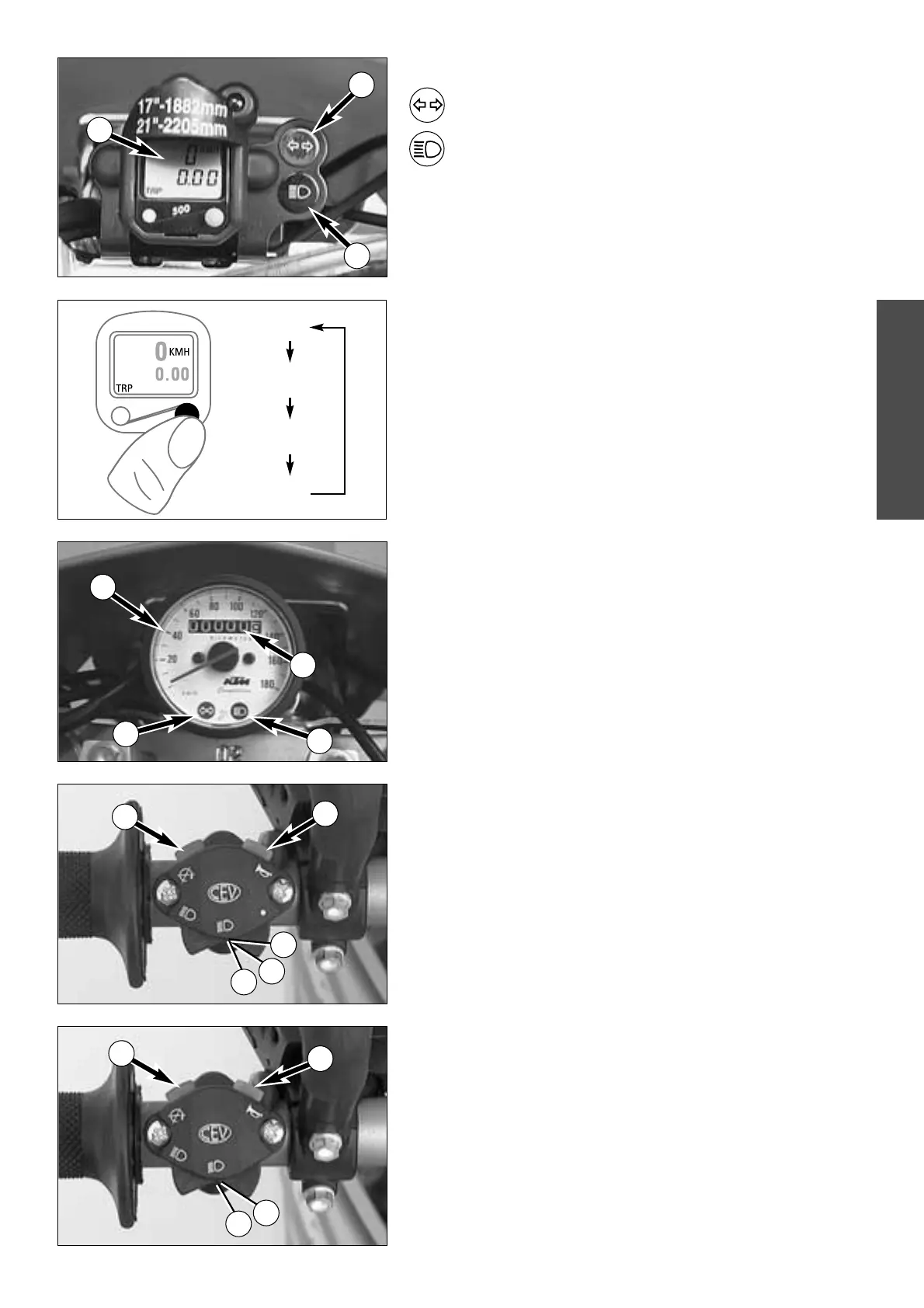

Indicator lamp
The green control lamp 1 flashes when the indicator is working in
the same rhythm as the flashing indicator.
The blue control lamp
2 lights up when the high beam is on.
Speedometer – digital
Some models are equipped with a digital speedometer 3.
KMH = Speed, max. 200 km/h (is always indicated)
Aside from speed indication the following indications can be selected:
TRP = Trip distance
STP = Stopwatch max. 10 h, automatic start/stop function
DST = Total distance up to 99.999 km
CLK = Reloj
See maintenance work for change of battery and basic setting.
Speedometer, indicator lamps
The mileage indicator B in the speedometer 4 indicates overall mileage.
When the turn indicator is on, the green indicator lamp
5 will be flashing in
the same rhythm.
The blue indicator lamp
6 will be lit when the high beam is on
Combination switch
The light switch has 3 switch positions.
A = Light off
B = Low beam light
C = High beam light
The red short circuit button
8 serves to switch off the engine. Leave the
switch pressed, until the engine stops. With the button
9 the horn will
sound.
Combination switch (AUS)
The light switch has 3 switch positions.
B = Low beam light
C = High beam light
The red short circuit button
1 serves to switch off the engine. Leave the
switch pressed, until the engine stops. With the button
2 the horn will
sound.
