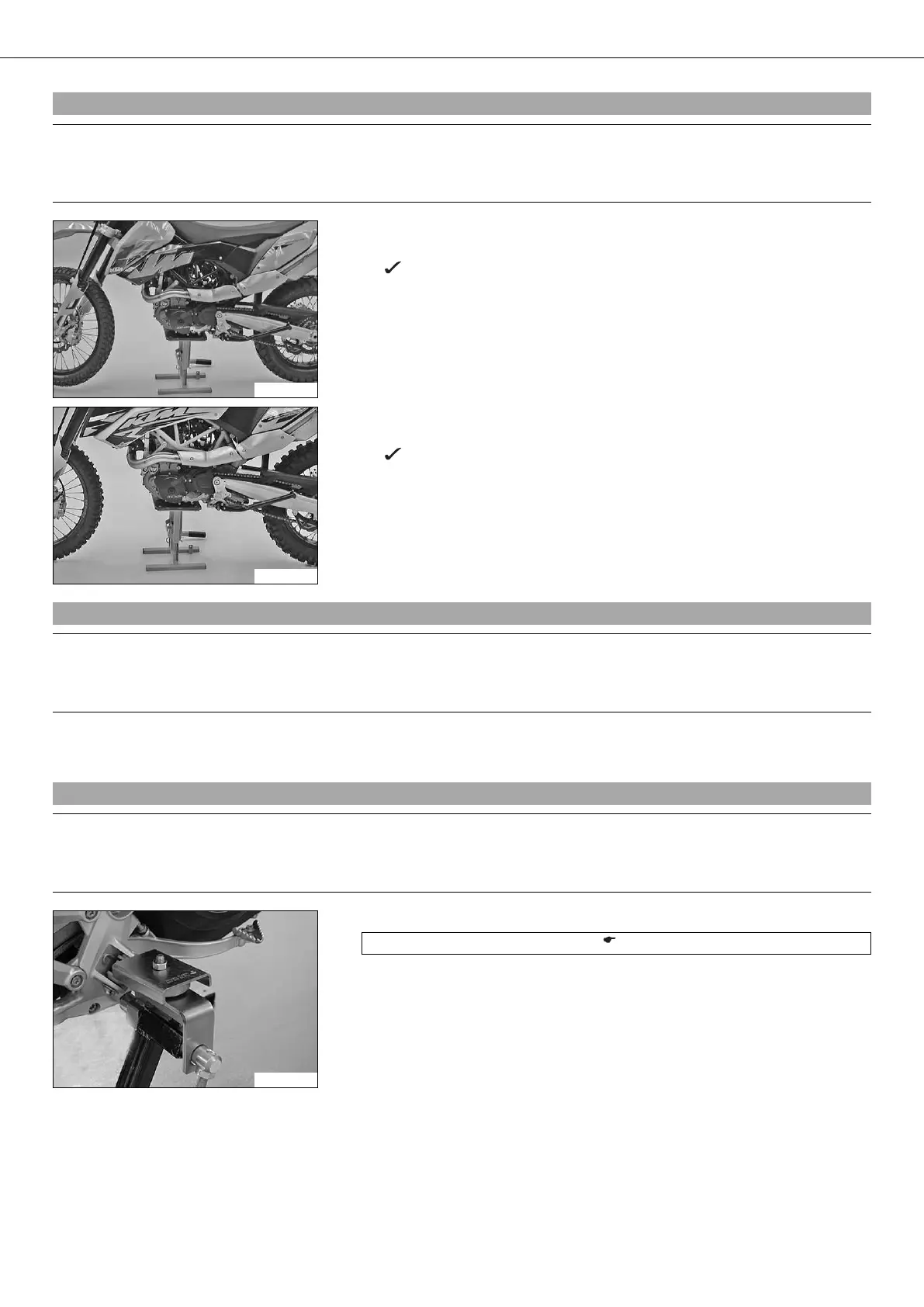

4.1Raising the motorcycle with the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
800073-10
(690 Enduro)
– Raise the motorcycle using the underride guard under the motorcycle.
The wheels must no longer touch the ground.
– Secure the motorcycle against falling over.
800089-10
(690 Enduro R)
– Raise the motorcycle using the underride guard under the motorcycle.
The wheels must no longer touch the ground.
– Secure the motorcycle against falling over.
4.2Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
– Remove the motorcycle from the lift stand and rest it on its side stand.
– Remove the lift stand.
4.3Raising the motorcycle with the work stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
300579-10
– Mount the special tool on the footrest.
Work stand adapter (75029036000) ( p. 250)

KTM 690 Enduro R USA 2010 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	102 mm x 80 mm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Seat Height	910 mm (35.8 in)
Front Suspension	WP USD 48 mm
Rear Suspension	WP Monoshock
Tires (Front)	90/90-21
Tires (Rear)	140/80-18
Ground Clearance	280 mm (11 in)
Starter	Electric
Power	67 hp
Fuel Tank Capacity	12 liters
Rear Brake	240 mm disc
Ignition	Electronic ignition
Wheelbase	1500 mm (59.1 in)
Frame	Chromoly steel trellis frame
Front Wheel	21"
Rear Wheel	18 inch
Front Brake	Single 300 mm disc, 2-piston caliper
