KTM 690 Enduro R USA 2010 User Manual

38/LUBRICATION SYSTEM 173
100201-01

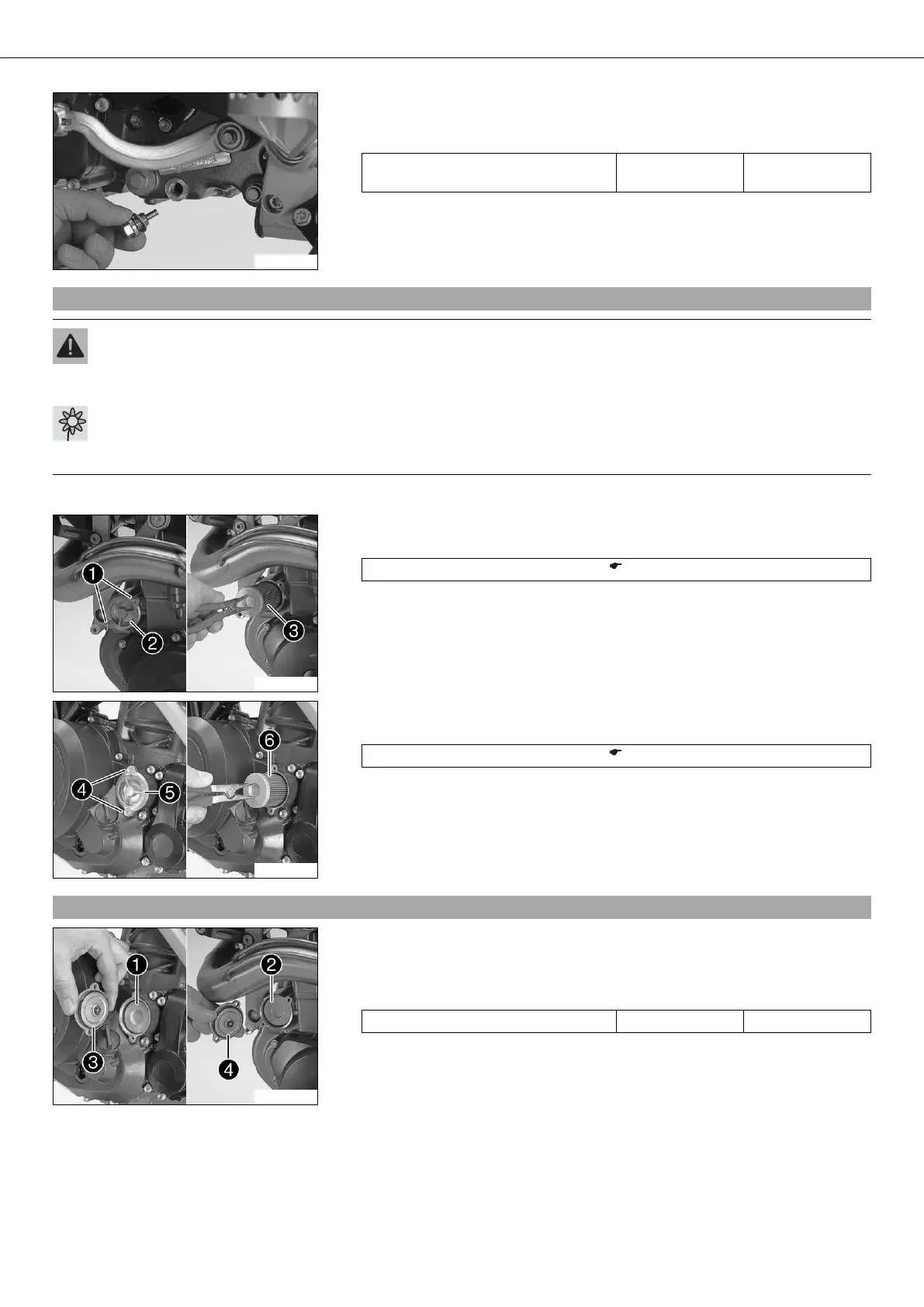

– Thoroughly clean the oil drain plug with a magnet.
– Mount the oil drain plug with the magnet and seal ring and tighten it.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
23.6Removing the oil filter
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
– Place a suitable container under the engine.
100202-10
– Remove screws . Remove the oil filter cover  with the O-ring.
– Pull oil filter  out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 246)
100203-10
– Remove screws . Remove oil filter  with the O-ring.
– Pull oil filter  out of the oil filter housing.
Circlip pliers reverse (51012011000) ( p. 246)
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing area.
23.7Installing the oil filter
100204-10
– Insert oil filters  and .
– Oil the O-rings of the oil filter cover. Fit the oil filter covers  and .
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)

KTM 690 Enduro R USA 2010 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	102 mm x 80 mm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Seat Height	910 mm (35.8 in)
Front Suspension	WP USD 48 mm
Rear Suspension	WP Monoshock
Tires (Front)	90/90-21
Tires (Rear)	140/80-18
Ground Clearance	280 mm (11 in)
Starter	Electric
Power	67 hp
Fuel Tank Capacity	12 liters
Rear Brake	240 mm disc
Ignition	Electronic ignition
Wheelbase	1500 mm (59.1 in)
Frame	Chromoly steel trellis frame
Front Wheel	21"
Rear Wheel	18 inch
Front Brake	Single 300 mm disc, 2-piston caliper
