38/LUBRICATION SYSTEM 170

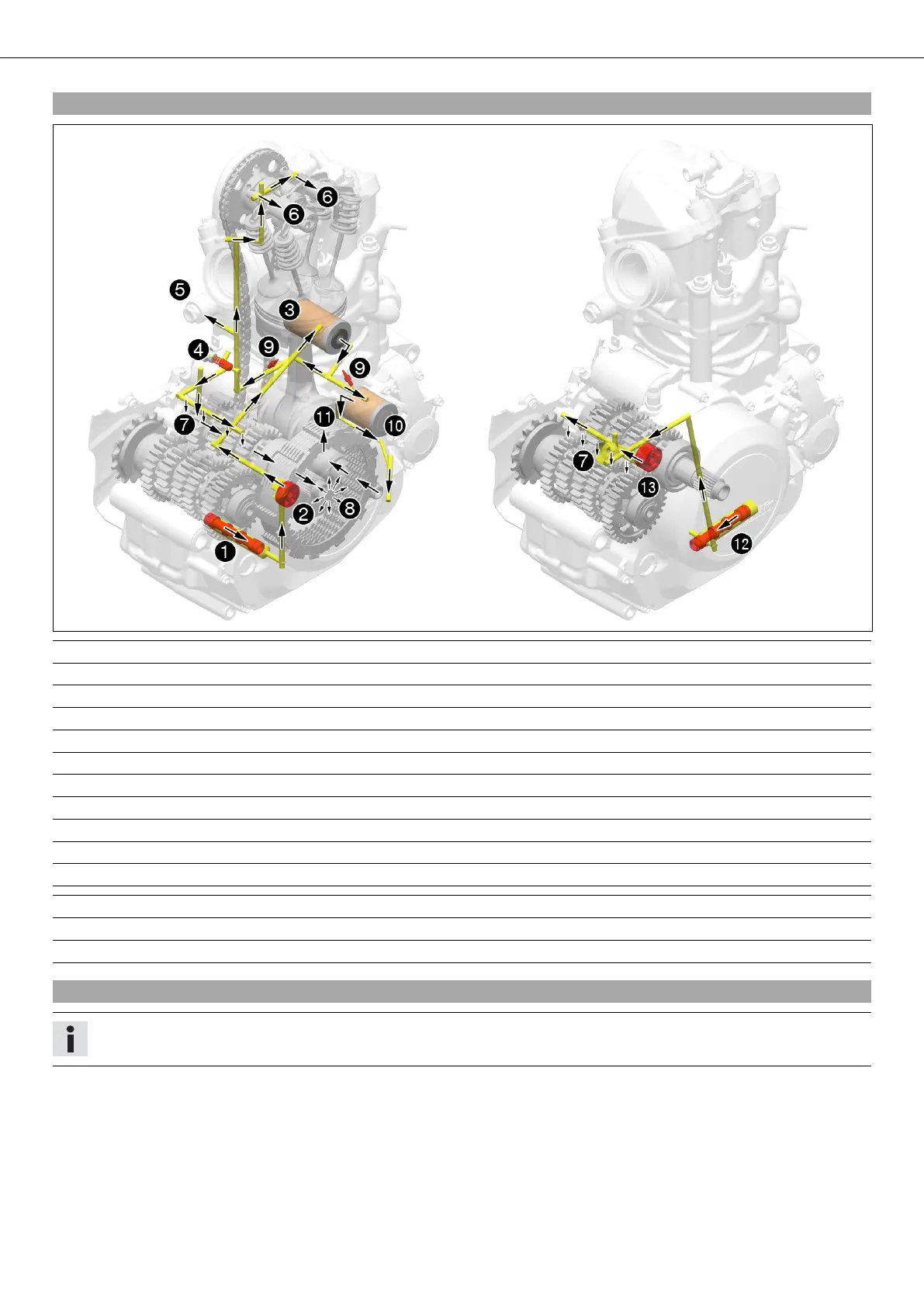

23.1Oil circuit
400500-60
1 Oil screen
2 Force pump
3 Oil filter
4 Oil pressure regulator valve
5 Timing chain tensioner
6 Rocker arm shaft
7 Transmission
8 Clutch
9 Oil jet for piston cooling
10 Oil filter
11 Crankshaft
12 Oil screen
13 Suction pump
7 Transmission
23.2Checking the engine oil level
Info
The engine oil level must be checked when the engine is warm.
Condition
The engine is at operating temperature.
– Stand the motorcycle upright on a horizontal surface.

KTM 690 Enduro R USA 2010 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	102 mm x 80 mm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Seat Height	910 mm (35.8 in)
Front Suspension	WP USD 48 mm
Rear Suspension	WP Monoshock
Tires (Front)	90/90-21
Tires (Rear)	140/80-18
Ground Clearance	280 mm (11 in)
Starter	Electric
Power	67 hp
Fuel Tank Capacity	12 liters
Rear Brake	240 mm disc
Ignition	Electronic ignition
Wheelbase	1500 mm (59.1 in)
Frame	Chromoly steel trellis frame
Front Wheel	21"
Rear Wheel	18 inch
Front Brake	Single 300 mm disc, 2-piston caliper
