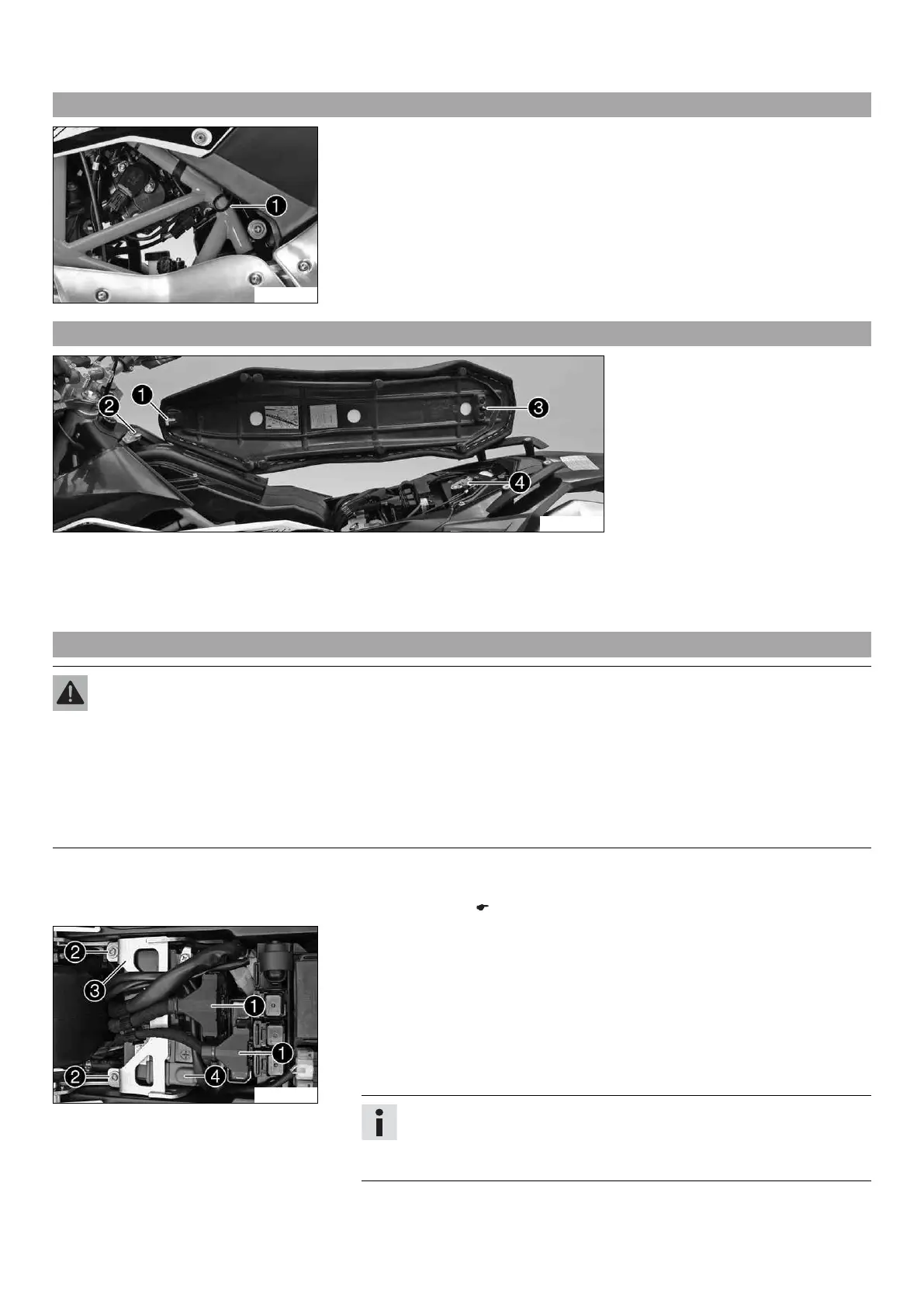

3 WORK 6
3.1 Removing the seat
601869-10
– Pull on strap 1 and raise the rear of the seat at the same time.
– Pull back the seat and lift it off.
3.2 Mounting the seat
601887-10
– Hook slot 1 of the seat onto screw 2, press the rear downward and at the same time push it forward.
– Push locking pin 3 into lock housing 4 and push the back of the seat down until the locking pin locks in place with an audible
click.
– Finally, check that the seat is correctly mounted.
3.3 Removing the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep the battery away from sparks or open flames. Charge only in well-ventilated areas.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 6)
601907-10
Main work
– Disconnect the negative (minus) cable of the battery.
– Pull off the plug connector 1 upwards.
– Remove screws 2.
– Pull the retaining bracket 3 of the battery forward and remove it.
– Take off the positive pole cover 4.
– Disconnect the positive (plus) cable of the battery.
– Push the wiring harness to the side and pull the battery out of the battery rack.
Info
Never operate the motorcycle with a discharged battery or without a battery.
In both cases, electrical components and safety devices can be damaged.
The vehicle is therefore no longer roadworthy.
