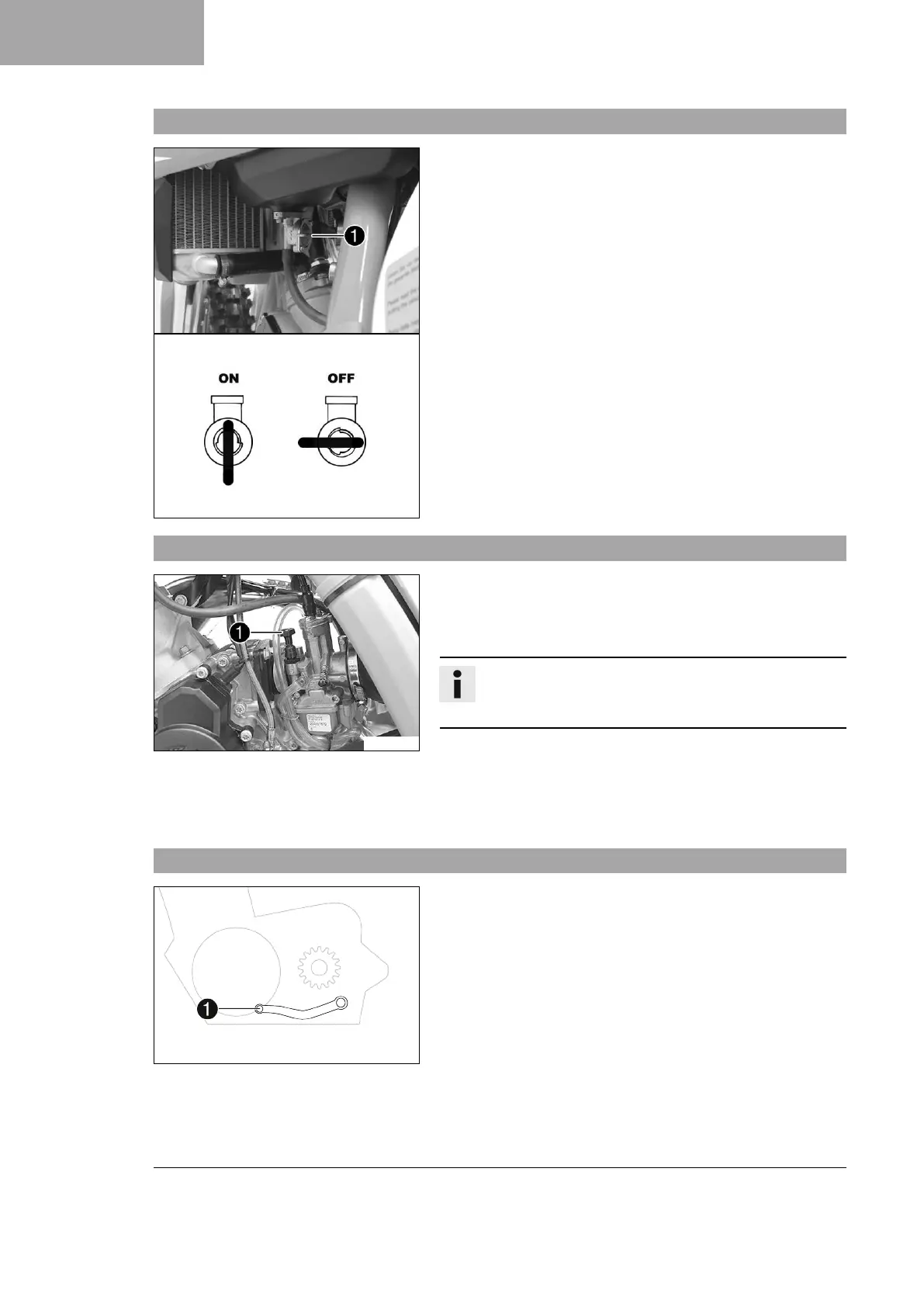

6.7 Fuel tap
V00817-10
The fuel tap is on the left side of the fuel tank.
Using the tap handle
1
on the fuel tap, you can open or close
the fuel supply to the carburetor.
Possible states
• Fuel supply closed OFF – Fuel cannot flow from the fuel tank
to the carburetor.
• Open fuel supply ON – Fuel can flow from the fuel tank to the
carburetor. The fuel tank empties completely.
6.8 Choke
V00818-10
Choke
1
is fitted on the left side of the carburetor.
Activating the choke function frees a drill hole in the carburetor
through which the engine can draw extra fuel. This results in a
richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deacti-
vated.
Possible states
• Choke function activated – The choke lever is pulled out to
the stop.
• Choke function deactivated – The choke lever is pushed in to
the stop.
6.9 Shift lever
401950-10
Shift lever
1
is mounted on the left side of the engine.
