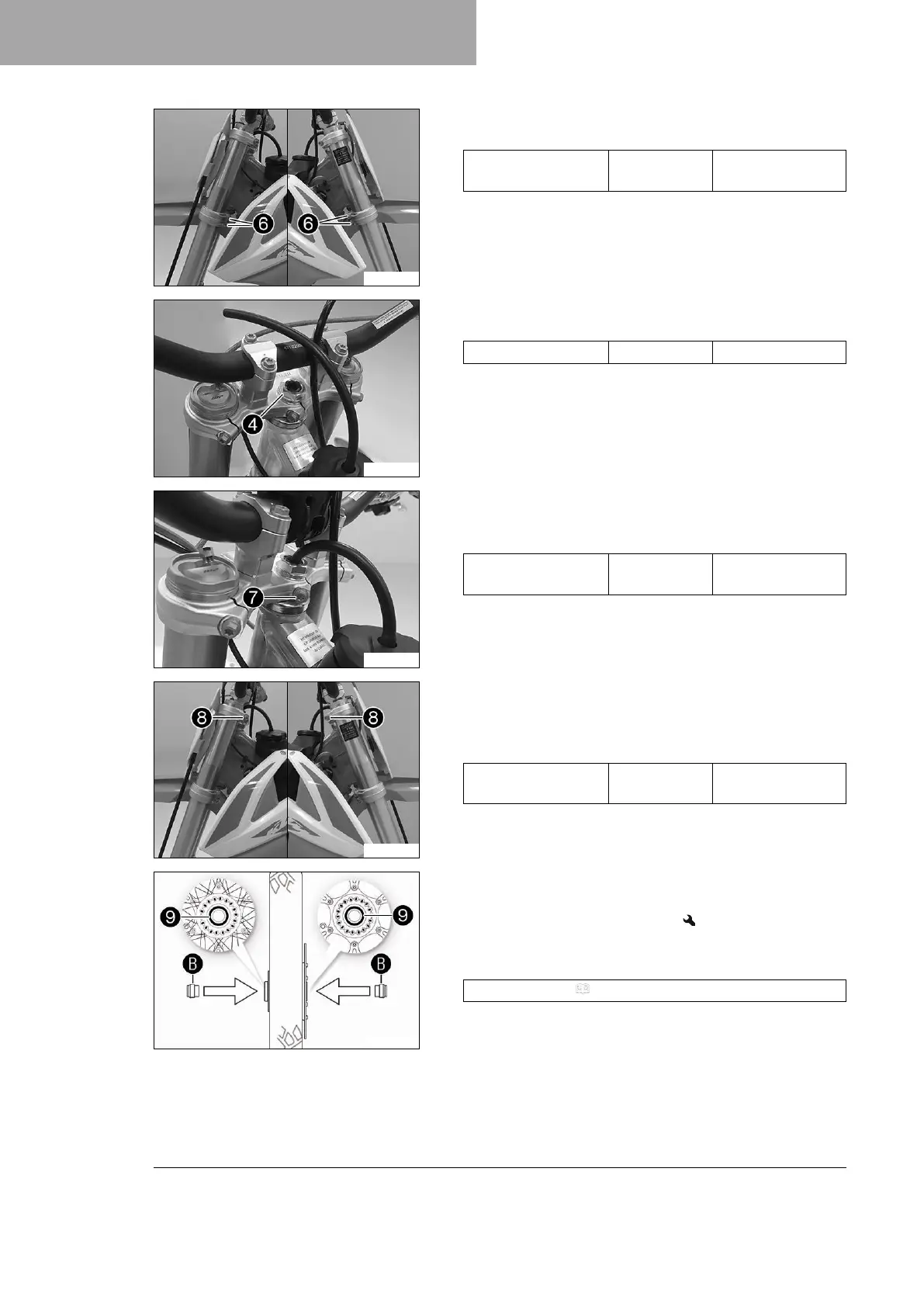

11 SERVICE WORK ON THE CHASSIS
50
S03454-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
S03419-10
–
Tighten nut
4
.
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
S03416-11
– Position the fuel tank breather in the steering stem.
–
Tighten screw
7
.
Guideline
Steering stem clamp
screw
M8 20 Nm (14.8 lbf ft)
S03420-10
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
S03455-10
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change front wheel bearing.
–
Clean and grease shaft seal rings
9
and contact surfaces
B
of the spacers.
Long-life grease ( p. 124)
– Insert the spacers.
