KTM 890 ADVENTURE R 2023 Setup Instructions

WORK 3
9

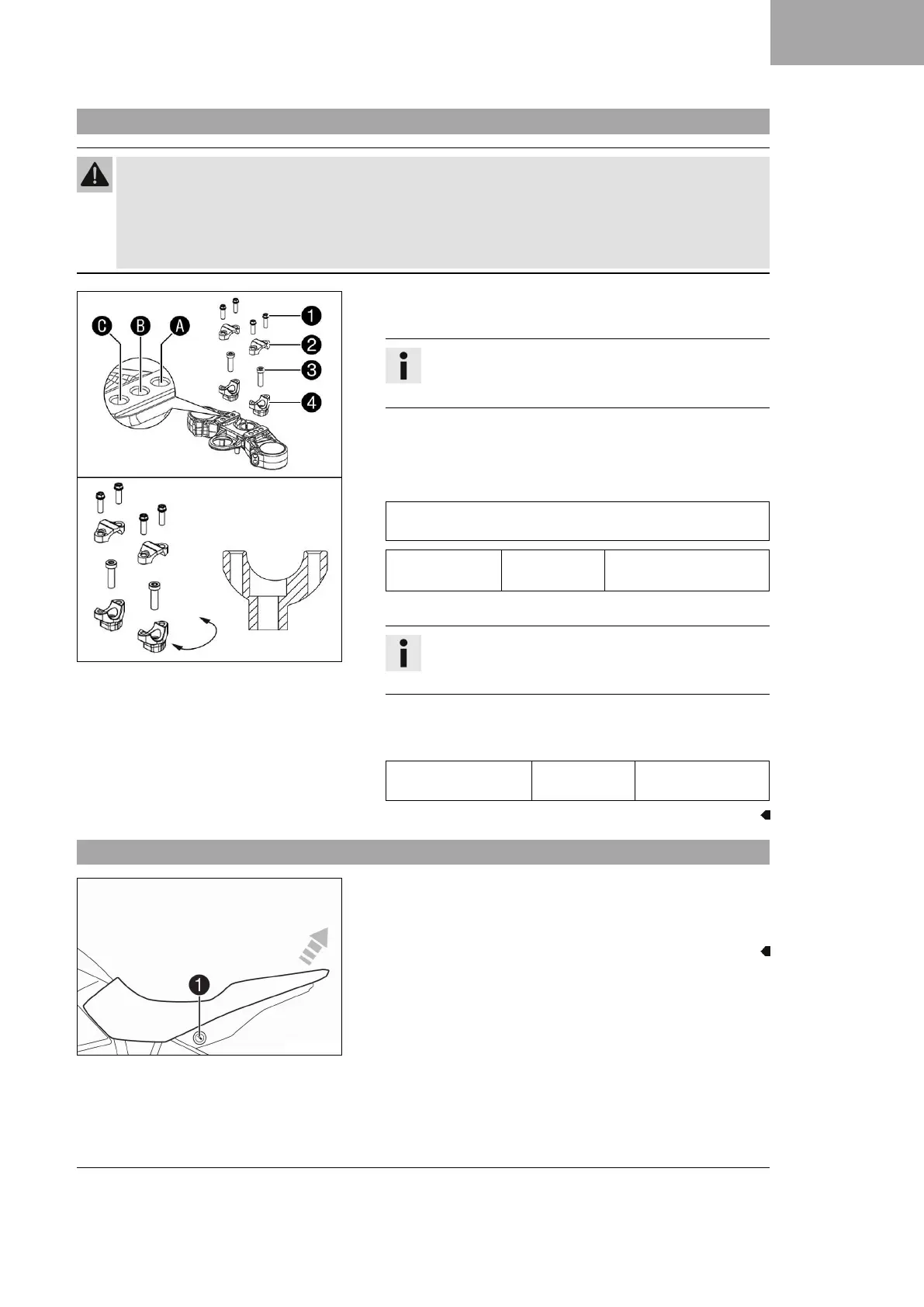

3.1 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
F01907-10
–
Remove screws
1
. Take off the handlebar clamps
2
. Posi-
tion the handlebar so that screws
3
are accessible.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
3
. Take off handlebar supports
4
.
–
Move the handlebar supports into the desired position
B
,
A
or
C
. Mount and tighten screws
3
.
Guideline
Mount the left and right handlebar supports in the same
position.
Screw, handle-
bar support
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position handlebar clamp. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
3.2 Removing the seat
H02022-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
– Raise the rear of the seat, pull the seat back, and lift it off.
–
Remove the ignition key.

KTM 890 ADVENTURE R 2023 Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cc
Transmission	6-speed
Front Suspension	WP XPLOR-USD, Ø 48 mm
Bore x Stroke	90.7 mm x 68.8 mm
Compression Ratio	13.5:1
Fuel System	Electronic Fuel Injection
Final Drive	Chain
Front Tire	90/90-21
Rear Tire	150/70-18
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Frame	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Power	105 hp (77 kW) @ 8, 000 rpm
Torque	100 Nm
Fuel Tank Capacity	20 liters
Seat Height	880 mm (34.6 in)
Dry Weight	196 kg (432 lb)
Rear Suspension	WP XPLOR PDS shock absorber
Front Brake	2x radially mounted 4-piston calipers
Rear Brake	2-piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering-ABS and offroad mode)
Wheels Front	21"
Wheels Rear	18"
Chain	520
Steering Head Angle	63.5°
Ground Clearance	263 mm
