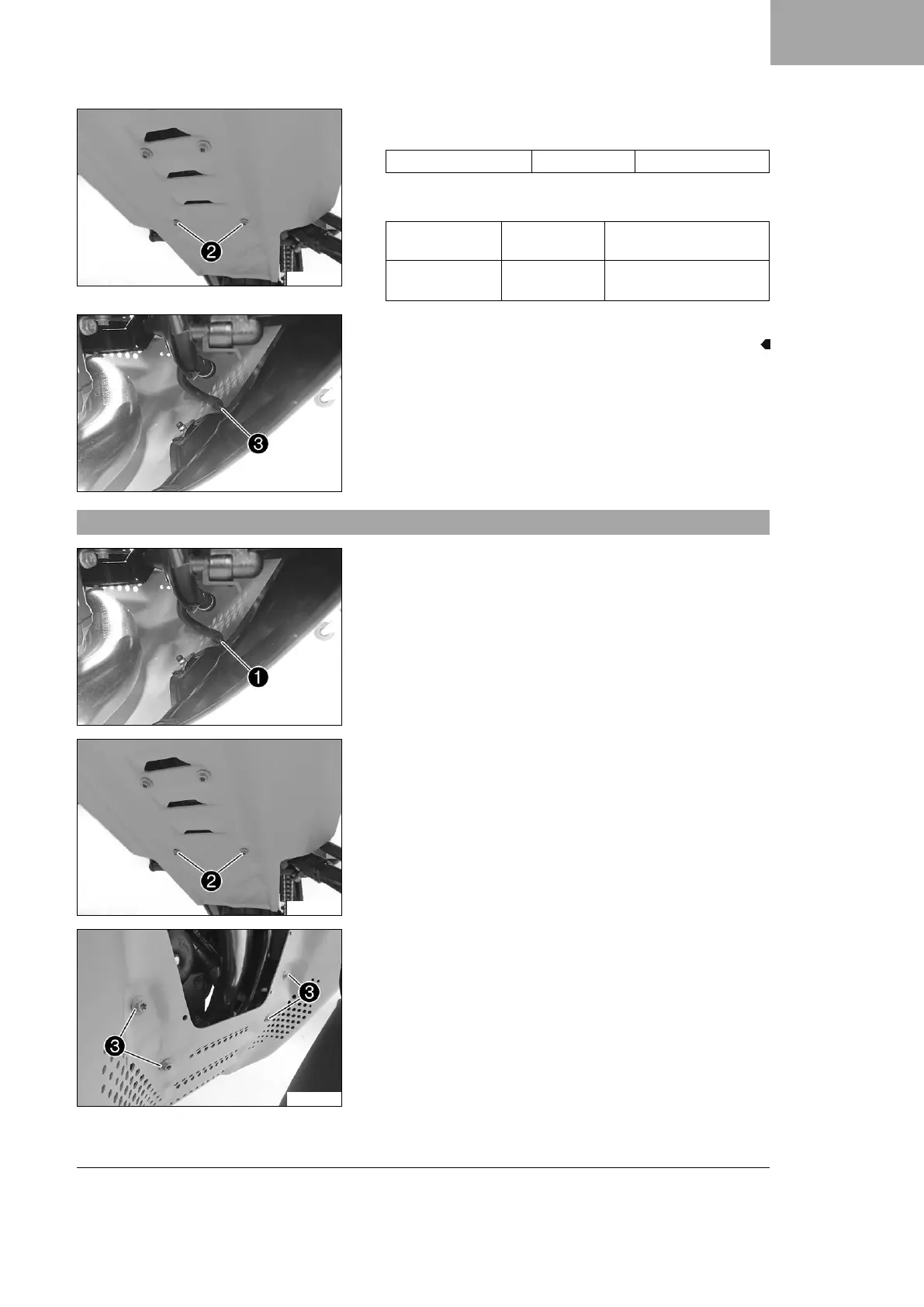

KTM 890 ADVENTURE R 2023 - 3.24 Removing the engine guard

WORK 3
21
Z03268-11
–
Mount screws
2
, but do not tighten yet.
Guideline
Screw, engine guard M6x8 8 Nm (5.9 lbf ft)
– Tighten all the screws of the engine guard.
Guideline
Screw, engine
guard
M6x8 8 Nm (5.9 lbf ft)
Screw, engine
guard
M6x10 10 Nm (7.4 lbf ft)
Loctite
®
243™
Z03267-11
–
Attach tube
3
to the angle piece.
3.24 Removing the engine guard
Z03267-10
–
Pull out hose
1
from the angle piece.
Z03268-10
–
Remove screws
2
.
Z03269-10
–
Remove screws
3
.
