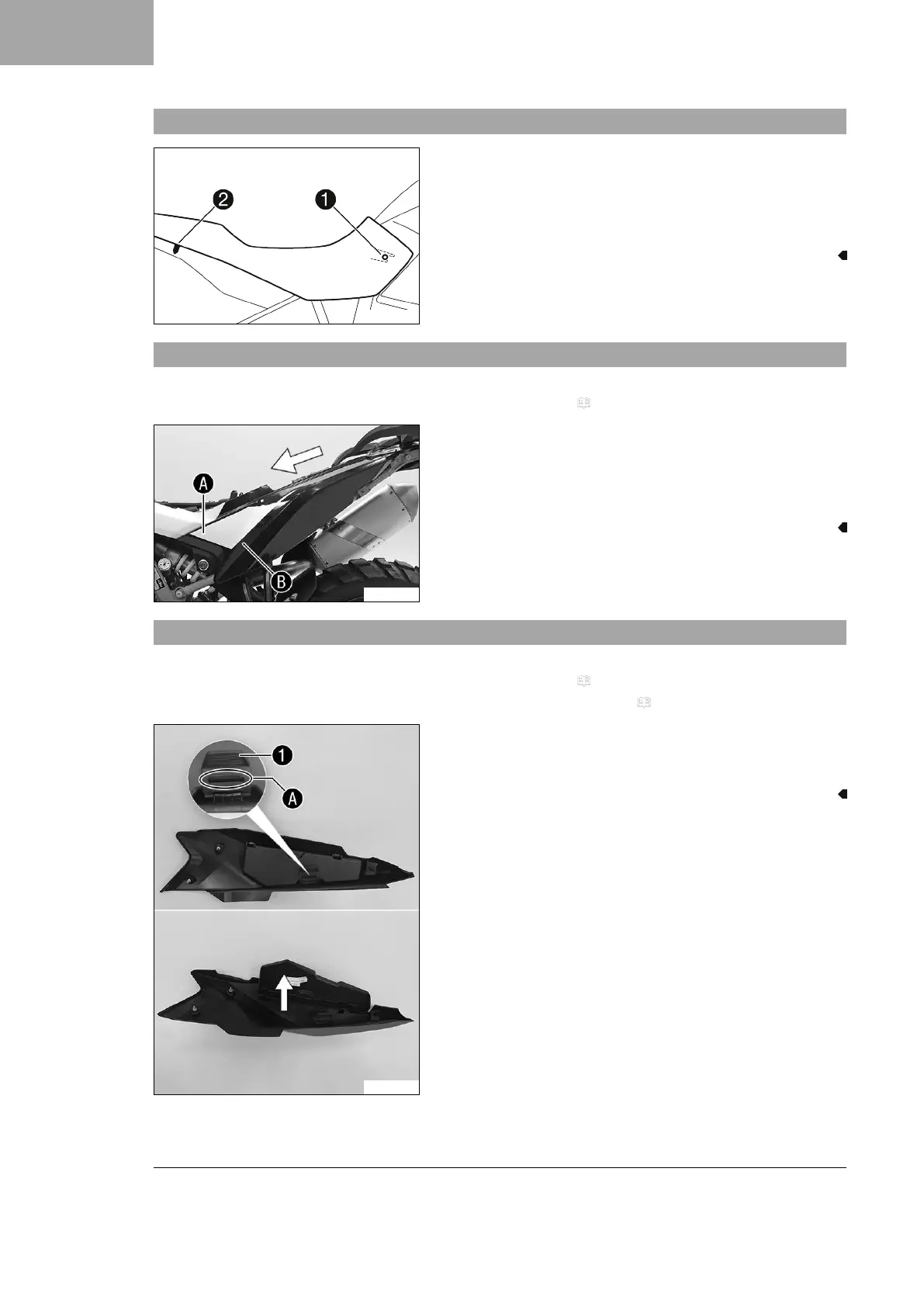

3.3 Mounting the seat
401677-10
–
Hook holding lug
1
of the seat onto the fuel tank, lower the
rear and push it forward.
–
Insert locking pin
2
into the lock housing and push down the
rear of the seat until the locking pin engages with a click.
– Check that the seat is correctly mounted.
3.4 Removing the left side cover
Preparatory work
– Remove the seat. ( p. 9)
F03293-10
Main work
– Remove left side cover from the rubber bushings in the
areas
A
and
B
.
– Pull off the left side cover sideways and remove it toward the
front.
3.5 Opening the storage compartment on the left
Preparatory work
– Remove the seat. ( p. 9)
– Remove the left side cover. ( p. 10)
F03285-10
Main work
–
Lift the elastic fastener
1
and detach in area
A
.
– Open storage compartment.
