KTM 890 ADVENTURE R 2023 - 3.19 Installing the windshield; 3.20 Removing the windshield; 3.21 Checking the headlight setting

WORK 3
19

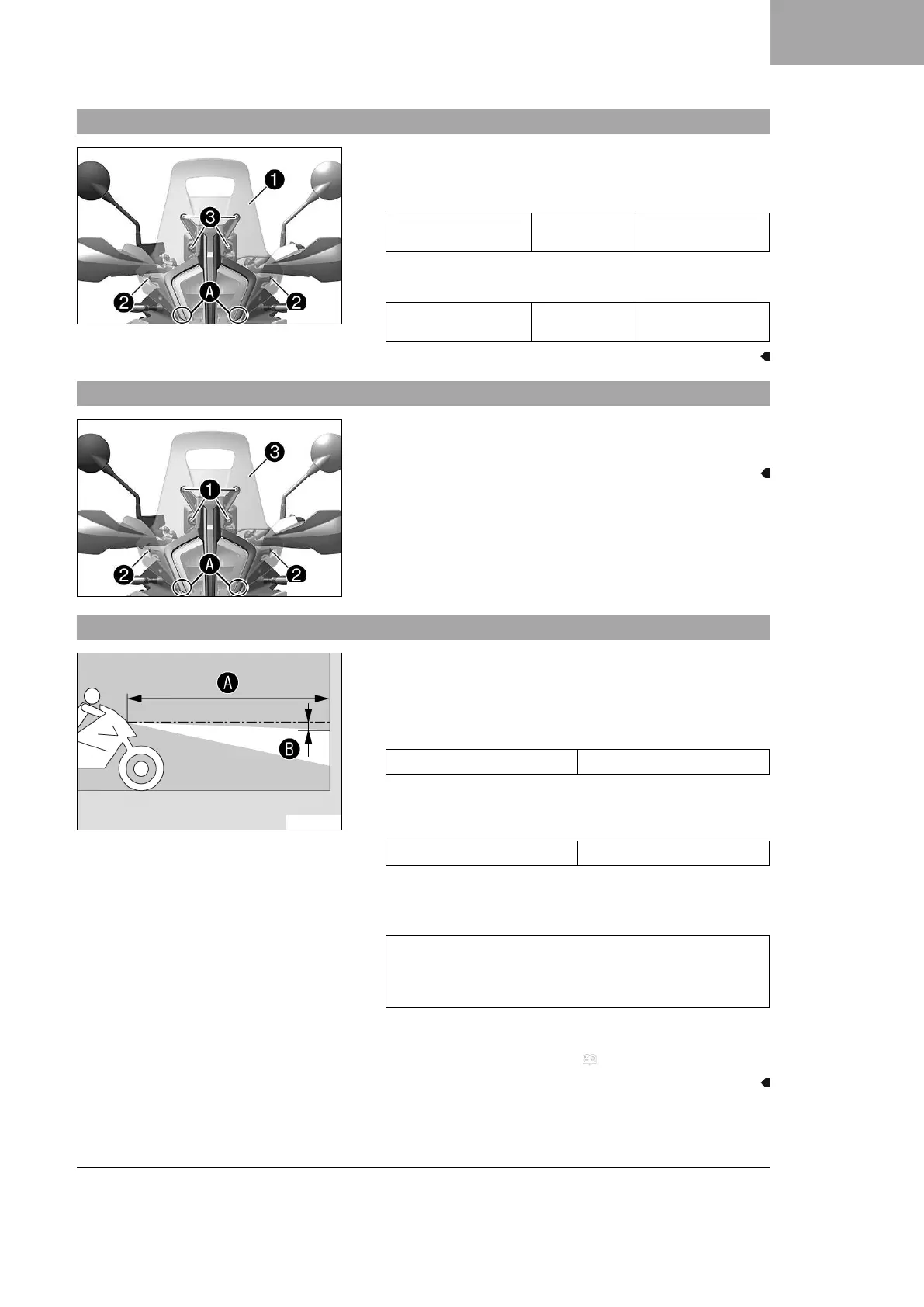

3.19 Installing the windshield
Z03266-11
–
Hook windshield
1
into area
A
.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Mount and tighten screws
3
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
3.20 Removing the windshield
Z03266-10
–
Remove screws
1
.
–
Remove screws
2
and detach windshield
3
in area
A
.
3.21 Checking the headlight setting
400726-10
– Park the vehicle on a horizontal surface in front of a light-
colored wall and make a mark at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle upright at distance
A
from the wall and
switch on the low beam.
Guideline
Distance
A
5 m (16 ft)
– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 20)
