3 WORK
20

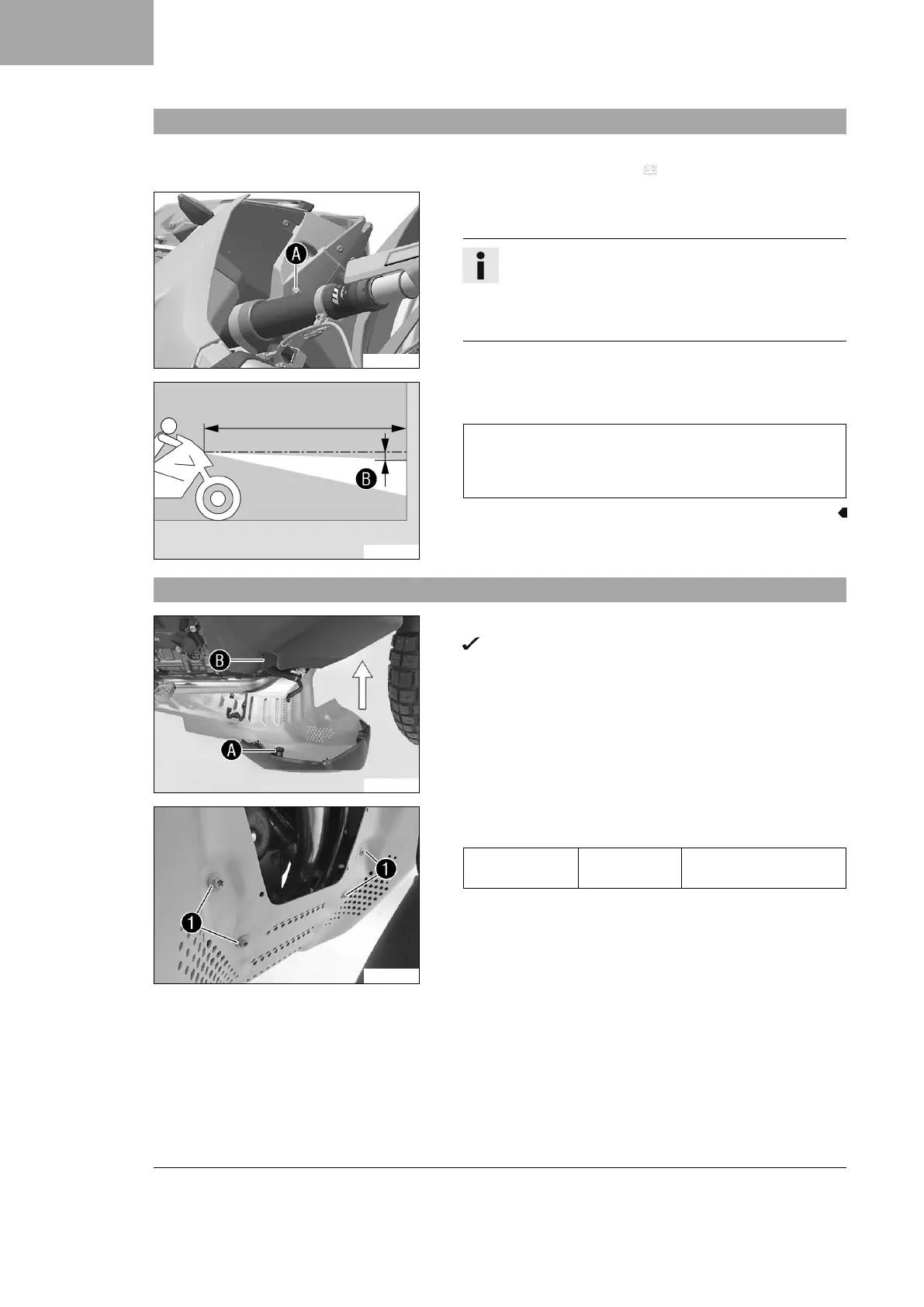

3.22 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 19)
G05949-12
Main work
–
Turn adjusting screw
A
to adjust the headlight range.
Info
Turn clockwise to reduce the headlight range; turn
counterclockwise to increase the headlight range.
If you have a payload, you may have to correct the
headlight range.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger, if
applicable.
3.23 Installing the engine guard
Z03271-10
– Position the engine guard.
Damping rubbers
A
engage in cut-outs
B
on both
sides.
Z03269-11
–
Mount screws
1
, but do not tighten yet.
Guideline
Screw, engine
guard
M6x10 10 Nm (7.4 lbf ft)
Loctite
®
243™
